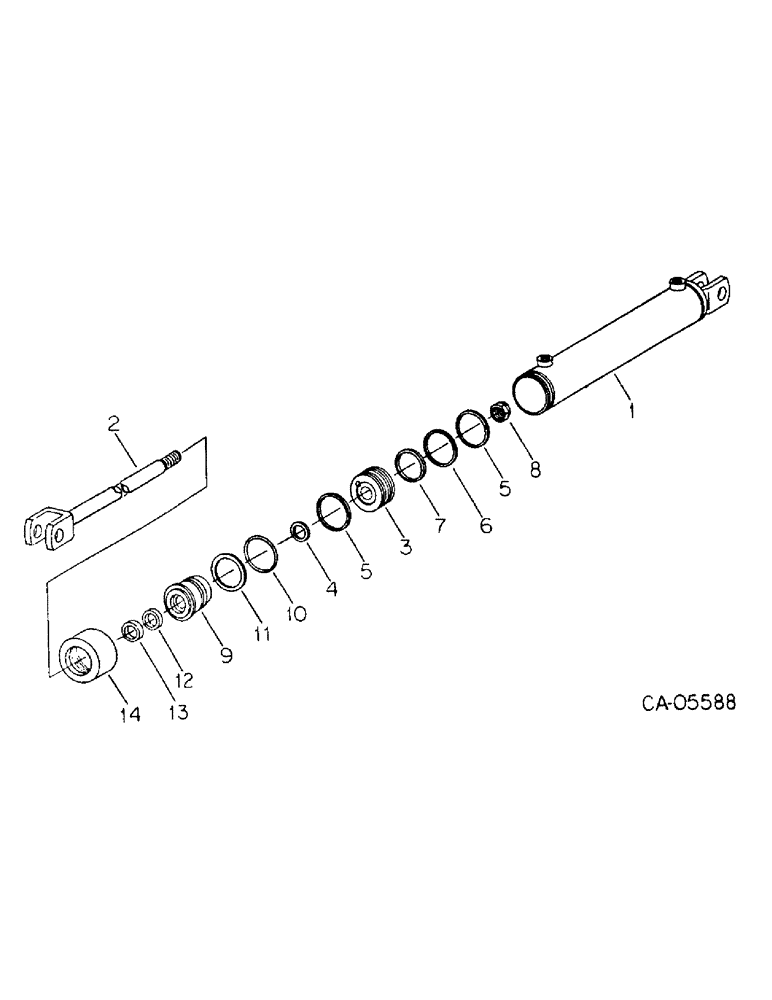

Запчасти Case IH 4786 (10-12) - HYDRAULICS, POWER STEERING CYLINDER IH (07) - HYDRAULICS

113837C91

CYLINDER

ASSY, steering

2шт.

1

BODY ASSY, hyd cyl, Order cylinder assy, 113837C91

1шт.

2

113845C1

ROD

ASSY, hyd cyl piston

1шт.

3

113840C1

PISTON

hyd cyl

1шт.

4

127826C1

WASHER

hyd cyl piston

1шт.

5

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

hyd cyl piston bearing

2шт.

6

545813R2

RING

hyd cyl piston seat outer

1шт.

7

25205R1

O-RING,Rect, 2.5" ID x 2.875" OD, Cl 5

hyd cyl piston seal inner

1шт.

8

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-NF phc p/t lock type 8

1шт.

9

113841C1

BUSHING

hyd cyl front

1шт.

10

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

hyd cyl frt head static

1шт.

11

113999C1

WASHER

frt head static o-ring back-up

1шт.

12

119203C1

SEAL

SEAL, hyd cyl piston rod

1шт.

13

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER, hyd cyl piston rod

1шт.

14

387375R1

RETAINER

RING, hyd cyl front head retaining

1шт.

72843C91

PACKAGE

KIT, hyd cyl service, Consists of ref. nos. 5, 6, 7, 10, 11, 12 & 13

1шт.
