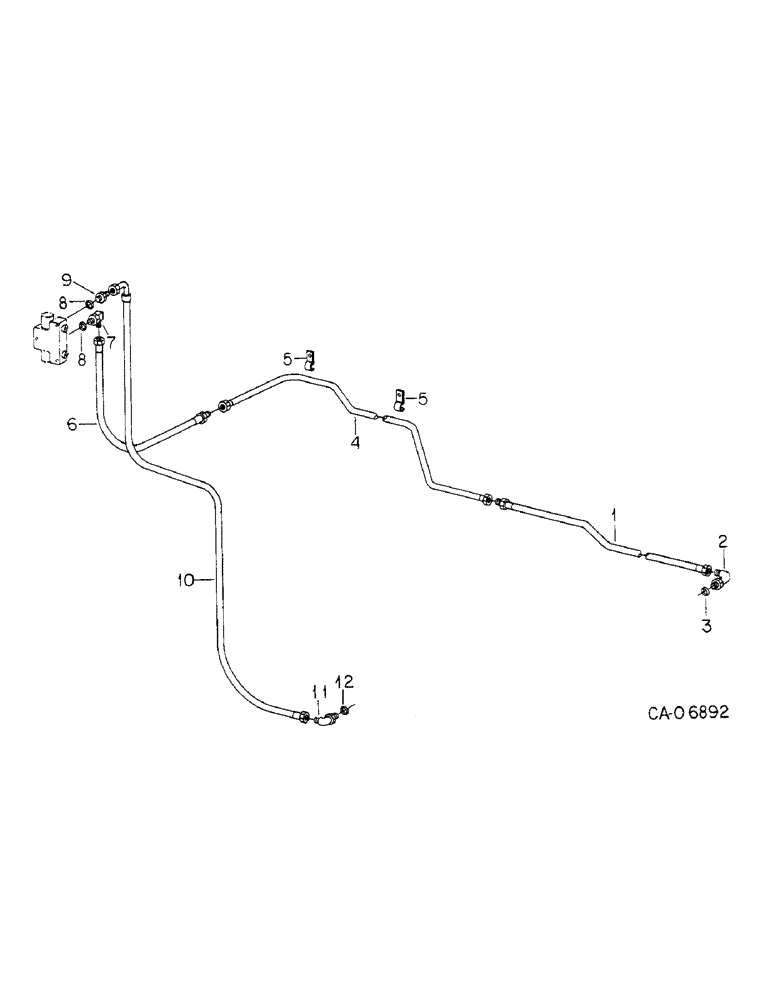

Запчасти Case IH 4786 (10-08) - HYDRAULICS, VALVE SUPPLY (07) - HYDRAULICS

1

116643C2

HOSE

ASSY, pump to aux valve supply tube

1шт.

2

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

4

134654C2

TUBE

ASSY, aux valve supply

1шт.

5

632703R1

CLAMP

CLIP, aux valve supply

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

1шт.

6

116644C2

HOSE ASSY.

HOSE ASSY, tube to aux valve

1шт.

1257945C1

STRAP, tie

1шт.

7

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, 1-1/16-12 37 deg hyd flared tube adj str thd 90 deg reducer

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

9

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

10

69406C1

HOSE

ASSY, aux valve to frt axle side cover bottom port

1шт.

11

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

12

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.
