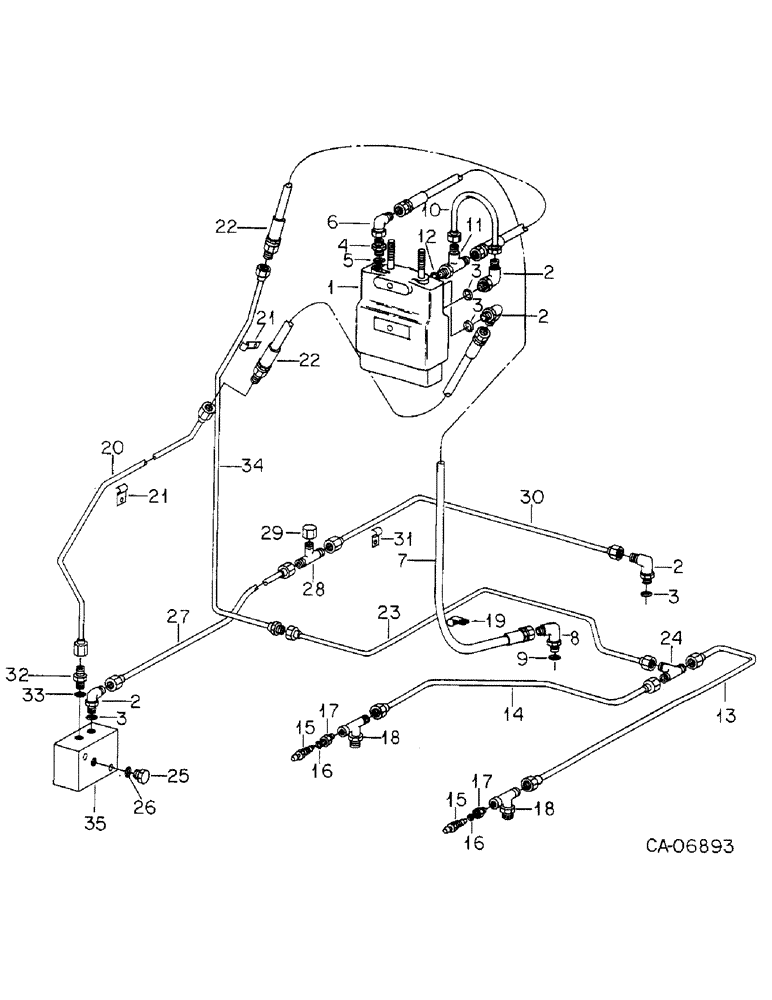

Запчасти Case IH 4786 (10-04) - HYDRAULICS, HYDRAULIC BRAKE CONNECTIONS (07) - HYDRAULICS

1

72807C93

VALVE

PACKAGE, hyd brake valve, Also required orifice plate 140720C1, For list of serviceable parts see power brake valve this group

1шт.

384501R1

PLATE

orifice, Reqd for use w/hyd brake valve package 72807C93

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 deg brake supply to valve

4шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

4

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, reducer drain 1/2 to 3/8 tube

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

6

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 37 deg hyd tube drain swivel

1шт.

7

141817C1

HOSE

ASSY, drain to front axle

1шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

brake drain 90 deg

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.50 OD tube

1шт.

10

134575C1

TUBE ASSY.,0.375" OD

TUBE ASSY, brake valve junction

1шт.

11

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

90 deg brake supply from valve

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

13

138703C1

TUBE

ASSY, brake, LH

1шт.

14

138702C1

TUBE

ASSY, brake, RH

1шт.

15

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed, Wagner or Delco

2шт.

15

3068777R1

SCREW

brake bleed, Girling Ltd

2шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

17

397338R1

CONNECTOR, ELEC

CONNECTOR, bleeder valve

2шт.

18

70120C2

TEE

90 deg brake bleed

2шт.

19

138769C1

CLIP

hyd line

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

2шт.

20

134763C2

TUBE ASSY.

TUBE ASSY, brake reg valve to cyl hose

1шт.

21

134845C1

CLAMP

3/8 OD tube

2шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

2шт.

22

397704R1

FLEXIBLE HOSE

HOSE ASSY, brake, Serial Range: supply-valve

2шт.

23

138798C1

TUBE

ASSY, master cyl to brake tee, Lower

1шт.

24

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

90 deg brake supply

1шт.

25

9410358

PLUG

9/16-18 str thd o-ring boss

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

27

134765C1

TUBE

ASSY, regulator valve to drain tee

1шт.

28

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

90 deg brake drain

1шт.

29

9403371

CAP,37 Degree, 9/16"-18

drain tee

1шт.

30

134766C1

TUBE

ASSY, drain tee to front axle

1шт.

31

134789C1

CLAMP

3/8 OD tube

2шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

2шт.

32

527357R1

LOCK VALVE

VALVE ASSY, brake check

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

34

134776C1

TUBE ASSY.

TUBE ASSY, master cyl to brake tee, Upper

1шт.

35

128115C91

VALVE

ASSY, regulator, For components, See list of parts under details of regulator valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
