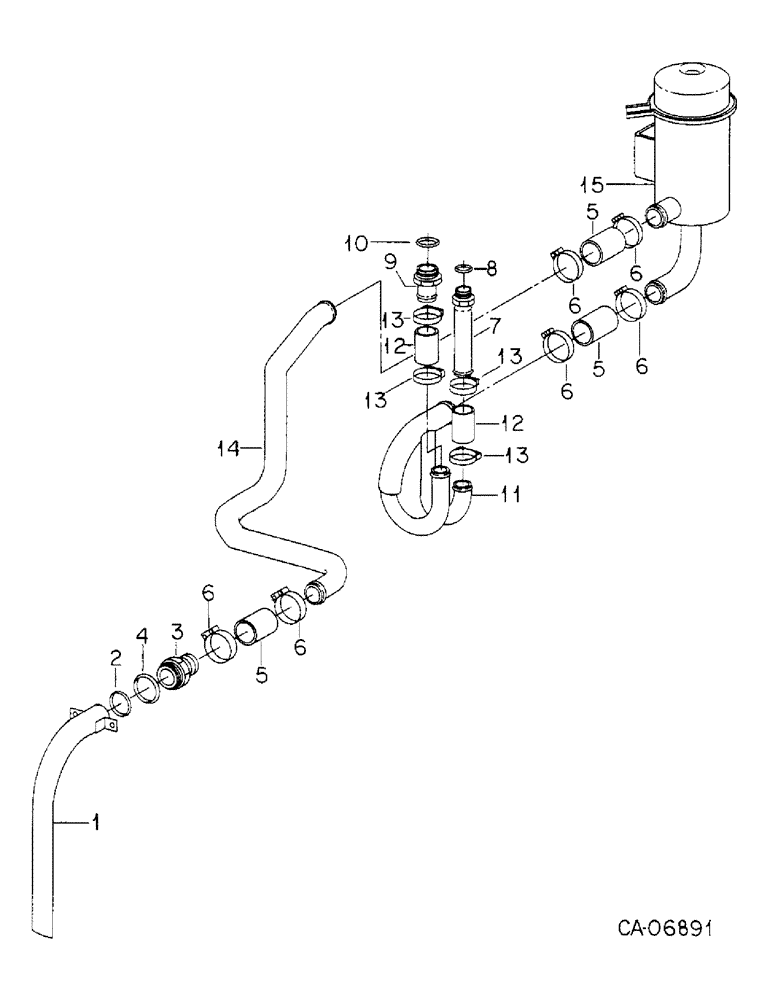

Запчасти Case IH 4786 (10-01) - HYDRAULICS, HYDRAULIC FILTER AND SUCTION (07) - HYDRAULICS

1

67894C1

TUBE ASSY, frt drive axle oil suction 17.75" Length

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 bevel washer

2шт.

2

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8

1шт.

3

69388C1

ADAPTER

axle to hyd filter

1шт.

4

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8

1шт.

5

134790C1

TUBE,4" Length

HOSE, suction tube

3шт.

6

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose, Replaces 317595R1 or 184368H1

6шт.

7

134779C1

ADAPTER

ASSY, 1-5/16 thd to 1-1/2 ID hose pump front port

1шт.

8

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.0 OD tube

1шт.

9

134780C1

ADAPTER

1-7/8 thd to 1-1/2 ID hose, Pump rear port

1шт.

10

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 OD tube

1шт.

11

138645C1

TUBE ASSY.

MANIFOLD ASSY, hyd

1шт.

12

138707C1

HOSE,1.50" ID x 4.00"

manifold to pump

2шт.

13

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.12 t-bolt hose, Replaces 21604R1 or 327257R91

4шт.

14

116839C1

HYD TUBE

TUBE, hyd filter supply

1шт.

15

116864C91

FILTER

ASSY, hydraulic, Refer to hydraulic oil filter, for list of components

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.
