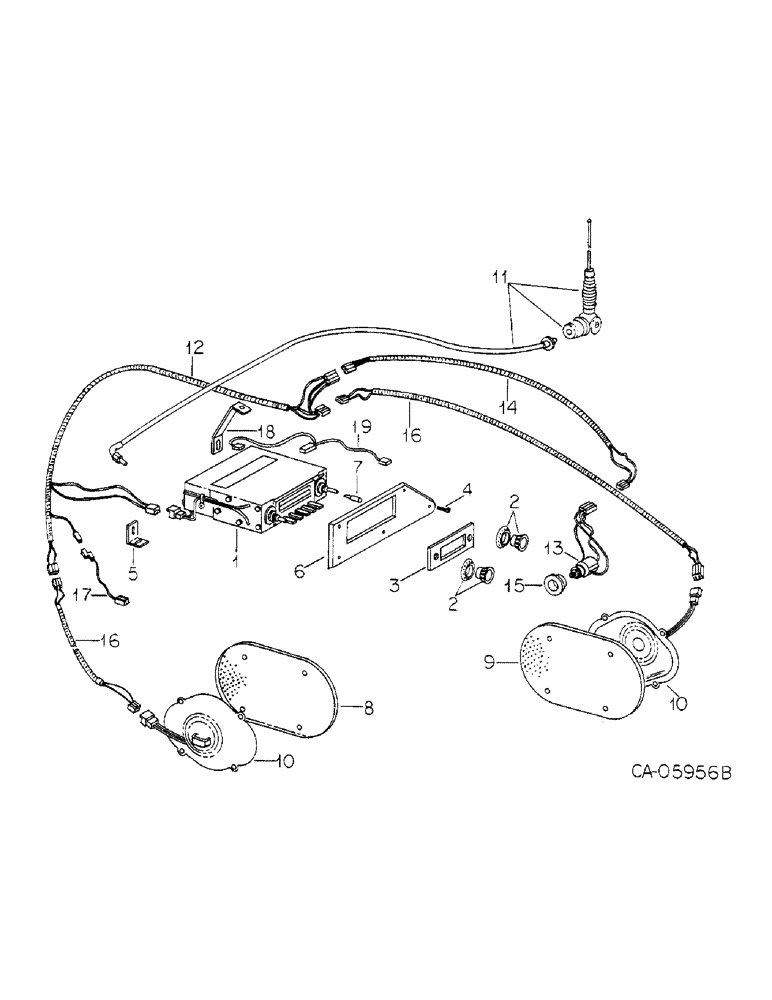

Запчасти Case IH 4786 (08-15) - ELECTRICAL, RADIO AND TAPE PLAYER (06) - ELECTRICAL

111640C92

RADIO

PARTS ACCESSORY, radio AM w/fader control, Consists of ref nos. 1 through 13 and instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, radio AM/FM monaural w/fader control, Consists of ref nos. 1 through 13 and instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, radio AM/FM multiplex w/8 track tape player, Consists of ref nos. 1 through 13 and instructions

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack cable, Consists of ref nos 13, 14 & 15

1шт.

143186C92

RADIO

PARTS ACCESSORY, radio completing, Consists of ref. nos. 8, 9, 17 & 18 plus

1шт.

187626C2

ANGLE

1шт.

187625C1

COVER ASSY

COVER

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.

118278C1

KIT

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

radio

1шт.

1

111643C1

RADIO

AM w/fader control, Optional w/111644C1

1шт.

1

111644C1

RADIO, AM w/fader control, Optional w/111643C1

1шт.

1

111645C1

RADIO

AM/FM Monaural w/fader control, Optional w/111646C1

1шт.

1

111646C1

RADIO, AM/FM Monaural w/fader control, Optional w/111645C1

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape player

1шт.

1

146533C3

RADIO

AM/FM w/cassette tape player, Start Serial: 2501

1шт.

142919C1

NUT

large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142921C1

NUT

small shaft, all radios, Except 111644C1 & 111646C1

2шт.

142921C1

NUT

small shaft, radio 146533C1

6шт.

328505C1

NUT

mounting

2шт.

25056R1

WASHER

.531 x .688 x .054 pln, Use w/radios 111644C1 and 111646C1

2шт.

2

117993C1

PACKAGE

KIT, radio control knobs, Use on all radios, Except 111644C1 & 111646C1

1шт.

2

385531C1

KNOB

tone & balance, Use w/radios 111644C1 and 111646C1

2шт.

2

146540C1

KNOB

ASSY, tuning & volume, Use on radio 146533C1

2шт.

2

146542C1

KNOB

tone & balance, Use on radio 146533C1

2шт.

3

117992C1

PLATE

trim

1шт.

3

118441C1

LARGE PLATE

PLATE, trim, Use on radio 146533C1

1шт.

4

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

5

117818C1

ANGLE

radio mounting

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

118376C1

PANEL

radio trim, Use on all radios, Except 111644C1 & 111646C1

1шт.

6

142955C1

PANEL

radio, Use w/radios 111644C1 and 111646C1

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener

1шт.

8

111402C2

PANEL

speaker trim LH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic 5/8 hole

1шт.

8

118258C1

PANEL

GRILLE, speaker, Used w/parts accessory 143186C92 and radio 146533C1

1шт.

26281R1

SCREW

no. 8 x 3/4 phc p/hdcr mach

4шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

4шт.

9

111403C1

PANEL

speaker trim RH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

9

118258C1

PANEL

GRILLE, speaker, Used w/parts accessory 143186C92 and radio 146533C1

1шт.

26281R1

SCREW

no. 8 x 3/4 phc p/hdcr mach

4шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

4шт.

10

70727C3

SPEAKER

4 x 8, 8 OHM

2шт.

10

142956C1

SPEAKER

4 x 8, 4 OHM

2шт.

11

111237C1

ANTENNA

ASSY

1шт.

12

118440C2

HARNESS

ASSY, radio and speaker, Replaces 111431C2

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker

1шт.

126049

FUSE,5 Amp, Type 1AG

1AG 5 amperes

1шт.

13

70737C1

CABLE ASSY, stereo headphone connecting

1шт.

14

11835C1

CABLE ASSY, earphone jack extension

1шт.

15

118106C1

WASHER

cup trim

1шт.

16

NOT USED

1шт.

17

118070C1

CABLE

ASSY, ROPS canopy power

1шт.

18

118120C1

SUPPORT

radio mtg, Bracket

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc self-tap

1шт.

19

146544C1

CABLE

ASSY, dome light to radio, Use on radio 146533C1

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo, Consists of

1шт.

146560C1

RADIO

1шт.

142919C1

NUT

1шт.

117992C1

PLATE

1шт.

142920C1

WASHER

1шт.

142921C1

NUT

1шт.

117993C1

PACKAGE

KIT

1шт.

118376C1

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

117995C1

PACKAGE

KIT

1шт.

111402C2

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

117730C1

PLUG

1шт.

142940C1

PLUG

1шт.

111403C1

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

142956C1

SPEAKER

2шт.

111237C1

ANTENNA

ASSY

1шт.

143177C1

HARNESS

ASSY

1шт.

445635

FUSE,3 Amp, Type 1AG

1шт.

117818C1

ANGLE

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

146559C91

PACKAGE

PARTS ACCESSORY, AM/FM push button cassette tape player, Consists of

1шт.

111648C1

RADIO

1шт.

142919C1

NUT

1шт.

117992C1

PLATE

1шт.

142920C1

WASHER

1шт.

142921C1

NUT

1шт.

117993C1

PACKAGE

KIT

1шт.

118376C1

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

117995C1

PACKAGE

KIT

1шт.

111402C2

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

117730C1

PLUG

1шт.

142940C1

PLUG

1шт.

111403C1

PANEL

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

142956C1

SPEAKER

2шт.

111237C1

ANTENNA

ASSY

1шт.

143177C1

HARNESS

ASSY

1шт.

445635

FUSE,3 Amp, Type 1AG

1шт.

117818C1

ANGLE

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
