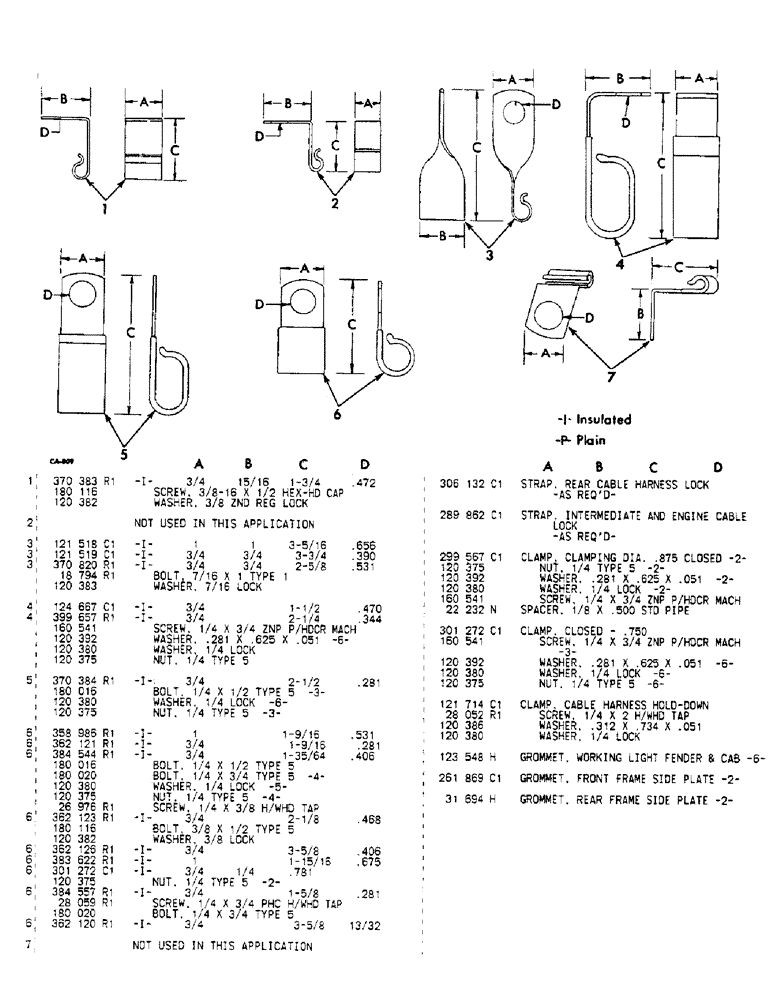

Запчасти Case IH 4786 (08-14) - ELECTRICAL, CLIPS, STRAPS, CLAMPS AND GROMMETS (06) - ELECTRICAL

1

370383R1

CLIP

INSULATED, 3/4, 15/16, 1-3/4, .472

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

SCREW, 3/8-16 x 1/2 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

121518C1

BOLT,Insul, 0.656" D x 3 5/16"

INSULATED, 1, 1, 3-5/16, .656

1шт.

3

121519C1

BOLT

INSULATED, 3/4, 3/4, 3-3/4, .390

1шт.

3

370820R1

CLIP

INSULATED, 3/4, 3/4, 2-5/8, .531

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

124667C1

BOLT

INSULATED, 3/4, 1-1/2, .470

1шт.

4

399657R1

CLIP

INSULATED, 3/4, 2-1/4, .344

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

5

370384R1

CLIP

INSULATED, 3/4, 2-1/2, .281

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

6

358986R1

CABLE CLIP

INSULATED, 1, 1-9/16, .531

1шт.

6

362121R1

CLIP

INSULATED, 3/4, 1-9/16, .281

1шт.

6

384544R1

INSULATED, 3/4, 1-35/64, .406

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

26976R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW, 1/4 x 3/8 h/whd tap

1шт.

6

362123R1

CLIP

INSULATED, 3/4, 2-1/8, .468

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

362126R1

CLIP

INSULATED, 3/4, 3-5/8, .406

1шт.

6

383622R1

CLIP

INSULATED, 1, 1-15/16, .675

1шт.

6

301272C1

CLAMP,3/4", Insul, 1/4" Bolt

INSULATED, 3/4, 1/4, .781

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

384557R1

CLIP

INSULATED, 3/4, 1-5/8, .281

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc h/whd tap

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

INSULATED, 3/4, 3-5/8, 13/32

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, rear cable harness lock

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, intermediate and engine cable lock

1шт.

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

clamping dia. .875 closed

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

1шт.

22232N

SPACER

1/8 x .500 std pipe

1шт.

301272C1

CLAMP,3/4", Insul, 1/4" Bolt

closed, .750

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

3шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

121714C1

CLAMP

cable harness hold-down

1шт.

28052R1

SCREW, 1/4 x 2 h/whd tap

1шт.

NLS

NO LONGER SERVICED

.312 x .734 x .051

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

123548H

GROMMET

working light fender & cab

6шт.

261869C1

GROMMET, front frame side plate

2шт.

31694H

GROMMET

rear frame side plate

2шт.
