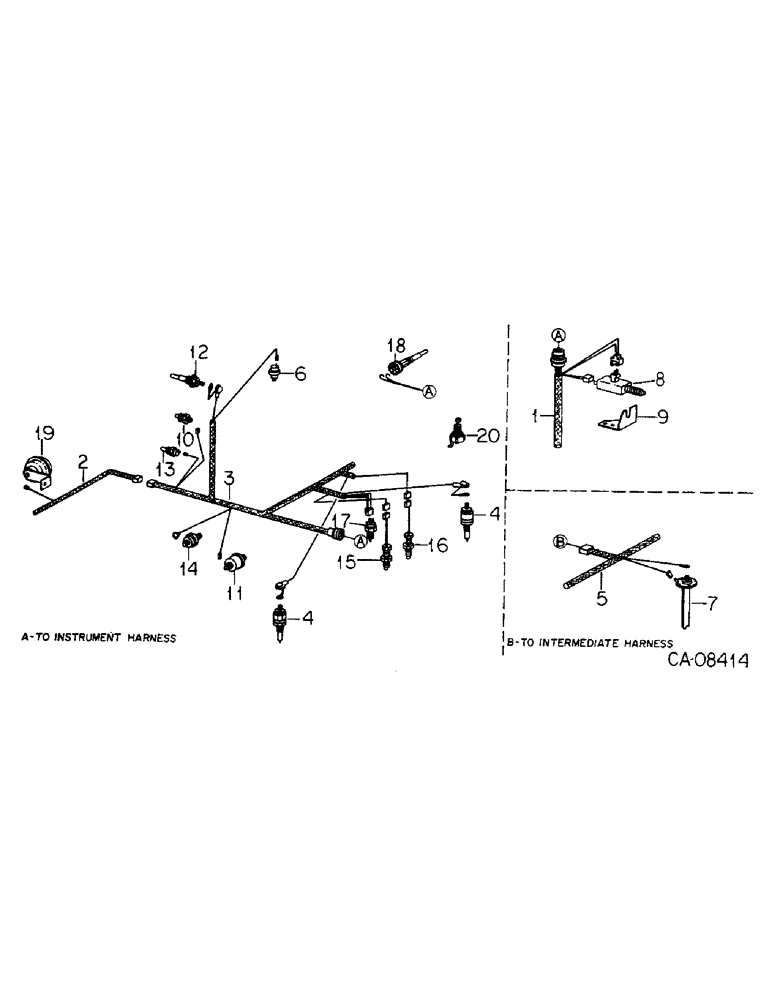

Запчасти Case IH 4786 (08-11) - ELECTRICAL, CHASSIS WIRING, SWITCHES AND RELATED PARTS (06) - ELECTRICAL

1

130971C1

HARNESS

ASSY, main power cable

1шт.

For service on this harness refer to electrical harness service kits under P/N 461835C1.

1шт.

2

121999C1

HARNESS

ASSY, vehicle front

1шт.

3

131014C1

HARNESS

ASSY, vehicle engine

1шт.

For service on this harness refer to electrical harness service kits under P/N 131501C19.

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

122000C1

HARNESS

ASSY, vehicle rear

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, air cleaner vacuum

1шт.

7

SENDER, fuel gauge, Refer to grp 12

1шт.

8

131107C1

SWITCH

ASSY, neutral starting

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-NF jam type 5

2шт.

9

141810C1

BRACKET

neutral start switch mtg

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

121756C2

SENSOR

SENDER, coolant temperature

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, coolant sender

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

11

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure sender

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

12

449791C1

SWITCH

ASSY, low coolant level, Probe

1шт.

121814C1

RETAINER

probe boot

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

13

130861C1

SWITCH

ASSY, coolant hi-temp light

1шт.

14

392249R92

SWITCH

engine oil pressure

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

15

130903C2

TRANSMITTER

tachometer-transducer-RPM

1шт.

16

130903C2

TRANSMITTER

speedometer-transducer

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 class 5

1шт.

17

107637C1

GAUGE ASSY.

SENDER, differential low oil level

1шт.

18

130896C2

ELECTRICAL GAUGE

GAGE, exhaust thermocouple

1шт.

19

9000239

HORN

ASSY, electric

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

20

NOT USED IN THIS APPLICATION

1шт.
