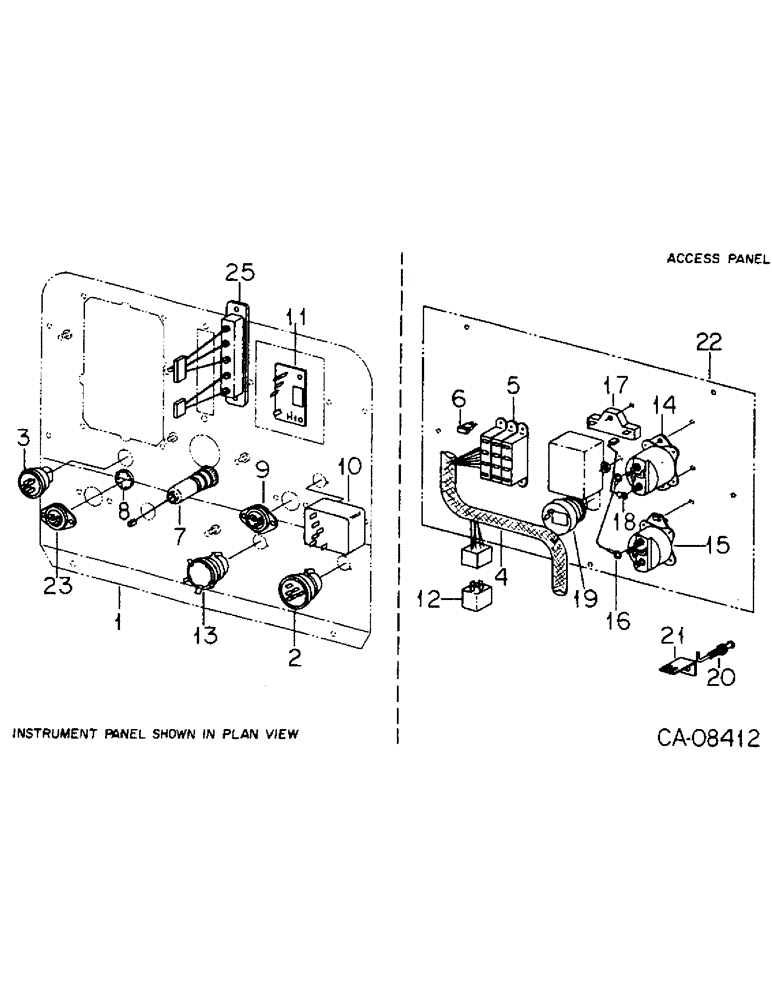

Запчасти Case IH 4786 (08-09) - ELECTRICAL, INSTRUMENT PANEL WIRING, SWITCHES AND RELATED PARTS (06) - ELECTRICAL

1

PANEL, instrument, Refer to group 11

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, basic lighting

1шт.

3

107682C1

SWITCH

ASSY, key start

1шт.

365502R1

NUT

switch mounting

2шт.

375431R1

LOCK WASHER

switch mounting

1шт.

131313C1

KEY, IGNITION

switch

1шт.

4

130970C1

HARNESS

ASSY, instruments main

1шт.

For service on this harness refer to electrcial harness service kits under P/N 131500C91.

1шт.

28269R1

SCREW, no. 6 x 1/2 tap

4шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

159339

WASHER

no. 6 x 1/2 phc p/hdcr mach

2шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

5

BLOCK, fuse, Not serviced separately, Order instrument harness, 130970C1

1шт.

6

131224C1

FUSE

auto type ATC-20, yellow, basic lighting

1шт.

6

131224C1

FUSE

auto type ATC-20, yellow, auxiliary lights

1шт.

6

131225C1

FUSE

auto type ATC-25, white, blower motor

1шт.

6

131222C1

FUSE

auto type ATC-10, red, warning lights

1шт.

6

131220C1

FUSE

auto type ATC-5, tan, air conditioner compress or

1шт.

6

131220C1

FUSE

auto type ATC-5, tan, instruments

1шт.

6

131219C1

FUSE

auto type ATC-3, violet, dome light

1шт.

6

131219C1

FUSE

auto type ATC-3, violet, digital data gage

1шт.

6

131219C1

FUSE

auto type ATC-3, violet, low oil level sender

1шт.

6

131219C1

FUSE

auto type ATC-3, violet, early warning transmitter

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, ciger

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

#10NF x 1/2 znp p/hds mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

131066C91

SWITCH

ASSY, turn signal & flasher, Stewart Warner, or

1шт.

10

131209C91

SWITCH

ASSY, turn signal & flasher, Lucas

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle hardware

1шт.

11

130978C1

RECTIFIER

ASSY, indicator light

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

1шт.

12

3221235R2

RELAY

work light, Replaces 131181C1, or

1шт.

12

146461C1

RELAY

work light

1шт.

13

390748R93

SWITCH

ASSY, auxiliary lighting

1шт.

14

107655C1

SOLENOID SWITCH

SWITCH ASSY, cab power

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

15

121613C1

IGNITION SWITCH

SWITCH ASSY, cranking motor solenoid

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

16

392966R92

CABLE

ASSY, engine relay to cab relay

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

121628C1

BUZZER

electric audible, alarm

1шт.

20

162636R91

SWITCH

ASSY, park brake light, Replaces 391124C1

1шт.

21

356856C1

BRACKET

ASSY, park brake switch

1шт.

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10-16 x 3/8 phc p/hdcr tap

2шт.

22

PLATE, dash access, Refer to grp 11

1шт.

23

397940R93

SWITCH

ASSY, horn button

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

24

130972C1

TRANSMITTER

engine early warning

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

25

131182C91

LIGHT ASSY.

LIGHT ASSY, 5-way warning, Only serviceable items are

1шт.

131309C1

LIGHT ASSY.

LENS

1шт.

20627R1

BULB,C2F, #194, 14V

LAMP, type C-2F trade #194

5шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

131044

LOCK WASHER

Lock, #6

2шт.
