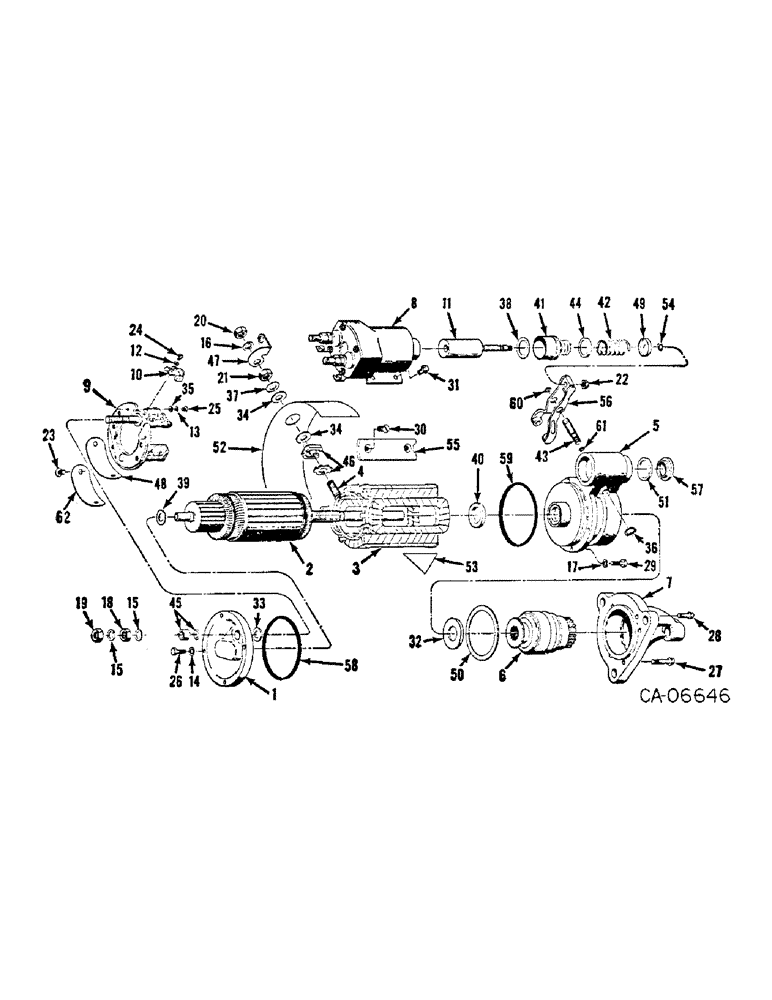

Запчасти Case IH 4786 (08-03) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 12 VOLT (06) - ELECTRICAL

1114074

MOTOR

ASSY, cranking, Order cranking motor, 121555C91

1шт.

104214A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104214A1C

CORE-STARTER

Return number

1шт.

1

1951073

FRAME

ASSY, commutator end, Composed of

1шт.

826462

BUSHING

commutator end frame

1шт.

103893

PLUG

expansion

1шт.

453465

PLUG, pipe

1шт.

2

1961320

ARMATURE

1шт.

3

1949109

COIL

ASSY, field, Set of four

1шт.

453461

SCREW, brush lead attaching, For field coil

1шт.

4

1950561

STUD

terminal

1шт.

5

1951069

HOUSING

ASSY, lever, Composed of

1шт.

R15144

BUSHING

lever housing

1шт.

453465

PLUG, pipe

1шт.

1918047

SEAL

lever housing oil

1шт.

1916439

WICK

lever housing oil

1шт.

1945892

COLLAR, between lever housing & drive

1шт.

6

474555C1

DRIVE ASSY.

DRIVE ASSY, motor

1шт.

7

1949606

HOUSING

ASSY, drive, Composed of

1шт.

1945509

BUSHING

drive housing

1шт.

453465

PLUG, pipe, 11/32 in. diameter

1шт.

273713

SCREEN

PLUG, pipe, 1/4 in. diameter

1шт.

1916439

WICK

drive housing oil

1шт.

8

1119879

SWITCH

ASSY, solenoid

1шт.

8

1119879GV

SOLENOID

ASSY, solenoid

1шт.

9

1948515

FLANGE

PLATE ASSY, solenoid

1шт.

10

1906988

BRUSH, COMMUTATOR

BRUSH

8шт.

11

1948522

PLUNGER

switch

1шт.

12

453844

WASHER

brush lead attaching screw lock

8шт.

13

453844

WASHER

brush plate lock

3шт.

14

9421423

WASHER

end frame attaching screw lock

4шт.

15

9421427

WASHER

commutator end terminal stud lock

2шт.

16

9421427

WASHER

field terminal stud lock

1шт.

17

9421423

WASHER

lever housing attaching screw lock

5шт.

18

120238

JAM NUT,Jam, 1/2"-13, G5

commutator end terminal stud, 5/16 in. thick

1шт.

19

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Commutator end terminal stud, 7/16 in. thick 1/2"-13, G5

1шт.

20

120238

JAM NUT,Jam, 1/2"-13, G5

field terminal stud

1шт.

21

120238

JAM NUT,Jam, 1/2"-13, G5

field terminal stud

1шт.

22

9412305

NUT

plunger rod guide adjusting

1шт.

23

9414397

SCREW

brush cover plate attaching

2шт.

24

453418

LOCK SCREW

SCREW, brush lead attaching

8шт.

25

1847807

SCREW

& WASHER, brush plate attaching

3шт.

26

1914869

SCREW

commutator frame attaching

4шт.

27

1948536

CAPSCREW

SCREW, drive housing attaching long

5шт.

28

1948537

SCREW

drive housing attaching short

1шт.

29

1914869

SCREW

lever housing attaching

5шт.

30

1913960

SCREW

pole shoe

8шт.

31

1930611

LOCK SCREW

SCREW & WASHER, switch attaching

4шт.

32

1911644

WASHER

brake, Between lever housing and drive

1шт.

33

1861791

WASHER

field terminal stud insulating

1шт.

34

1922457

WASHER

field terminal stud insulating

1шт.

35

1913086

WASHER, brush plate attaching screw plain

3шт.

36

9415235

RING, SNAP

RING, lever shaft retainer snap

1шт.

37

1914647

WASHER

field terminal stud plain

1шт.

38

807736

WASHER

shift lever return spring retainer

1шт.

39

1905014

NO LONGER SERVICED

WASHER, commutator end space

1шт.

40

1936466

SPACER

WASHER, space, Between armature and lever housing

1шт.

41

801077

BOOT

plunger

1шт.

42

1948521

SPRING

shift lever return

1шт.

43

1948529

SHAFT

shift lever

1шт.

44

1948520

RETAINER

shift lever spring, 1-13/64 in. hole

1шт.

45

1851632

BUSHING

PACKAGE, commutator end terminal stud insulating

1шт.

46

1965472

PACKAGE

field terminal stud insulating

1шт.

47

1945468

ROD, CONNECTING

CONNECTOR, Serial Range: terminal-switch

1шт.

48

1948512

SEAL ASSY.

GASKET, brush cover plate

1шт.

49

1948526

RETAINER

shift lever spring, 13/32 in. hole

1шт.

50

1945476

GASKET

between lever & drive housing

1шт.

51

1964857

GASKET

lever housing plug

1шт.

52

1955990

INSULATOR

field coil, Commutator end

1шт.

53

1868835

INSULATOR

field coil, Drive end

2шт.

54

9415235

RING, SNAP

RING, shift lever return spring snap

1шт.

55

1934478

SHOE (ASSY)

SHOE, pole

4шт.

56

1945484

LEVER

shift

1шт.

1945891

O-RING, armature dampener

1шт.

57

1945356

PLUG

lever housing inspection

1шт.

58

1916272

O-RING

field frame seal, Commutator end

1шт.

59

1916272

O-RING

field frame seal, Drive end

1шт.

60

1921805

GASKET

O-RING, shift lever, 1/2 in. diameter

1шт.

61

1914373

O-RING

shift lever, 15/64 in. diameter

1шт.

62

1945478

LARGE PLATE

PLATE, brush cover

1шт.
