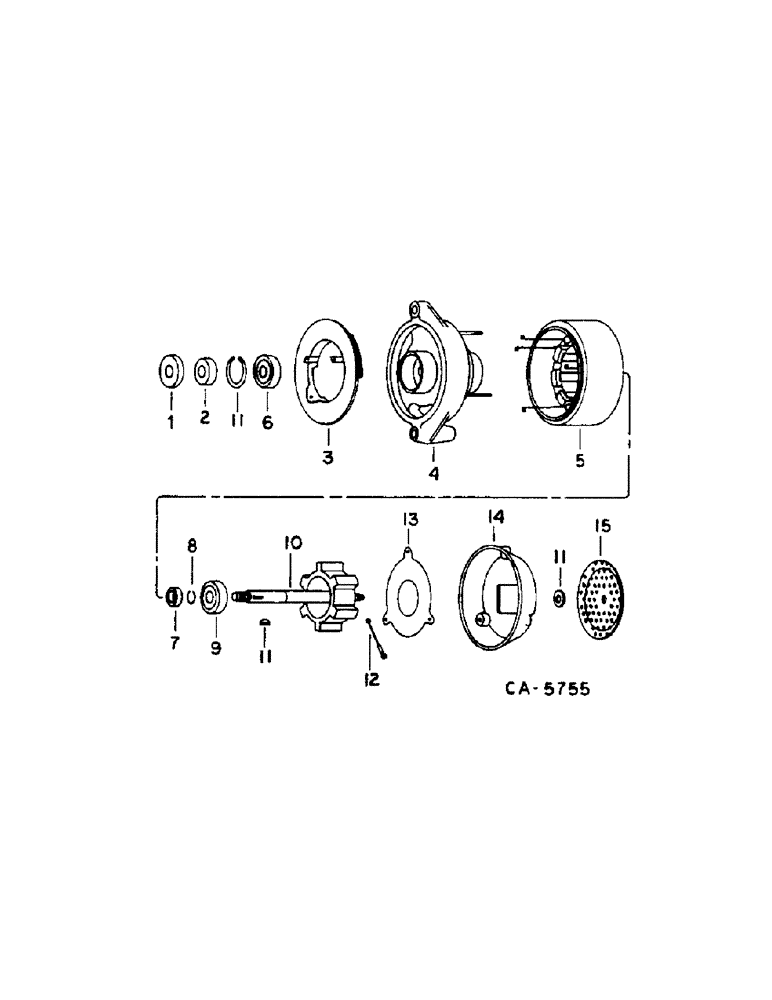

Запчасти Case IH 4786 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR (06) - ELECTRICAL

146474C91

GENERATOR

ALTERNATOR GENERATOR ASSY, Replaces 121676C91

1шт.

146474C91R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

146474C91C

CORE-ALTERNATOR

Return Number

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

1

130991C1

CUP WASHER

WASHER, front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER, front

1шт.

3

130994C1

AMPLIFIER ASSY.

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

130995C2

FRAME ASSY

FRAME ASSY, field winding and end

1шт.

5

130997C2

SHELL

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING, front

1шт.

7

130998C1

CUP WASHER

WASHER, retainer cup

1шт.

8

130993C1

RING

RING, retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, ring

1шт.

10

130999C1

ROTOR

ROTOR ASSY

1шт.

11

131005C2

KIT

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

131001C1

REGULATOR

REGULATOR ASSY, voltage

1шт.

14

131006C1

COVER

COVER, voltage regulator

1шт.

15

NOT USED THIS APPLICATION

1шт.
