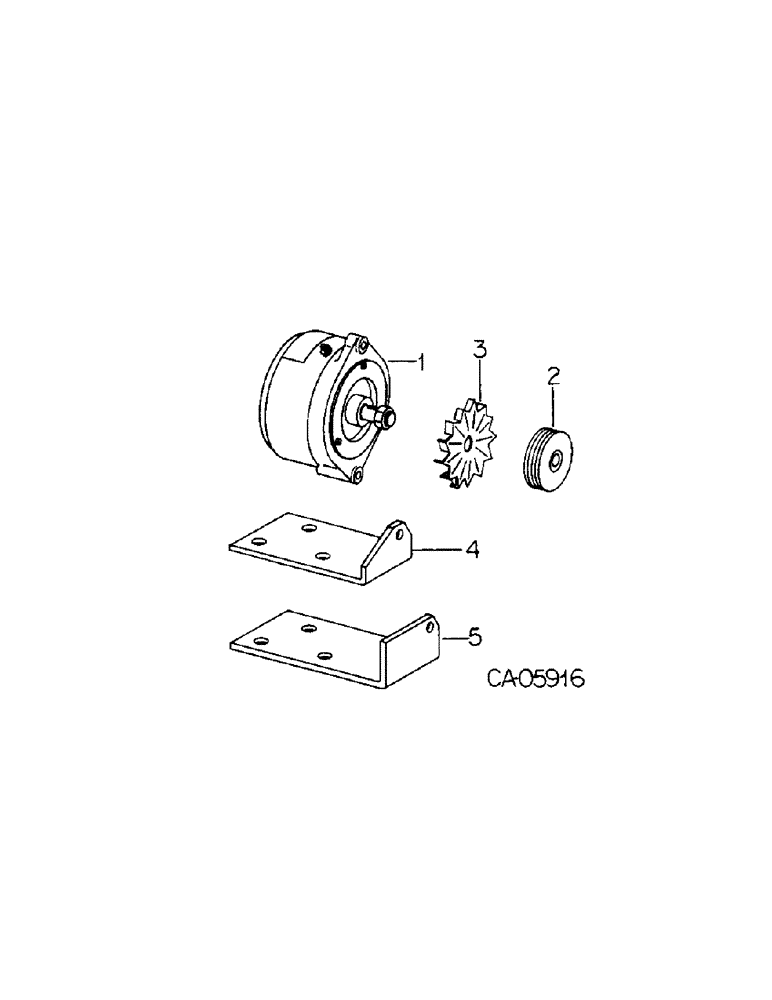

Запчасти Case IH 4786 (08-02[A]) - ELECTRICAL, ALTERNATOR-GENERATOR, PULLEY AND FAN (06) - ELECTRICAL

1

146474C91

GENERATOR

ALTERNATOR-GENERATOR ASSY, Replaces 121676C91, For component details refer to alternator-generator listing this group

1шт.

1

146474C91R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

146474C91C

CORE-ALTERNATOR

Return Number

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

30033R1

BOLT,Hex, M10 x 90mm, Cl 10.9

BOLT, M10 x 90 phc class 10.9

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10 cable to alternator "Batt" term

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock, Cable to alternator "Batt" term

1шт.

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

BOLT, M8 x 30 phc class 10.9 brace to alternator

1шт.

390305C1

WASHER

WASHER, 3/8 znd hardened

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

WASHER, .344 x 1.0 x .098 hardened brace to alternator

1шт.

2

1962505

PULLEY

PULLEY, alternator-generator double

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

109678C1

BRACKET

BRACKET, alternator mtg front

1шт.

5

109679C1

BRACKET

BRACKET, alternator mtg rear

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

3шт.

25545R1

WASHER

WASHER, 7/16 x .134 harden

3шт.
