(08-01) - ELECTRICAL, BATTERY BOX AND HOLD DOWN

Запчасти Case IH 4786 (08-01) - ELECTRICAL, BATTERY BOX AND HOLD DOWN (06) - ELECTRICAL

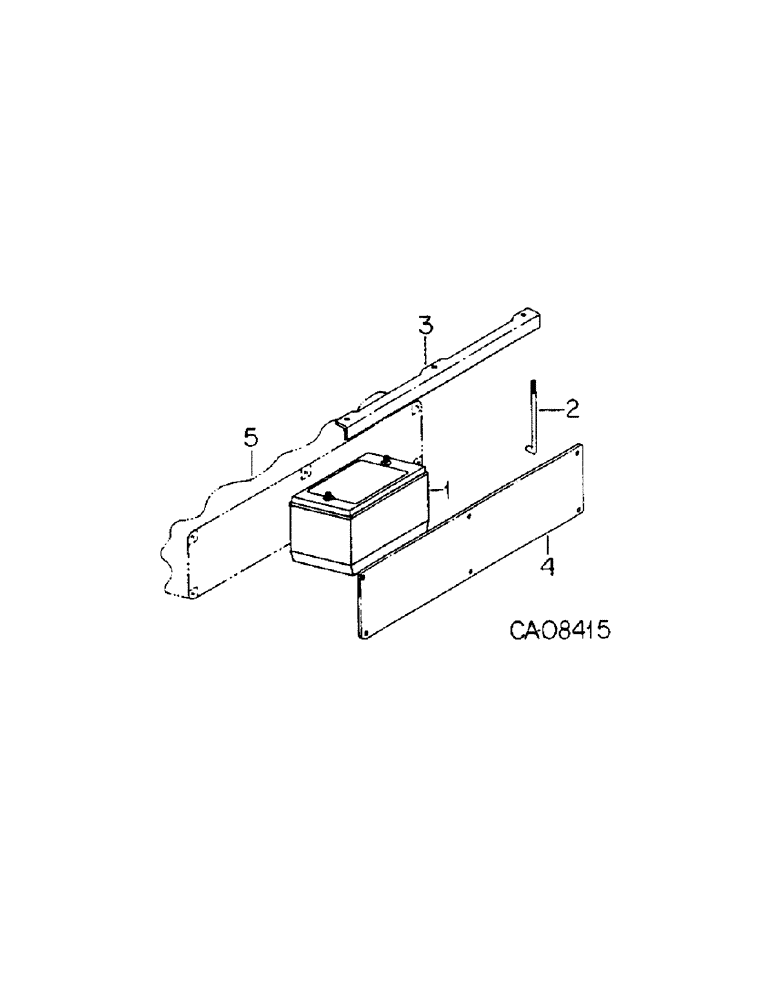

Схема запчастей Case IH 4786 - (08-01) - ELECTRICAL, BATTERY BOX AND HOLD DOWN (06) - ELECTRICAL
2
5
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BATTERY, maintenance free, Refer to battery and connections

3шт.

2

134796C1

ROD

battery hold down

5шт.

3

134798C1

ANGLE

battery hold down

2шт.

7500032

BUSHING

NUT, 5/16 wing

5шт.

4

134793C1

COVER

battery box

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

12шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

12шт.

5

BOX, battery, Part of front frame assy, Refer to front frame listing, Group 9

1шт.
