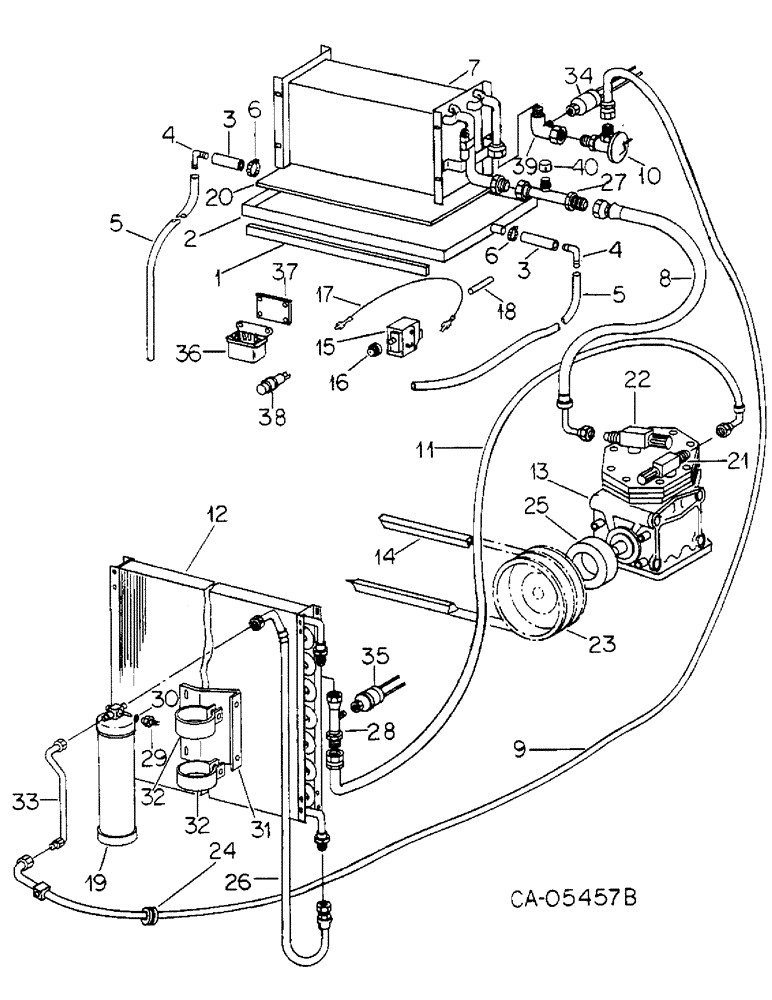

Запчасти Case IH 4786 (13-09) - CAB AND SUPERSTRUCTURE, AIR CONDITIONER ATTACHMENT AND CONNECTIONS (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
71750C1
STRIP
STRIP, elevator foam
1шт.
2
70175C3
PAN
PAN ASSY, condensation, Includes
1шт.
71751C1
SEALING STRIP
STRIP, condensation pan
1шт.
71753C2
FOAM
STRIP, evaporator seal foam
1шт.
3
TUBE, A/C to elbow drain, Use 12 inch from a roll marked 665181R1
2шт.
4
70176C1
ELBOW
ELBOW, drain tube
2шт.
5
132629C1
SPARE PART HOSE, drain
2шт.
109239C2
CHECK VALVE
VALVE, CHECK, Drain
1шт.
6
279025R91
HOSE CLAMP,#06, .44/.78 Type F Worm
HOSE CLAMP, #06, .44/.78 Type F Worm
2шт.
7
70178C91
RADIATOR
EVAPORATOR ASSY, Includes ref. no. 10
1шт.
146653C1
NUT
NUT, 5/16-18 clip
4шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
BOLT, 5/16 x 3/4 type 5
4шт.
8
110024C1
HOSE ASSY.
HOSE ASSY, Serial Range: evaporator-compressor
1шт.
9
134550C1
A/C HOSE
HOSE ASSY, Serial Range: evaporator-condenser
1шт.
10
70179C1
LOCK VALVE
VALVE ASSY, expansion
1шт.
11
118863C1
HOSE ASSY.
HOSE ASSY, Serial Range: conpressor-condenser
1шт.
12
118859C1
CONDENSER
CONDENSER ASSY
1шт.
443874
BRACKET
no. 10 x 1/2 znp h/hd mach
8шт.
13
118250C91
COMPRESSOR
COMPRESSOR ASSY, A/C w/screen, For components parts see detail under compressor listing
1шт.
13
1924006C2
REMAN-A/C COMPRESSOR
Reman For New PN 118250C91
1шт.
13
1924007C1
CORE-A/C COMPRESSOR
Return Number
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
BOLT, 3/8 x 1 type 5
5шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
BOLT, 3/8 x 1/2 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
14
131307C91
V-BELT,0.50" W
A/C Compressor Set
1шт.
15
109268C2
SWITCH
SWITCH, thermostat
1шт.
109311H
JAM NUT
NUT, 7/16-28 hex face
2шт.
16
111282C1
KNOB
KNOB, thermostat switch
1шт.
17
69452C1
CABLE ASSY.
CABLE ASSY, blower, Serial Range: switch-thermostat
1шт.
18
46893H
CONNECTION
CONNECTOR, two wire line
1шт.
19
134552C1
RECEIVER-DRYER,Air Conditioner
RECEIVER, drier assy, Consists of ref nos 29, 30, 31 and 32
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
NUT, 1/4"-20, G5
2шт.
134649C92
PACKAGE
SPARE PART PACKAGE, receiver dryer mounting
1шт.
20
71752C1
STRIP
STRIP, evaporator & heater top foam
1шт.
21
117827C91
LOCK VALVE
VALVE ASSY, service, Discharge, Only serviceable items are caps, 118185C1 & 118188C1
1шт.
22
117828C91
LOCK VALVE
VALVE ASSY, service, Suction, Only serviceable items are caps, 118185C1 & 118188C1
1шт.
23
134547C91
CLUTCH ASSEMBLY
CLUTCH ASSY, compressor
1шт.
24
NOT USED THIS APPLICATION
1шт.
25
70833C1
SEAL
RING, compressor seal and dust guard
1шт.
26
119009C1
HOSE
HOSE ASSY, Serial Range: receiver-condenser
1шт.
27
129257C1
ADAPTER,1" OD, 5" Length
SPARE PART TUBE ASSY, evap. suction
1шт.
28
129256C1
ADAPTER
ADAPTER, A/C high press switch
1шт.
29
134557C1
SWITCH
SWITCH, low pressure cutout
1шт.
30
355967R1
O-RING,0.364" ID x 0.003" Width
O-RING, .364 x .070
1шт.
31
134553C2
BRACKET
BRACKET, receiver drier
1шт.
32
1250238C1
CLAMP
CLAMP, receiver drier, Replaces 134554C1
2шт.
454065
SCREW,Hex Hd, #10-32 x 3/4"
SCREW, no. 10NF x 3/4 znd h/hd mach
2шт.
33
NOT USED IN THIS APPLICATION
1шт.
34
111267C3
SWITCH
SWITCH ASSY, lower pressure
1шт.
35
111266C1
SWITCH, A/C HIGH PRE
SWITCH ASSY, high pressure
1шт.
109311H
JAM NUT
NUT, 7/16-28 hex face
2шт.
36
437882C1
RELAY
RELAY, A/C lockout
1шт.
37
132564C1
BRACKET
SPARE PART BAR, A/C relay lockout, Bracket
1шт.
159920
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
SCREW, Cross Pan Hd, #10-24 x 1/2"
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
38
109369C91
LIGHT ASSY.
LIGHT ASSY, A/C indicator
1шт.
39
142129C1
ELBOW
ELBOW ASSY, Schrader valve
1шт.
40
142155C1
CAP, protective closure
1шт.
Выбрано товаров: 63
