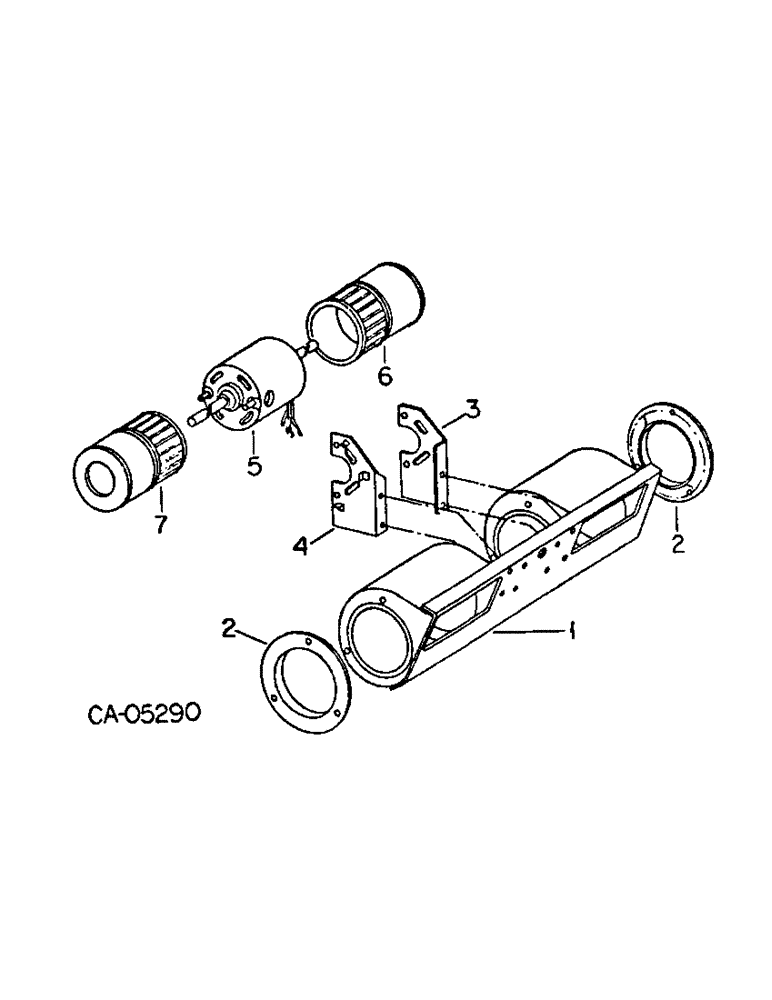

Запчасти Case IH 4786 (13-08) - CAB AND SUPERSTRUCTURE, BLOWER ASSY (05) - SUPERSTRUCTURE

134493C91

BLOWER

UNIT, heater, Optional w/68661C1

1шт.

1

HOUSING ASSY, Weldment, Not serviced separately order heater blower unit 134493C91

1шт.

2

65010C1

RETAINER

inlet

2шт.

3

134496C1

SUPPORT

motor

1шт.

4

539019R2

SUPPORT

BRACKET ASSY

1шт.

5

134494C1

MOTOR

heater blower

1шт.

6

134499C1

RIM

WHEEL, heater blower LH

1шт.

7

134498C1

RIM

WHEEL, heater blower RH

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4NF x 5/16 pln c/pt hdl/hs set

2шт.
