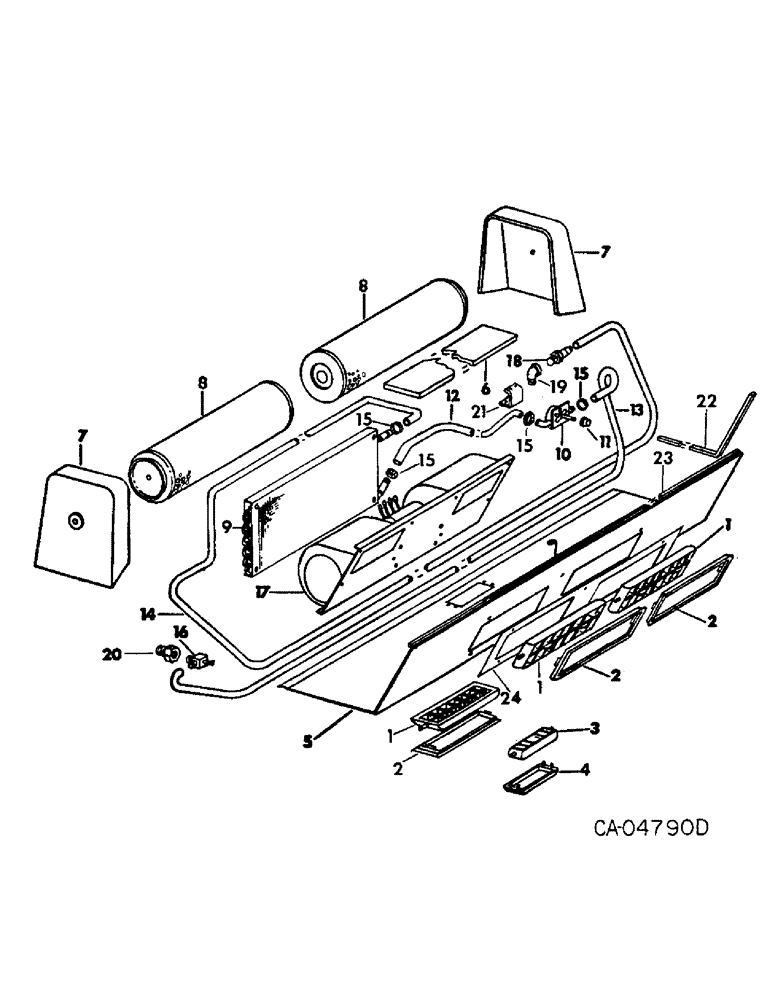

Запчасти Case IH 4786 (13-06) - CAB AND SUPERSTRUCTURE, HEATER AND CONNECTIONS (05) - SUPERSTRUCTURE

1

71408C1

VENTILATOR

LOUVER AND BEZEL ASSY

3шт.

142263C1

NUT

.197 push-on spring style

3шт.

2

BEZEL ASSY, Order louver and bezel assy, 71408C1

1шт.

3

71522C1

VENT

defogger and recirculating bezel

1шт.

142263C1

NUT

.197 push-on spring style

4шт.

4

BEZEL, defogger and recirculating, Order vent, 71522C1

1шт.

5

224967C91

COVER

ASSY, console, Replaces 129312C4 by also ordering grommet 131228HA, Includes ref nos 22, 23 and grommet, 131228HA

1шт.

131228HA

GROMMET, rubber

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc h/whd tap

4шт.

132849C1

NUT, 1/4-20 u-type speed

4шт.

71398C1

PIN

CLIP, hair pin

1шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

1шт.

6

SHEET, non-porous foam

1шт.

7

68655C3

DUCT

air intake

2шт.

137156

WING NUT,1/2"-13

NUT, 1/2 wing

4шт.

8

383711R94

AIR CLEANER,Round, 3.41" ID x 6.09" OD x 16" L

Filter, Air Intake

2шт.

9

134478C1

HEATER

CORE ASSY, heater

1шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

10

132557C1

LOCK VALVE

VALVE, heater control

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

2шт.

66299C1

NUT

10-32 cad hex

2шт.

11

111282C1

KNOB

heater control valve

1шт.

11

111282C1GV

KNOB

heater control valve

1шт.

12

HOSE, control valve to core heater, Furnish 12 inch hose from 50 ft. roll marked, 117724C1

1шт.

13

HOSE, engine to control valve heater, Furnish 150 inch from soft roll marked 117724C1

1шт.

14

HOSE, heater core to engine, Furnish 192 inch from 50 ft roll marked 117724C1

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

2шт.

15

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose

6шт.

16

301803R91

VALVE

engine to heater shut-off

2шт.

17

68661C1

BLOWER

heater, Optional w/134493C91

1шт.

17

134493C91

BLOWER

UNIT, heater, Optional w/68661C1, For components see detail of part under heater blower this group

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

4шт.

117829C1

NUT

J-type retainer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

120376

NUT,5/16"-18, G5

4шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

NOT USED IN THIS APPLICATION

1шт.

20

144046

REDUCER FITTING,1/2" NPT Male x 3/8" NPT Fem

REDUCER, 1/2-3/8 NPT pipe

2шт.

21

132563C1

BRACKET, heater control

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

2шт.

66299C1

NUT

10-32 cad hex

2шт.

22

GASKET, console cover side, Use 19.6 inch from a 4 ft length marked, 73211C1

2шт.

23

GASKET, console cover top, Use 26 inch from a 4 ft. length marked, 73211C1

1шт.

24

147081C1

LARGE PLATE

PLATE, louvers trim, Serial Range: -2501

1шт.

132718C1

FASTENER

plastic

6шт.

26664R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW, no. 8-18 x 1-1/2 phc p/hdcr tap

6шт.

137156

WING NUT,1/2"-13

NUT, 1/2 wing

4шт.
