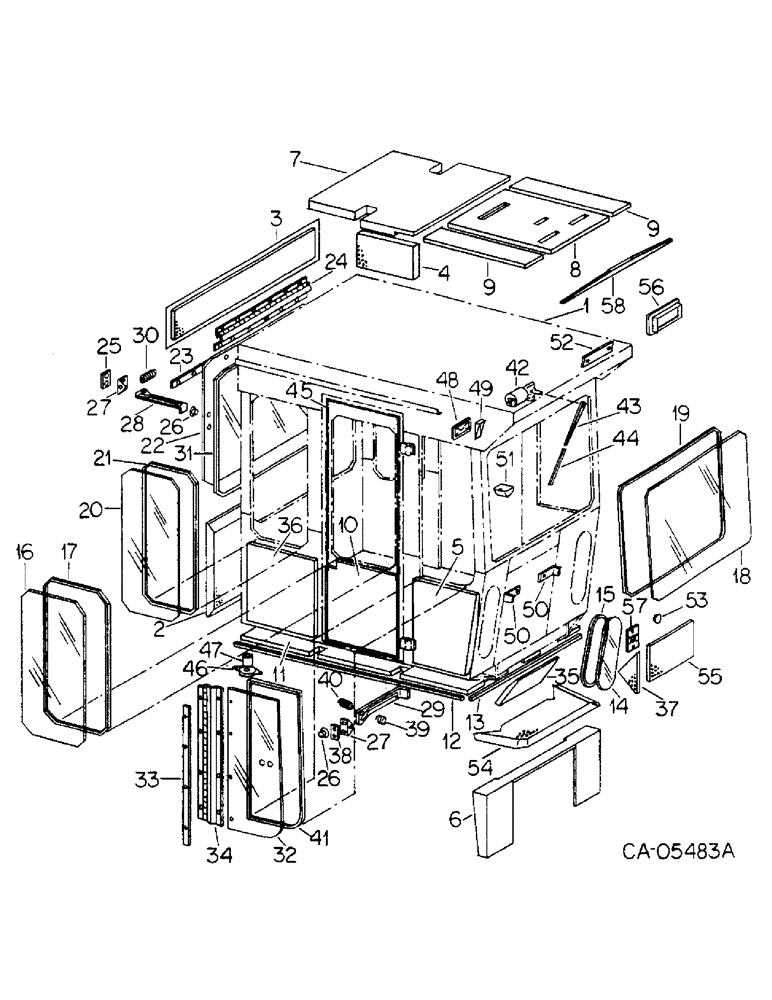

Запчасти Case IH 4786 (13-03) - CAB AND SUPERSTRUCTURE, CAB AND ACCESSORIES (05) - SUPERSTRUCTURE

1

138871C4

CAB

ASSY, For component details see cab assembly listing

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Brake pedal stop Hex, 3/8"-16 x 2 1/4", G5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

Brake pedal stop Jam, 3/8"-16, G5

1шт.

74291C1

PLUG

1шт.

142167C1

PLUG

antenna opening

2шт.

1017968C1

PLUG, brake valve stem opening

1шт.

71870C1

GROMMET, rubber

5шт.

147189C2

MAT

carpeted floor

1шт.

2

132667C1

SHEET

lower rear wall upholstery, Serial Range: -2500

1шт.

2

147139C1

SHEET

lower rear wall upholstery, Start Serial: 2501

1шт.

3

138840C1

SHEET

upper RR plate cover upholstery, Serial Range: -2500

1шт.

3

147145C1

SHEET

upper RR plate cover upholstery, Start Serial: 2501

1шт.

4

132670C1

STRIP

SHEET, upper rear side wall upholstery, Serial Range: -2500

2шт.

4

147134C1

STRIP

SHEET, upper rear side wall upholstery, Start Serial: 2501

2шт.

5

132664C1

SHEET

front side wall left upholstery, Serial Range: -2500

1шт.

5

147141C1

SHEET

front side wall left upholstery, Start Serial: 2501

1шт.

5

132663C1

SHEET

front side wall right upholstery, Serial Range: -2500

1шт.

5

147140C1

SHEET

front side wall right upholstery, Start Serial: 2501

1шт.

6

132672C2

COVER

ASSY, frt cowl sewn, Serial Range: -2500

1шт.

147146C1

COVER

ASSY, frt cowl sewn, Start Serial: 2501

1шт.

7

132668C1

SHEET

roof rear upholstery, Serial Range: -2500

1шт.

7

147147C1

SHEET

roof rear upholstery, Start Serial: 2501

1шт.

8

138665C1

SHEET

roof front center upholstery, Serial Range: -2500

1шт.

8

147096C1

SHEET

roof front center upholstery, Start Serial: 2501

1шт.

9

138666C2

SHEET

roof front upholstery, Serial Range: -2500

1шт.

9

147149C1

SHEET

roof front upholstery, Start Serial: 2501

1шт.

10

129418C2

SHEET

lower door LH upholstery, Serial Range: -2500

1шт.

10

147142C1

SHEET

lower door LH upholstery, Start Serial: 2501

1шт.

10

129419C1

DOOR

SHEET, lower door RH upholstery, Serial Range: -2500

1шт.

10

147143C1

SHEET, lower door RH upholstery, Start Serial: 2501

1шт.

11

138835C1

MAT

floor, Serial Range: -2500

1шт.

11

147192C2

MAT

floor, Start Serial: 2501

1шт.

12

GASKET, platform long foam, Use 33.8 in. from a 4 ft. length marked 73213C1

3шт.

13

GASKET, platform short foam, Use 25.2 in. from a 4 ft. length marked 73213C1

2шт.

14

129338C1

GLASS

cab front lower window

2шт.

15

129326C1

SEAL

cab front lower window molding

2шт.

16

68646C1

GLASS

cab door

2шт.

17

68650C1

MOLDING

STRIP, door window glass molding

2шт.

18

129339C1

GLASS

cab front window

1шт.

19

129325C1

MOLDING

SEAL, front window glass molding

1шт.

20

129337C1

GLASS

cab side rear window

2шт.

21

129327C1

SEAL, side rear window molding

2шт.

22

117967C1

GLASS

rear window

1шт.

23

117970C1

STRIP

rear window hinge

1шт.

24

117969C1

HINGE

rear window

1шт.

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

6шт.

115109

WASHER,1/4"

1/4"

6шт.

25519R1

NUT,1/4"-20, G8

1/4 phc type 8

6шт.

27097R1

SCREW

1/4 x 7/8 phc p/hdcr mach

6шт.

16560R1

WASHER

.266 x .625 x .036 phc

6шт.

111626C1

NUT

1/4-20 nylon insert phc lock

6шт.

25

117973C1

STRIP

sector arm pivot

2шт.

26

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

22шт.

27

109588C1

BRACKET

sector arm pivot

4шт.

16560R1

WASHER

.266 x .625 x .036 phc

24шт.

111626C1

NUT

1/4-20 nylon insert

12шт.

27097R1

SCREW

1/4 x 7/8 phc p/hdcr mach

12шт.

28

111412C1

ARM

quarter window sector LH

2шт.

27930R1

PIN

3/8 x .500 n/d phc type 1 hd

1шт.

111627C1

PIN

3/8 x 1.250 n/d phc type 1 hd

1шт.

29

111413C1

ARM

quarter window sector RH

2шт.

27930R1

PIN

3/8 x .500 n/d phc type 1 hd

1шт.

27897R1

PIN, 3/8 x 7/8 phc type 1 hd

2шт.

118140C1

NUT

FASTENER PUSH-ON

8шт.

30

109590C1

SPRING

sector arm compression

2шт.

111365C1

CONE WASHER

coned

4шт.

31

SEAL, rear window glass, Use 139 in. from a roll marked, 64518C1

1шт.

32

117966C1

GLASS

side front window

2шт.

33

117974C1

STRIP, side front window hinge

2шт.

34

109169C1

HINGE

side front window

2шт.

27096R1

SCREW

1/4 x 5/8 phc p/hdcr mach

8шт.

115109

WASHER,1/4"

1/4"

8шт.

25519R1

NUT,1/4"-20, G8

1/4 phc type 8

8шт.

35

129434C2

SHEET, access plate upholstery, Serial Range: -2500

1шт.

35

147191C1

SHEET

access plate upholstery, Start Serial: 2501

1шт.

36

132671C1

SHEET

lower rear side wall upholstery, Serial Range: -2500

2шт.

36

147190C1

SHEET

lower rear side wall upholstery, Start Serial: 2501

2шт.

37

129483C2

STRIP

Orbitrol mount upholstery, Serial Range: -2500

2шт.

37

147133C1

STRIP

Orbitrol mount upholstery, Start Serial: 2501

2шт.

38

117973C1

STRIP

PAD, sector arm pivot

2шт.

16560R1

WASHER

.266 x .625 x .036 phc

8шт.

27097R1

SCREW

1/4 x 7/8 phc p/hdcr mach

4шт.

111626C1

NUT

1/4-20 phc nylon insert

4шт.

39

109585C1

SPRING

pivot compression

2шт.

40

109590C1

SPRING

sector arm compression

2шт.

111365C1

CONE WASHER

coned

4шт.

41

SEAL, side window glass, Use 91.7 in. from a roll marked, 64518C1

2шт.

42

MOTOR ASSY, windshield wiper, For components, See list of parts under windshield wiper motor assy, Group 8

1шт.

27987R1

SCREW, 1/4NF x 1/2 znp p/hds mach

1шт.

43

804653C91

ARM ASSY.

ARM ASSY, windshield wiper

1шт.

44

109225C1

WINDSHIELD WIPER

BLADE ASSY, windshield wiper

1шт.

26962R1

SCREW

no. 5 x 3/4 pln p/hds mach

1шт.

12539R1

NUT, no. 5 phc mach screw type 1

1шт.

45

71243C1

STRIP

PING, weather

2шт.

46

70395C2

ISOLATOR

INSULATOR, cab

4шт.

24894R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

4шт.

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

3/4 x 2-1/2 x 1/4 znd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

27330R1

NUT, 3/4 thick type 8

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

8шт.

120396

WASHER

.531 x 1.062 x .074

8шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

8шт.

47

69408C1

SPACER

cab insulator

4шт.

48

533511R1

MIRROR

rear view

1шт.

49

68669C1

BRACKET

rear view mirror

1шт.

132848

SCREW,Sl Rnd Hd, #10 - 24 x 1"

no. 10 x 1 znp r/hds mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

50

68670C1

CLIP

hose

4шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc h/whd tap

4шт.

51

68671C1

ASH TRAY

TRAY ASSY, ash

1шт.

24216R1

SCREW, no. 6 x 1/2 p/hds tap

2шт.

52

NOT USED IN THIS APPLICATION

1шт.

53

71869C1

GROMMET

PLUG, Orbitrol mtg bracket

1шт.

54

132676C1

SHEET

top console upholstery, Serial Range: -2500

1шт.

54

147148C1

SHEET

top console, Start Serial: 2501

1шт.

55

132802C1

SHEET

center firewall upholstery LH, Serial Range: -2500

1шт.

55

147138C1

SHEET

center firewall upholstery RH, Start Serial: 2501

1шт.

55

134935C1

SHEET

center firewall upholstery RH, Serial Range: -2500

1шт.

55

147144C1

SHEET

center firewall upholstery RH, Start Serial: 2501

1шт.

56

132677C1

BEZEL

climate control

1шт.

57

74289C1

BAR

harness mtg, Plate

1шт.

25519R1

NUT,1/4"-20, G8

1/4 phc type 8

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

58

74290C1

ISOLATOR

STRIP, seal, Insulation

1шт.

534441R1

FLUID

ADHESIVE, 1 qt. can upholstery

1шт.

474517C2

GASKET

SEALANT, gasket eliminator, Use w/plug 142167C1

1шт.
