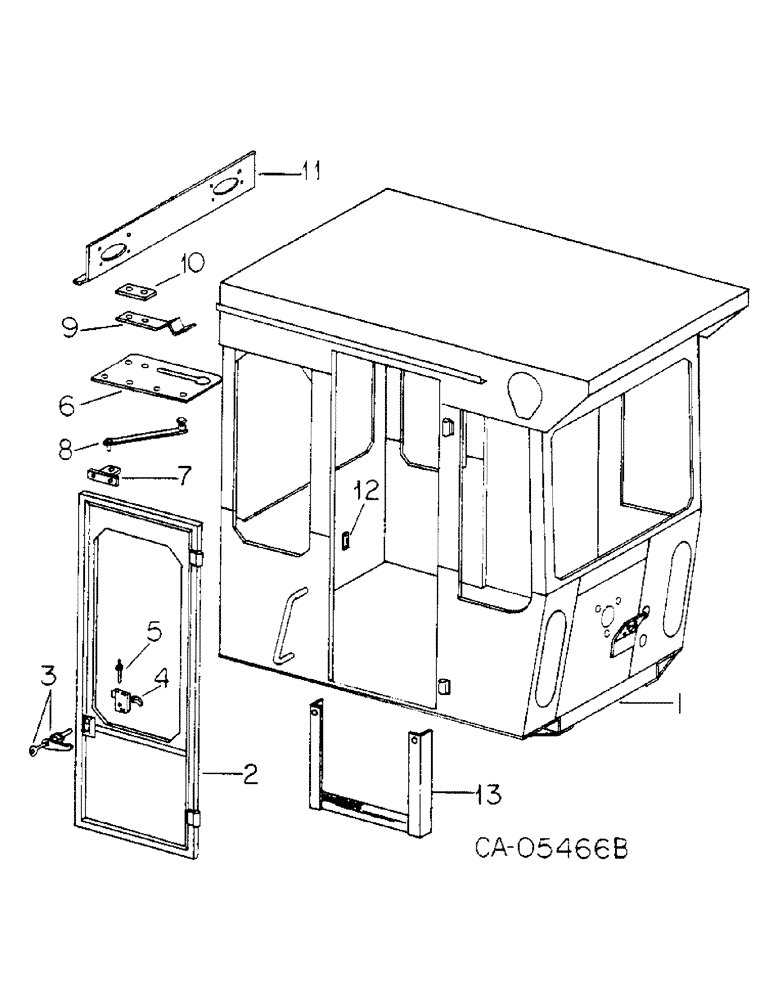

Запчасти Case IH 4786 (13-02) - CAB AND SUPERSTRUCTURE, CAB ASSEMBLY (05) - SUPERSTRUCTURE

1

138871C4

CAB

ASSY

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Brake pedal stop Hex, 3/8"-16 x 2 1/4", G5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

Brake pedal stop Jam, 3/8"-16, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

28432R1

SCREW

5/16 x 3/8 phc hdl/hs set

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

70157C1

NUT

FITTING, 3/8-16

4шт.

2

141873C1

DOOR ASSY.

DOOR ASSY, LH

1шт.

2

141874C1

DOOR ASSY.

DOOR ASSY, RH

1шт.

3

147195C1

HANDLE

ASSY, door, Replaces 70092C1 by ordering two handles, 147195C1, Serial Range: -2500

2шт.

4

70042C1

LATCH

ASSY, RH door inside

1шт.

138954C1

SHIM

cab door latch

3шт.

120391

WASHER,#10

.219 x .500 x .0036

2шт.

4

70043C1

LATCH

ASSY, LH door inside

1шт.

138954C1

SHIM

cab door latch

3шт.

120391

WASHER,#10

.219 x .500 x .036

3шт.

5

142089C1

RIVET

3/16 x 3/4 pop, Replaces 70159C1

1шт.

6

129484C1

LARGE PLATE

PLATE, door latch mtg

2шт.

77543C1

SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 phc h/whd tap

1шт.

7

129485C1

BRACKET

ASSY, door latch

2шт.

77543C1

SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 phc h/whd tap

4шт.

8

129488C1

ARM

ASSY, door latch

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

9

129492C1

SPRING

door latch

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

129493C1

LARGE PLATE

BAR, door latch, Plate

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

11

129382C3

PANEL

cab rear cover

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc h/whd tap

4шт.

12

392801R2

CATCH

STOP ASSY, door latch

2шт.

77584C1

SELF-TAP SCREW,Oval, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 o/hdcr tap

4шт.

13

110142C2

STEP

ASSY, mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

1258482C91

PACKAGE, striker plate, Consists of

1шт.

142168C1

LARGE PLATE

PLATE, striker

2шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc h/whd tap

4шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

134919C1

HANDLE, door

2шт.

55077C1

RIVET

mandrel

1шт.

INSTRUCTIONS, installing

1шт.
