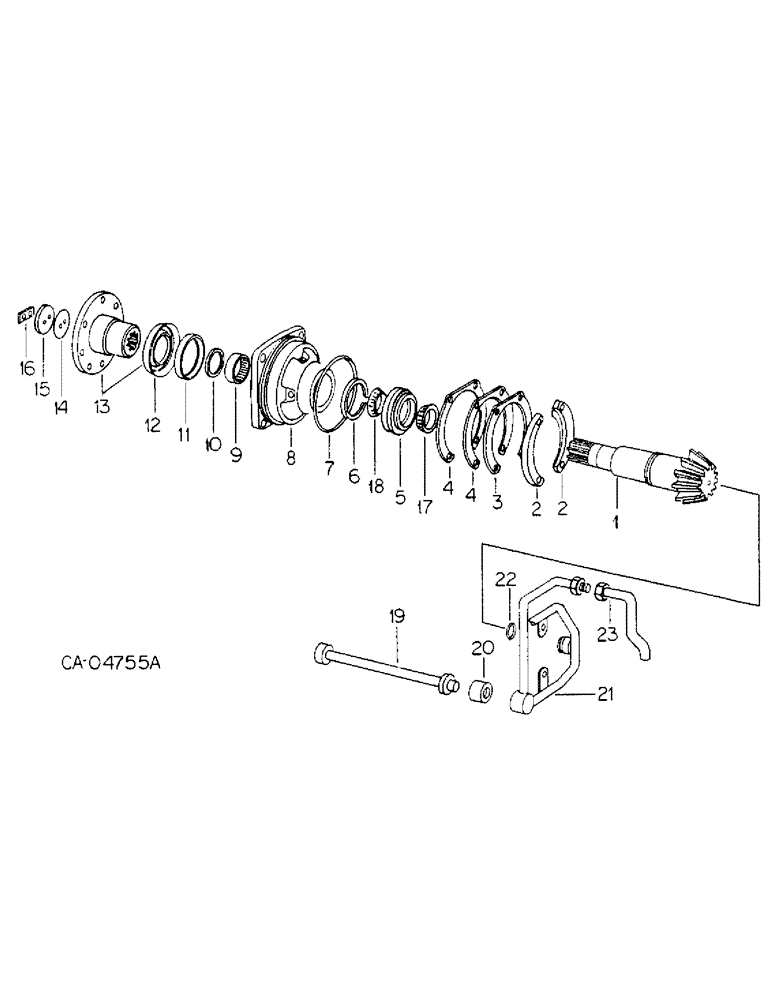

Запчасти Case IH 4786 (07-22) - DRIVE TRAIN, FRONT PINION BEARING (04) - Drive Train

1

SHAFT, drive bevel pinion, Not serviceable separately order bevel gear set/118966C91

1шт.

2

135771C1

RETAINER

ASSY, pinion shaft rear brg

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2-13 x 1-1/2 12-pt flange

4шт.

3

380283R2

SHIM

pinion shaft brg

1шт.

4

380284R2

SHIM

pinion shaft brg

2шт.

5

67907C91

BEARING ASSY,2.6255" ID x 5.252" OD x 2.687"

ASSY, bevel pinion

1шт.

6

67908C1

RING, SNAP

RING, pinion brg retaining, .163

1шт.

6

67909C1

RING, SNAP

RING, pinion brg retaining, .167

1шт.

6

67910C1

RING, SNAP

RING, pinion brg retaining, .171

1шт.

6

67911C1

RING, SNAP

RING, pinion brg retaining, .175

1шт.

6

67912C1

RING, SNAP

RING, pinion brg retaining, .179

1шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, Pinion shaft cage

1шт.

8

67913C1

CAGE

pinion shaft front brg

1шт.

26314R1

BOLT, 7/16 x 1 phc p/t type 8

4шт.

9

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

pinion shaft front

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

67914C1

SEAL

pinion yoke

1шт.

12

67926C1

SHIELD

companion flange

1шт.

13

104900C91

YOKE

ASSY, axle input

1шт.

14

67916C1

GASKET

companion flange washer

1шт.

15

67917C1

WASHER

companion flange

1шт.

16

67918C1

LARGE PLATE

PLATE, companion flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

17

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 67907C91 bearing assy

1шт.

18

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 67907C91 bearing assy

1шт.

19

65440C2

TUBE,7.825" Length

ASSY, transmission lube dumbell

1шт.

20

114210C1

BUSHING

COUPLER, transmission lube tube

1шт.

21

67742C1

TUBE

ASSY, transmission lube

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lube tube mtg bracket

2шт.

406579R1

WASHER

lube tube mtg bracket

2шт.

22

67745C1

SEALING RING

pinion lube fitting

1шт.

23

67748C2

TUBE

ASSY, differential retainer upper lube

1шт.
