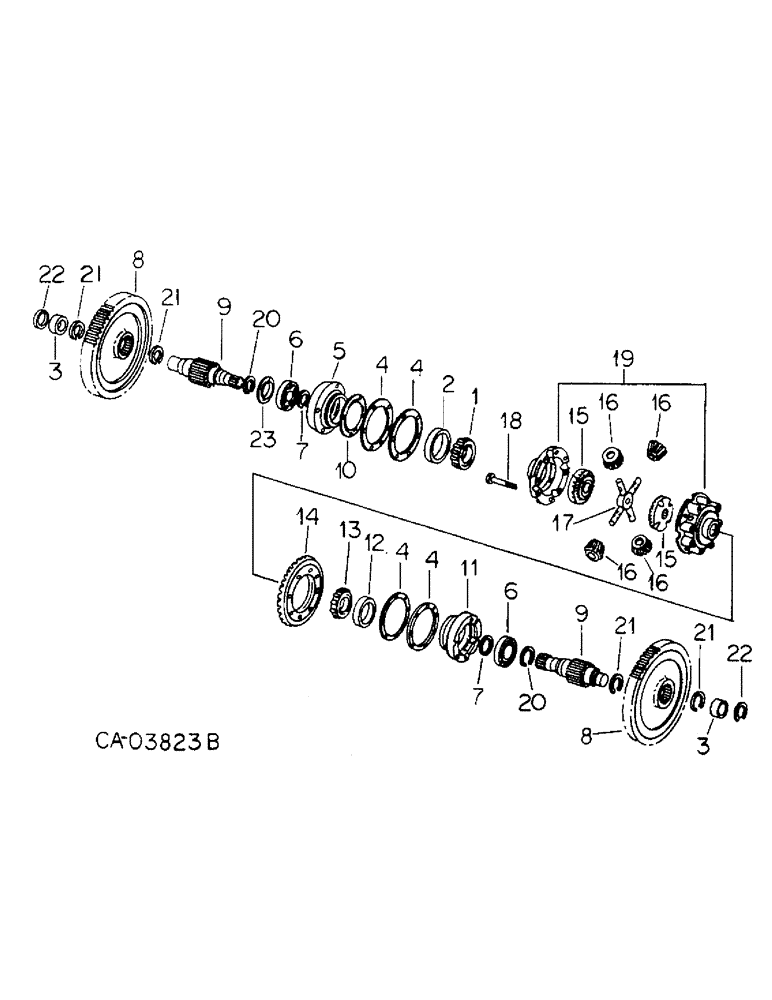

Запчасти Case IH 4786 (07-20) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

1

529452R91

ROLLER BEARING

ASSY, LH cone

2шт.

2

529453R1

BEARING, CUP

BEARING, differential LH cup

2шт.

3

67406C1

BEARING, ROLLER, CYL,35mm ID x 46.84mm OD x 26mm W

RACE, diff output shaft outer brg, Optional w/67407C1 and 67408C1

4шт.

3

67407C1

RACE

diff output shaft outer brg, Optional w/67406C1 and 67408C1

4шт.

3

67408C1

RACE

diff output shaft outer, Optional w/67407C1 and 67406C1

4шт.

4

SHIM, differential bearing retainer, Available in the following size options

1шт.

4

385155R1

SHIM

.003

1шт.

4

380205R1

SHIM

.004

1шт.

4

380202R1

SHIM

.007, (Or as required)

3шт.

4

380203R1

SHIM

.012, (Or as required)

4шт.

4

380204R1

SHIM

.030

1шт.

5

67398C1

RETAINER

differential brg LH, Rear axle

1шт.

5

120105C1

RETAINER

diff brg LH, Front axle

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

120302C91

ROLLER BEARING,2.1664" ID x 3.937" OD x 0.8268"

BEARING, diff output shaft inner

4шт.

7

327058R1

RING, SNAP

RING, diff output shaft inner brg snap

4шт.

8

67329C1

GEAR

diff output shaft, 30T

4шт.

9

67399C1

SHAFT

differential output, Rear axle

2шт.

9

132570C1

SHAFT

diff output, Front axle

2шт.

10

67397C1

BAFFLE

LH differential bearing oil

2шт.

11

67396C1

RETAINER

differential brg RH

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

12шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, differential RH roller cup

2шт.

13

622336C91

ROLLER BEARING

ASSY, RH roller cone

2шт.

14

118966C91

GEAR-SET

BEVEL GEARS, matched set, Front axle, Consists of

1шт.

GEAR (NSS)

1шт.

SHAFT (NSS)

1шт.

TAG (NSS)

1шт.

14

118973C91

GEAR-SET

BEVEL GEARS, matched set, Rear axle, Consists of

1шт.

GEAR (NSS)

1шт.

SHAFT (NSS)

1шт.

TAG (NSS)

1шт.

15

380190R2

GEAR

differential bevel, 28T

4шт.

16

361061R3

PINION

differential bevel, 15T

8шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

2шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

24шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 pln thick type 8

24шт.

19

528706R3

CASE

ASSY, differential

2шт.

20

67405C1

RING, SNAP

RING, diff output shaft brg snap

4шт.

21

583564R1

SNAP RING,#250, 2.356, Ext

RING, diff output shaft gear snap

8шт.

22

376909R1

SNAP RING,#137, 1.291", Ext

RING, diff shaft outer brg snap

4шт.

23

120108C1

BAFFLE

LH diff output shaft inner brg lub oil, Front axle

1шт.
