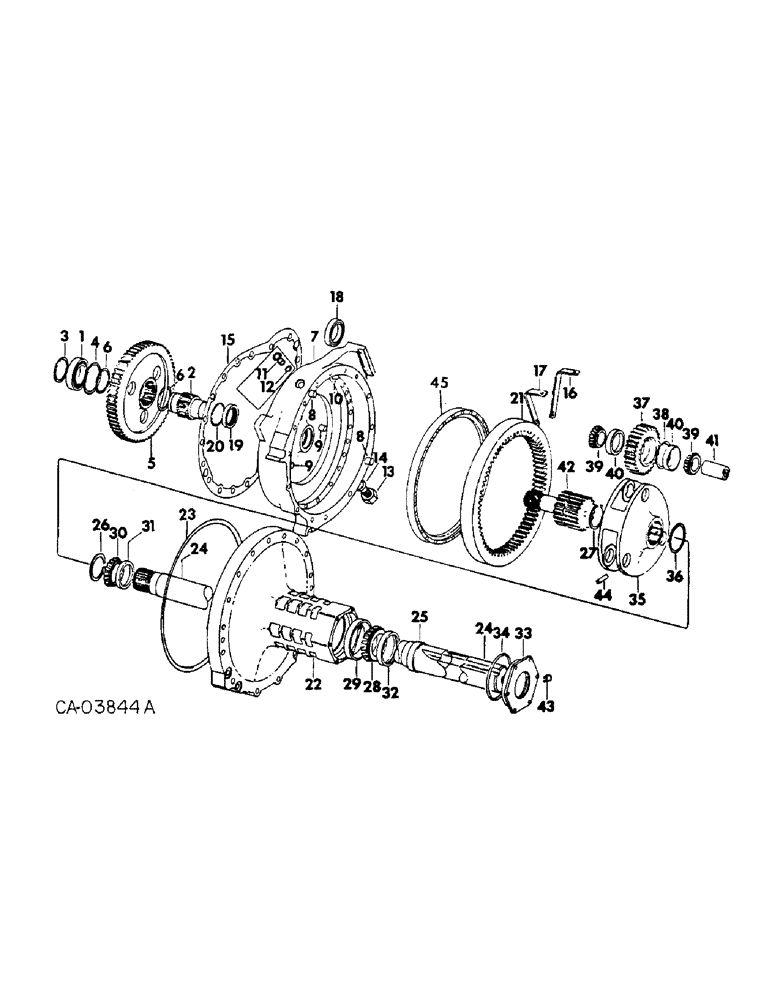

Запчасти Case IH 4786 (07-18) - DRIVE TRAIN, AXLES AND CARRIER (04) - Drive Train

1

ST3009

BALL BEARING,65mm ID x 122.19mm OD x 23mm W

BEARING, driven gear hub inner ball

4шт.

2

67220C1

HUB

diff output driven gear

4шт.

3

614762C1

SNAP RING,#255, 2.413, Ext

RING, driven gear inner brg ext snap

4шт.

4

67226C1

OIL SEAL

RING, driven gear brg int snap

4шт.

5

67334C1

GEAR

diff output driven, 56T

4шт.

6

67246C1

RING, SNAP

RING, output driven gear snap

8шт.

7

67215C21

HOUSING ASSY, front axle carrier adapter

2шт.

7

110310C2

HOUSING ASSY, rear axle carrier adapter, Includes ref nos. 8 and 10

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4 pln type 5

8шт.

NLS

NO LONGER SERVICED

5/8 x 3-1/2 pln type 5

8шт.

269181R1

SNAP RING,#75, Ext

Ring, Snap, , front axle #75, Ext

6шт.

8

19968R1

DOWEL,3/4" x 1 3/4"

PIN, .750 x 1.750 dowel

8шт.

9

71267C1

PIN

brake piston oversized dowel, Front axle, (Or as required)

6шт.

10

23896R1

DOWEL,5/8" x 3"

PIN, .625 x 3.000 hardened dowel

8шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

9410358

PLUG

9/16-18 str thd o-ring boss

8шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

8шт.

15

380225R2

GASKET

rear, Serial Range: frame-adapter

4шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

67254C91

ROLLER BEARING,46.91mm ID x 80.03mm OD x 21mm W

diff output shaft outer roller

4шт.

19

67255C91

NEEDLE BEARING,Needle, 69.85mm ID x 88.9mm OD x 25.4mm W

driven gear hub outer needle

4шт.

20

382665R1

RING

driven gear hyd brg snap

4шт.

21

120942C1

GEAR

ring, 72T, Replaces 67217C1

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

BOLT, 5/8 x 7 pln type 5

56шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 pln type 5

16шт.

22

124501C2

CARRIER, rear axle

4шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 pln type 5

72шт.

23

67241C1

O-RING,21.475" ID x 0.139" Width

rear axle carrier

4шт.

24

116655C1

AXLE ASSY

4шт.

25

67225C1

OIL SEAL

RING, rear axle outer brg spacer

4шт.

26

598318R1

RING, SNAP

RING, axle retainer snap

4шт.

27

67751C1

RING, SNAP

RING, axle retainer snap

4шт.

28

ST2059

BEARING ASSY

BEARING, rear axle outer cone

4шт.

29

ST810

ROLLER BEARING,92.075 mm ID x 150 mm OD x 35.966 mm

BEARING, rear axle outer cup

4шт.

30

67250C91

BEARING ASSY,3.5433" ID x 5.7087" OD x 1.378"

rear axle inner cone

4шт.

31

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

BEARING, rear axle inner cup

4шт.

32

67256C1

OIL SEAL

rear axle oil

4шт.

33

67218C1

CAP

rear axle carrier

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

24шт.

34

264681R1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

rear axle cap seal

4шт.

35

67216C1

CARRIER, planet gear

4шт.

36

67231C1

SHIM

rear axle adj, .007, (Or as required)

12шт.

36

67230C1

SHIM

rear axle adj, .012, (Or as required)

8шт.

36

67233C1

SHIM

rear axle adj, .003

1шт.

36

67232C1

SHIM

rear axle adj, .004

1шт.

36

67229C1

SHIM

rear axle adj, .030

1шт.

37

1251840C91

GEAR

planet, 27T, Replaces 70284C91, Includes ref no. 38

12шт.

38

67240C1

RING

planet gear brg spacer snap, Front axle

6шт.

39

533726R91

BEARING

planet gear cone

24шт.

40

533727R1

BEARING, CUP

BEARING, planet gear cup

24шт.

41

67227C1

SHAFT

planet gear bearing

12шт.

42

67221C1

SHAFT

sun gear, 18T

4шт.

43

NOT USED IN THIS APPLICATION

1шт.

44

19555R1

PIN,5/16" x 1", Coiled

6шт.

45

132660C1

SPACER, ring gear, Rear axle

2шт.

45

67335C1

RING

brake reactor, Front axle

2шт.
