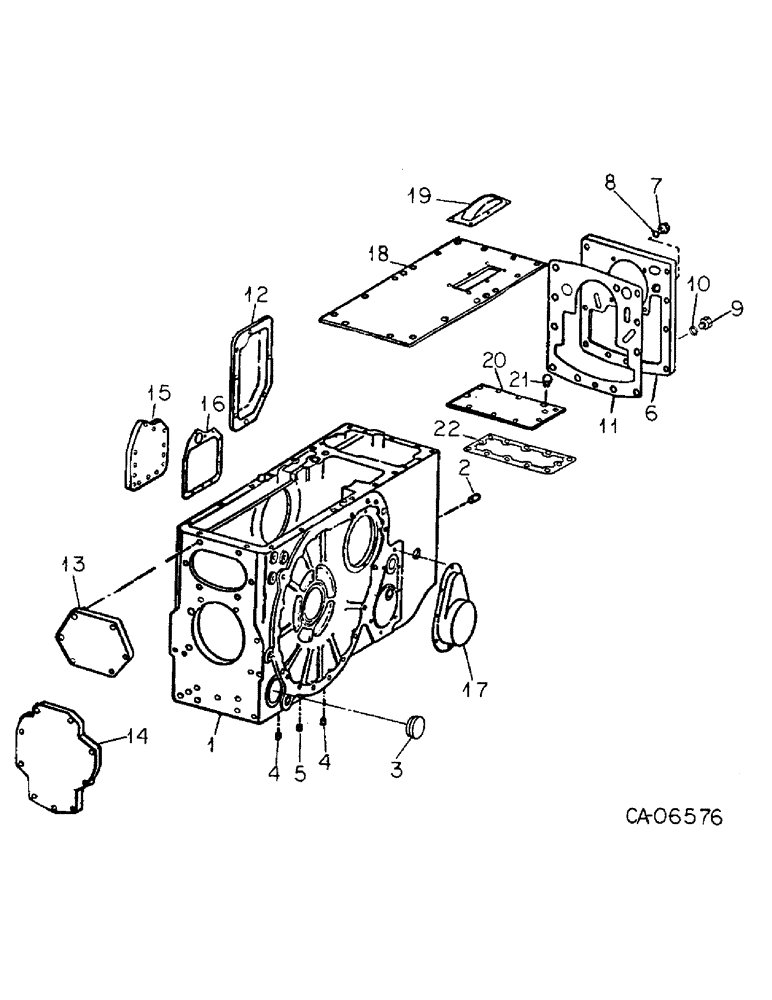

Запчасти Case IH 4786 (07-16) - DRIVE TRAIN, REAR AXLE CENTER FRAME (04) - Drive Train

1

67890C1

FRAME ASSY, rear, Consists of ref nos 2, 3, 4 & 5

1шт.

2

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel

1шт.

3

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

4

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-soc-hd drain

2шт.

5

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 automotive sq-soc-hd pipe

1шт.

6

67892C2

COVER, input

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

10шт.

7

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 C-Z str-thd o-ring boss, Oil level

1шт.

8

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

9

9410356

PLUG

7/16-20 str thd o-ring boss, Oil level

1шт.

11

71902C1

GASKET

GASKET, input cover

1шт.

12

380330R3

COVER

drive attach opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

13

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cap

6шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

14

380272R1

COVER

IPTO opening

1шт.

179882

PIN

1/2 x 1-1/8 pln type 5

9шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

15

382243R1

COVER ASSY

COVER, pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

12шт.

16

382244R4

GASKET

pump opening

1шт.

17

382256R1

COVER ASSY

COVER, oil filter

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

8шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

18

134529C91

COVER ASSY, diff top main

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cap

16шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

19

67903C2

COVER, diff bevel gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

20

67922C1

COVER

diff top small

1шт.

NLS

NO LONGER SERVICED

10шт.

21

152127H1

BREATHER,1/8"-27, Short

1/8-27 axle

1шт.

22

67905C1

GASKET

diff top small cover

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.
