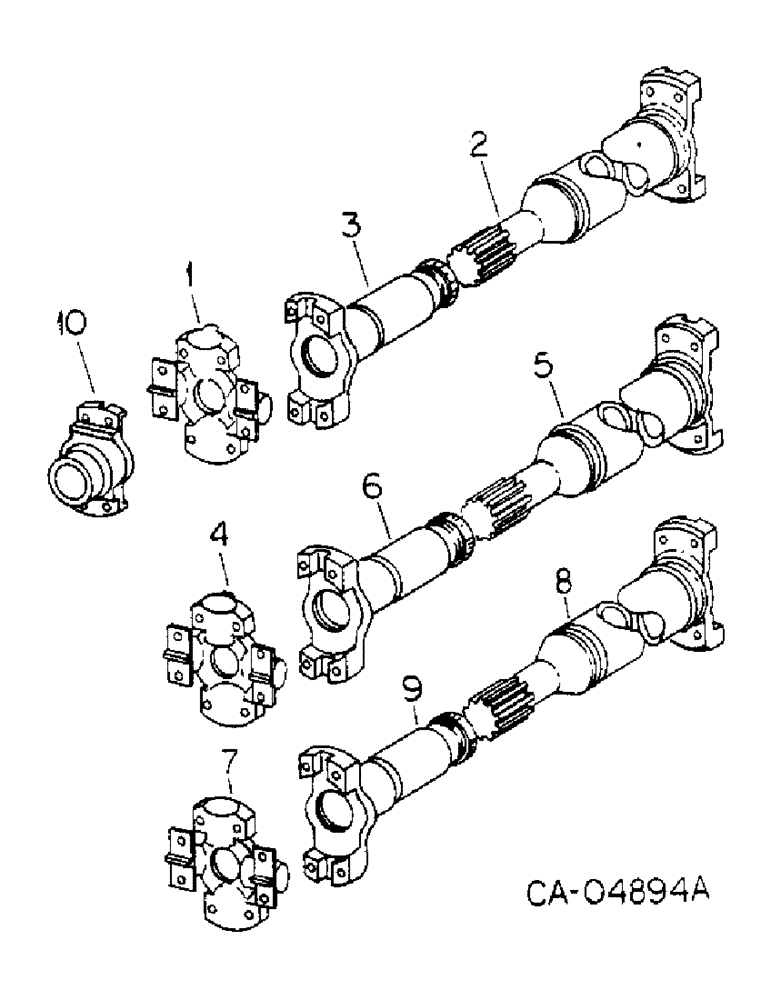

Запчасти Case IH 4786 (07-13) - DRIVE TRAIN, PROPELLER SHAFT (04) - Drive Train

SHAFT ASSY, top front drive, Serviced only by ordering piece parts from stock

1шт.

1

184843H3

BEARING

SPIDER AND BEARING, Replaces 324550R91

2шт.

28272R1

SCREW, 1/2NF x 2.250 phc 12 pt flg 12 Pt Flg, 1/2"-20 x 2 1/4"

8шт.

2

138913C1

YOKE

tube

1шт.

28272R1

SCREW, 1/2NF x 2.250 phc 12 pt flg 12 Pt Flg, 1/2"-20 x 2 1/4"

4шт.

3

134460C1

FORK

YOKE, slip

1шт.

28272R1

SCREW, 1/2NF x 2.250 phc 12 pt flg 12 Pt Flg, 1/2"-20 x 2 1/4"

4шт.

SHAFT ASSY, bottom front drive, Serviced only by ordering piece parts from stock

1шт.

4

71783C1

BEARING ASSY

SPIDER AND BEARING

2шт.

25797R1

BOLT,Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16-NF x 1-1/8 phc type 8

8шт.

5

71729C1

YOKE, tube assy

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

6

71730C1

YOKE ASSY, slip

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

SHAFT ASSY, bottom rear drive, Serviced only by ordering piece parts from stock

1шт.

7

71783C1

BEARING ASSY

SPIDER AND BEARING

2шт.

25797R1

BOLT,Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16-NF x 1-1/8 phc type 8

8шт.

8

71725C1

FORK

YOKE, tube

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

9

71726C1

FORK

YOKE, slip

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

10

114310C1

FORK

YOKE, transmission output

1шт.
