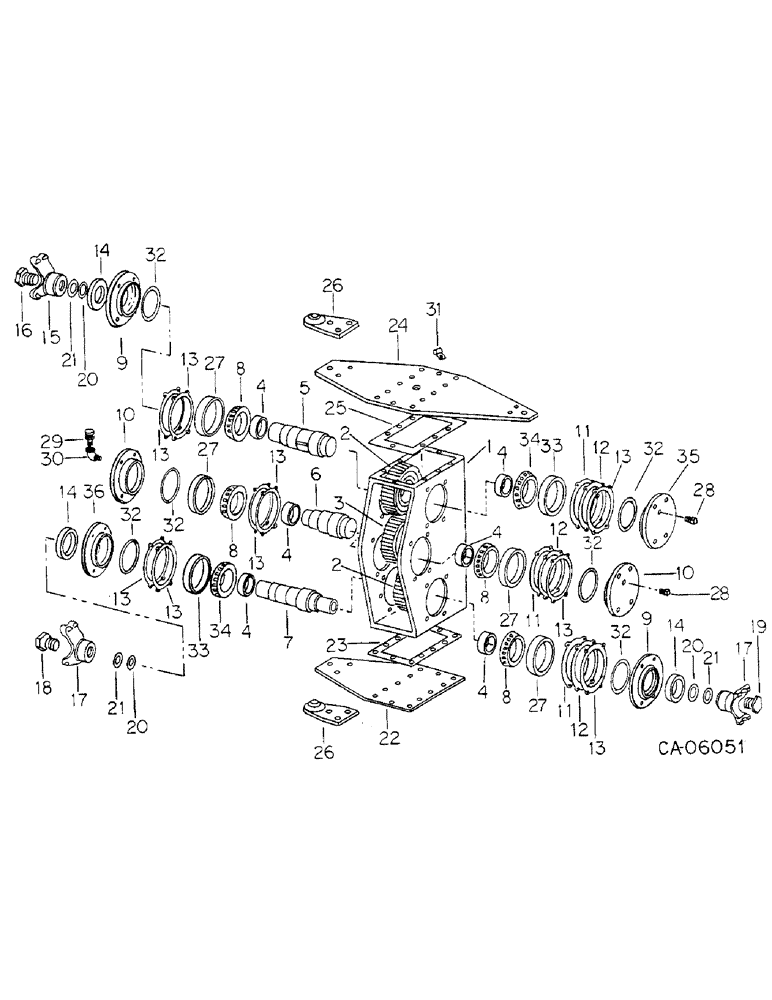

Запчасти Case IH 4786 (07-11) - DRIVE TRAIN, TRANSFER CASE (04) - Drive Train

132679C91

BOX

CASE ASSY, transfer

1шт.

1

71657C2

NO LONGER SERVICED

CASE, transfer

1шт.

2

71658C1

GEAR

top and bottom

2шт.

3

71918C1

GEAR

middle

1шт.

4

71919C1

SPACER

gear top, middle and bottom

6шт.

5

132680C1

SHAFT

top

1шт.

6

71916C1

SHAFT

middle

1шт.

7

132681C1

SHAFT

bottom

1шт.

8

71704C91

BEARING ASSY,64.99mm ID x 39mm W

cone

4шт.

9

71681C2

CAGE

bearing

2шт.

27405R1

SCREW, 1/2-13 x 1-3/4 znd prevailing torque

8шт.

10

71680C2

CAP

bearing

2шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd prevailing torque

8шт.

11

129027C1

SHIM

bearing cage, .005, (Or as required)

6шт.

12

129028C1

SHIM

bearing cage, .0075, (Or as required)

6шт.

13

129029C1

SHIM

bearing cage, .020, (Or as required)

6шт.

14

338549R91

SEAL

transfer case

3шт.

15

114312C1

FORK

YOKE, top end

1шт.

16

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

104930C2

FORK

YOKE, bottom end

2шт.

18

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

127443C1

GASKET

drive yoke

3шт.

21

127444C1

WASHER

drive yoke

3шт.

22

71686C1

LARGE PLATE

PLATE, bottom link cover

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 C-Z auto. sq-hd pipe

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, 1/8 znd reg lock

12шт.

23

71685C2

GASKET

bottom link

1шт.

24

71687C1

LARGE PLATE

PLATE, top link cover

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

25

71685C2

GASKET

top link

1шт.

26

69091C1

PLATE ASSY.

PLATE ASSY, transfer case bearing

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

131017

WASHER

.812 x 1.469 x .134 znd

6шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cdp hex

6шт.

27

71705C1

BEARING CUP,120mm OD x 32mm W

BEARING, cup

4шт.

28

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-hd pipe

2шт.

29

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING, 3/8 PTF breather type

1шт.

30

111316

ELBOW

90 degree street

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8

6шт.

33

152454R1

BEARING, CUP

2шт.

34

152453R91

ROLLER BEARING,2.625" ID x 5" OD x 1.4975"

ASSY, cone

2шт.

35

132661C1

CAP

bearing

1шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd prevailing torque

4шт.

36

132662C1

CAGE

bearing

1шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd prevailing torque

4шт.
