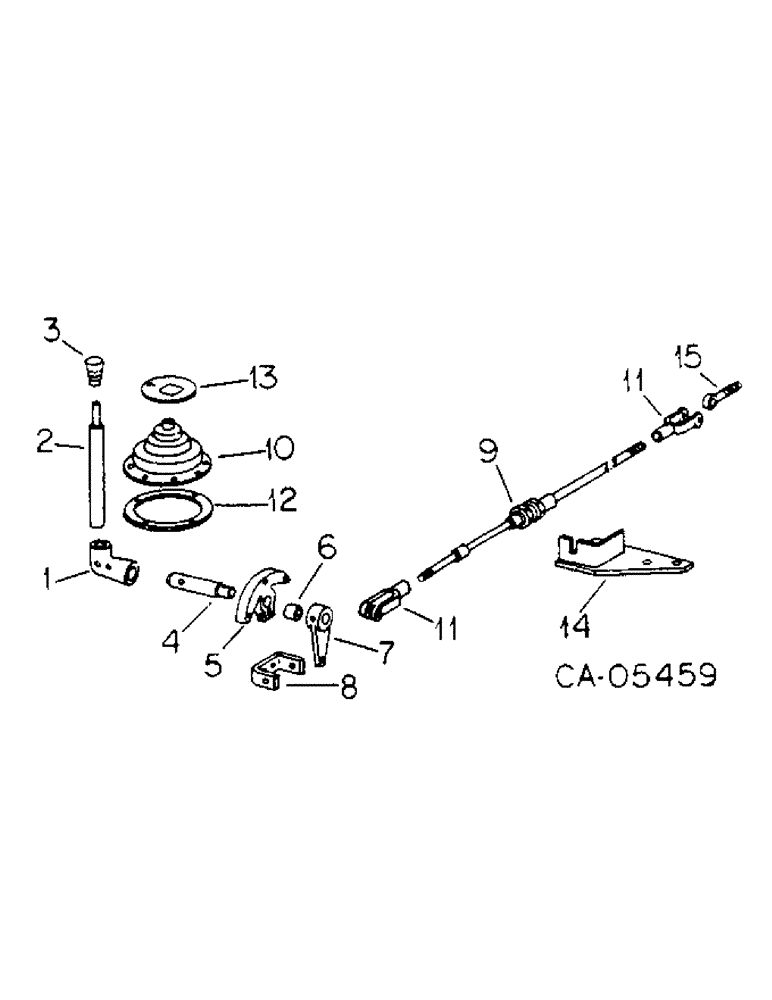

Запчасти Case IH 4786 (07-10) - DRIVE TRAIN, TRANSMISSION HI-LO RANGE CONTROLS (04) - Drive Train

1

399031R1

PIVOT

HUB, hi-low rod

1шт.

2

124918C1

PIN

hi-low, Rod

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

3

397931R2

GRIP

KNOB, hi-low

1шт.

3

397931R2GV

SPRING

Value, Knob

1шт.

4

124919C2

PIN

hi-low pivot, Shaft

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

15162E

SEALING WASHER

WASHER, .812 x 2.00 x .125 flat

1шт.

5

532521R1

SUPPORT

control

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, nylon friction

1шт.

7

399010R1

LEVER

control

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

1шт.

8

124920C1

CHANNEL

hi-low adj step, Bracket

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

124739C1

CABLE PULLING GRIP

CABLE ASSY, hi-lo range control

1шт.

299408C1

CLAMP

closed 9/16

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

10

778053C1

BOOT

shift lever

1шт.

11

116383

CLEVIS

1/4-28 adj rod end

2шт.

138083

PIN

1/4 x .770 clevis

2шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

12

114285C1

LARGE PLATE

PLATE, shift boot hold down

1шт.

13

132513C1

PLATE

ASSY, gear shift

1шт.

26095R1

SCREW, 1/4 x 1-1/2 phc h/hd tap

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

8шт.

14

124942C1

BRACKET ASSY, control cable

1шт.

15

561461C1

BOLT,Eye, 1/4" - 28 x 0.80"

1/4-28 eye

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.
