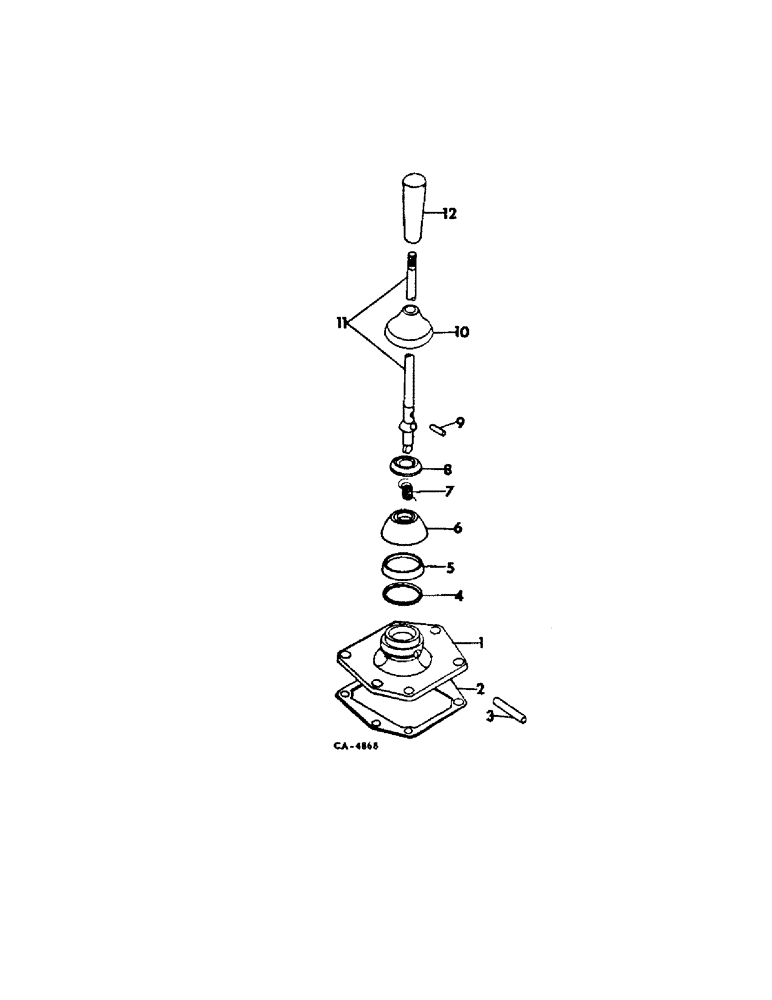

Запчасти Case IH 4786 (07-09) - DRIVE TRAIN, TRANSMISSION EXTERNAL CONTROLS (04) - Drive Train

1

974344R1

COVER

TOWER, shift lever

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

6шт.

456418C1

WASHER, tower

6шт.

2

697881R1

GASKET

tower

1шт.

3

70341R1

SHAFT

shift lever rock

1шт.

4

70323R1

OIL SEAL

RING, rock shaft snap

1шт.

5

70345R1

WASHER

shift lever compression

1шт.

6

70342R1

CUP

shift lever compression

1шт.

7

70344R1

SPRING

shift lever compression

1шт.

8

70343R1

COLLAR

compression

1шт.

9

70354R1

PIN

compression collar

1шт.

10

973497R1

BOOT

GROMMET, shift lever

1шт.

11

129032C1

LEVER

shift

1шт.

12

71767C1

KNOB

shift lever, Serial Range: -2500

1шт.

12

397978R2

GRIP

KNOB, shift lever, Start Serial: 2501

1шт.
