(07-09[A]) - DRIVE TRAIN, TRANSMISSION HOUSING SUPPORT

Запчасти Case IH 4786 (07-09[A]) - DRIVE TRAIN, TRANSMISSION HOUSING SUPPORT (04) - Drive Train

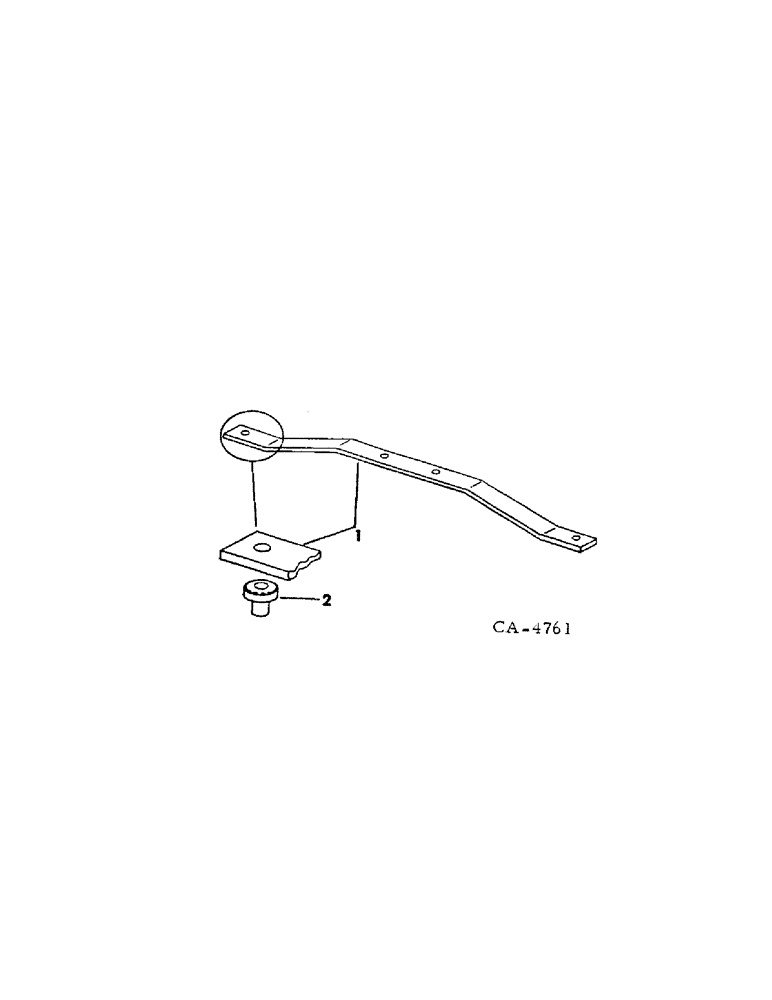

Схема запчастей Case IH 4786 - (07-09[A]) - DRIVE TRAIN, TRANSMISSION HOUSING SUPPORT (04) - Drive Train
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

109667C2

SUPPORT

transmission housing

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad. prevailing torque hex lock

2шт.

2

536671R1

RUBBER INSULATOR

INSULATOR, transmission rubber

2шт.

390307C1

WASHER

17/32 x 1-1/16 x .095 znd, Top

2шт.

22042R1

WASHER

17/32 x 2 x .12 C-Z, Bottom

2шт.
