(07-08) - DRIVE TRAIN, SPLITTER HOUSING

Запчасти Case IH 4786 (07-08) - DRIVE TRAIN, SPLITTER HOUSING (04) - Drive Train

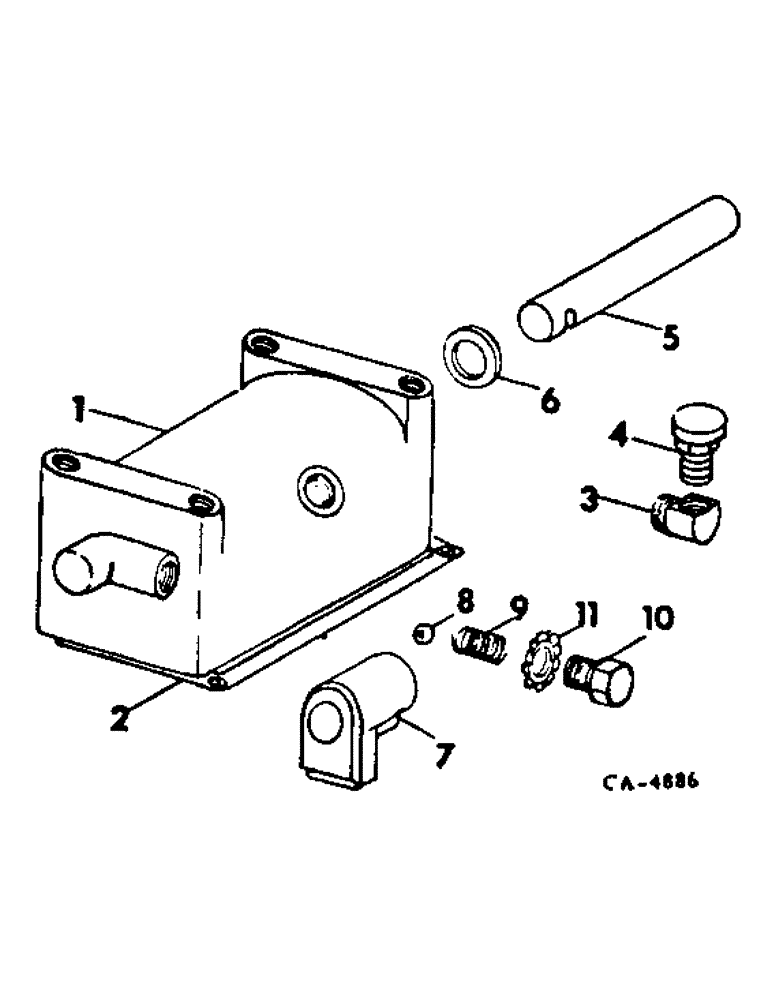

Схема запчастей Case IH 4786 - (07-08) - DRIVE TRAIN, SPLITTER HOUSING (04) - Drive Train
5
9
11
6
3
2
8
7
4
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71763C1

HOUSING

splitter

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

432242C1

GASKET

splitter housing

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

71764C1

SHAFT

splitter control rod

1шт.

6

202228H1

SEAL

control rod oil

1шт.

7

71765C1

FINGER

splitter shift

1шт.

71772C1

LOCK BOLT

SCREW, shift finger

1шт.

8

17012R1

BALL,3/8" Dia

Control rod poppet 3/8" Dia

1шт.

9

71766C1

SPRING

control rod poppet ball

1шт.

10

68107R1

RETAINER, control rod poppet ball

1шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Poppet ball retainer Int Tooth, 5/8"

1шт.
