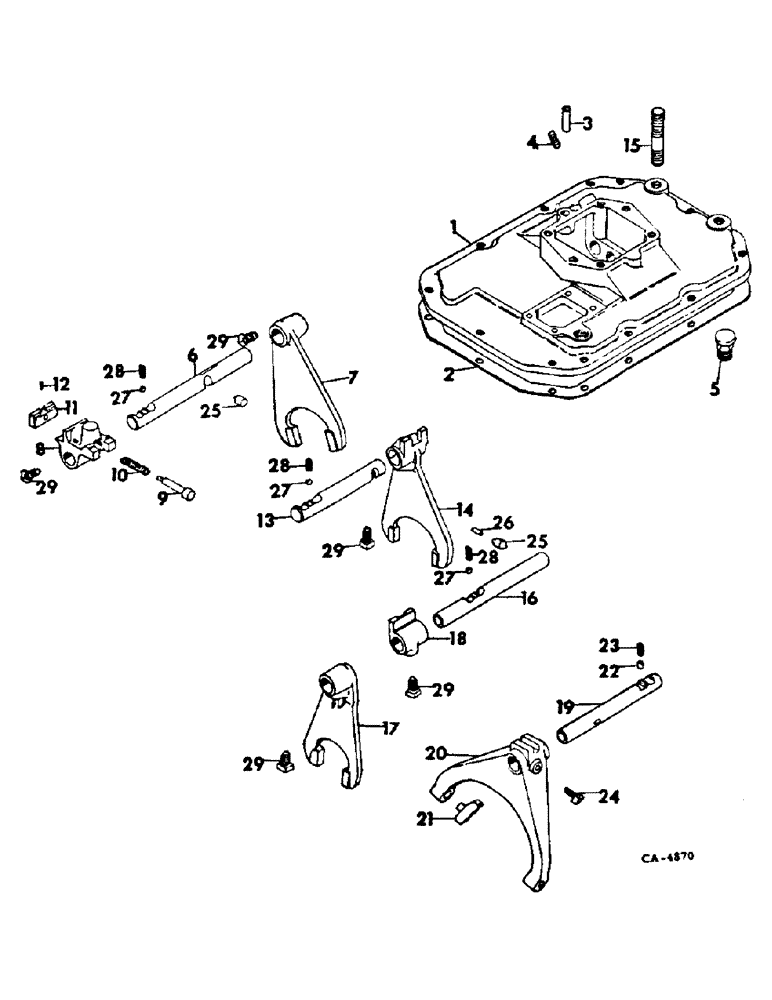

Запчасти Case IH 4786 (07-07) - DRIVE TRAIN, TRANSMISSION INTERNAL CONTROLS (04) - Drive Train

1

73183C91

HOUSING ASSY.

HOUSING ASSY, shifter, Consists of

1шт.

HOUSING (NSS)

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

SCREW

1шт.

73182C1

TROUGH

1шт.

2

399617C1

GASKET

shifter housing

1шт.

457371C1

SCREW, shifter housing

10шт.

3

21468R1

DOWEL,7/16" x 1 1/2"

PIN, 7/16 x 1.500 pln hdn dowel

1шт.

4

316178C1

PLUG

back-up lite switch hole

1шт.

5

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

ASSY, transmission

1шт.

6

505682C91

ROD, 1st, 2nd and reverse shift w/poppet ball & spring, Replaces 465123C1

1шт.

7

73180C1

FORK

1st, 2nd and reverse shift

1шт.

8

454298C1

BLOCK

BRACKET, shift

1шт.

9

399916C1

PLUNGER

shift rod bracket

1шт.

10

399927C1

SPRING

plunger

1шт.

11

399907C1

BLOCK

shift bracket

1шт.

12

24480R1

PIN,5/64" x 1/2", Coiled

shift plunger 5/64" x 1/2", Coiled

1шт.

13

507679C91

ROD

3rd, 4th, 5th and 6th shift w/poppet spring, Replaces 465144C1

1шт.

14

432239C1

FORK

3rd, 4th, 5th and 6th shift

1шт.

15

1250302C1

STUD

shifter housing mounting, Replaces 417675C1

2шт.

121358

YOKE

5/8-NF type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

16

507680C1

ROD

7th, 8th, 9th and 10th shift w/poppet spring, Replaces 465145C1

1шт.

17

432240C1

FORK

7th, 8th, 9th and 10th shift

1шт.

18

432238C1

BRACKET

shift

1шт.

19

432246C1

ROD

splitter shift

1шт.

20

449021C91

YOKE

FORK ASSY, splitter shift, Includes ref. nos 21 & 24

1шт.

21

432247C1

SHOE

splitter fork

2шт.

22

71761C1

SPARE PART

PIN, shift rod stop

1шт.

23

466062C1

SPRING

shift rod stop pin

1шт.

24

697970R1

SCREW, splitter fork

1шт.

25

437550C1

LOCK ASSY

INTERLOCK, shift rod

2шт.

26

698002R1

PIN

interlock

1шт.

27

43424V

BALL

shift rod poppet

3шт.

28

73181C1

SPRING

shift rod poppet ball

3шт.

29

71772C1

LOCK BOLT

SCREW, shift fork and bracket

5шт.
