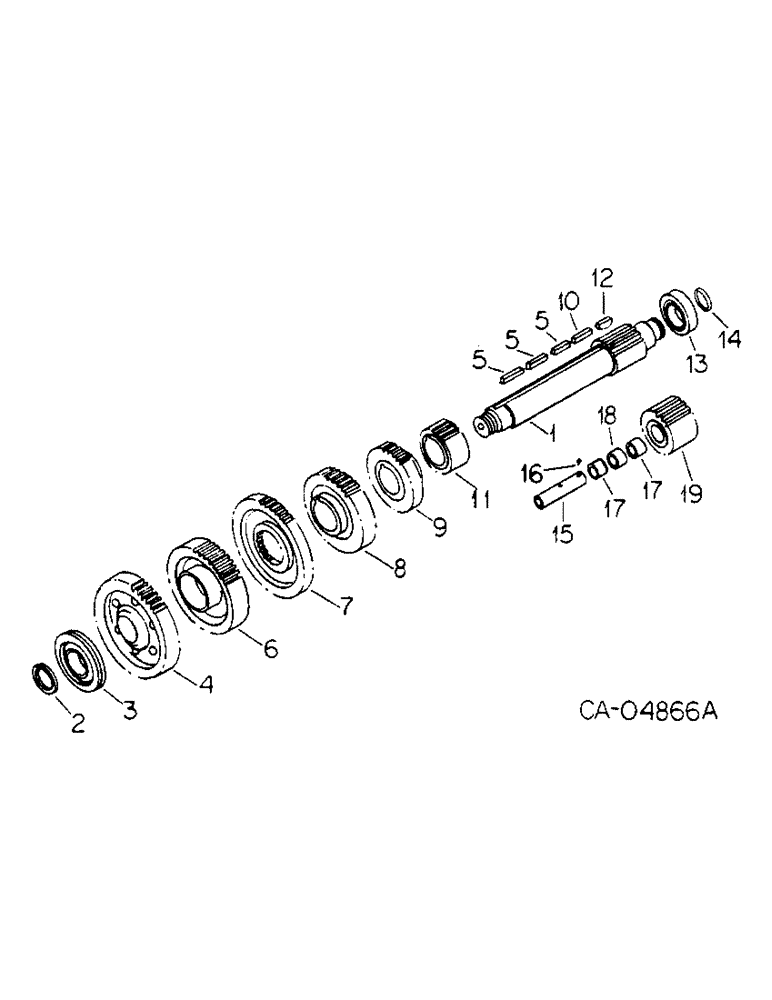

Запчасти Case IH 4786 (07-06) - DRIVE TRAIN, COUNTERSHAFT AND REVERSE SHAFT (04) - Drive Train

1

487397C91

SHAFT

COUNTERSHAFT W/SNAP RING, 15 teeth

2шт.

2

327058R1

RING, SNAP

RING, countershaft frt snap

2шт.

3

ST405

BALL BEARING,55mm ID x 120mm OD x 29mm W

BEARING, front

2шт.

4

432256C1

GEAR

low splitter, 54T

2шт.

5

483314C1

KEY

gear

2шт.

6

432257C1

GEAR

high splitter, 49T

2шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

73179C1

GEAR

7th & 8th, 41 teeth

1шт.

9

432259C1

GEAR

5th and 6th, 31 teeth

2шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

432258C1

GEAR

3rd and 4th gear

2шт.

12

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3rd and 4th gear

2шт.

13

401193C91

BEARING

rear

2шт.

14

399645C1

OIL SEAL

RING, ring bearing snap

2шт.

15

399646C1

SHAFT

reverse idler

2шт.

16

23208R1

BALL

reverse idler shaft

2шт.

17

321981R91

NEEDLE BEARING

reverse idler shaft

4шт.

18

399647C1

SPACER

bearing

2шт.

19

399618C1

GEAR

reverse idler, 21 teeth

2шт.
