(07-04) - DRIVE TRAIN, DRIVE GEAR

Запчасти Case IH 4786 (07-04) - DRIVE TRAIN, DRIVE GEAR (04) - Drive Train

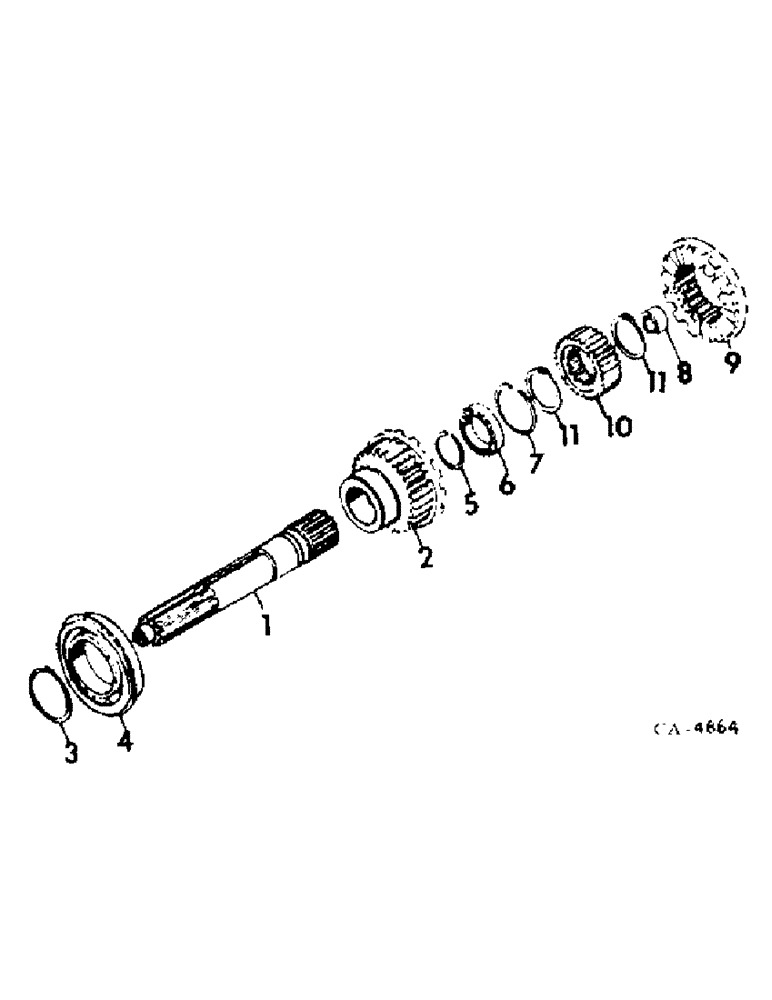

Схема запчастей Case IH 4786 - (07-04) - DRIVE TRAIN, DRIVE GEAR (04) - Drive Train
6
11
7
11
5
4
9
10
2
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

432237C1

SHAFT

drive gear input

1шт.

2

432249C1

GEAR

ASSY, drive, 26T

1шт.

3

24476R1

OIL SEAL

RING, bearing snap

1шт.

4

445418C91

BEARING ASSY,3.3465" ID x 5.9055" OD x 1.1024"

front

1шт.

5

92460R1

OIL SEAL

RING, external rear bearing snap

1шт.

6

1250303C1

BEARING

rear, Replaces 433210C91

1шт.

7

71770C1

RING

internal rear bearing snap

1шт.

8

154920C91

NEEDLE BEARING

pocket roller

1шт.

9

432252C1

COLLAR

splitter clutch

1шт.

10

432261C1

GEAR

splitter clutch

1шт.

11

114349H1

SNAP RING,#237, Ext

RING, SNAP, , Clutch gear #237, Ext

2шт.
