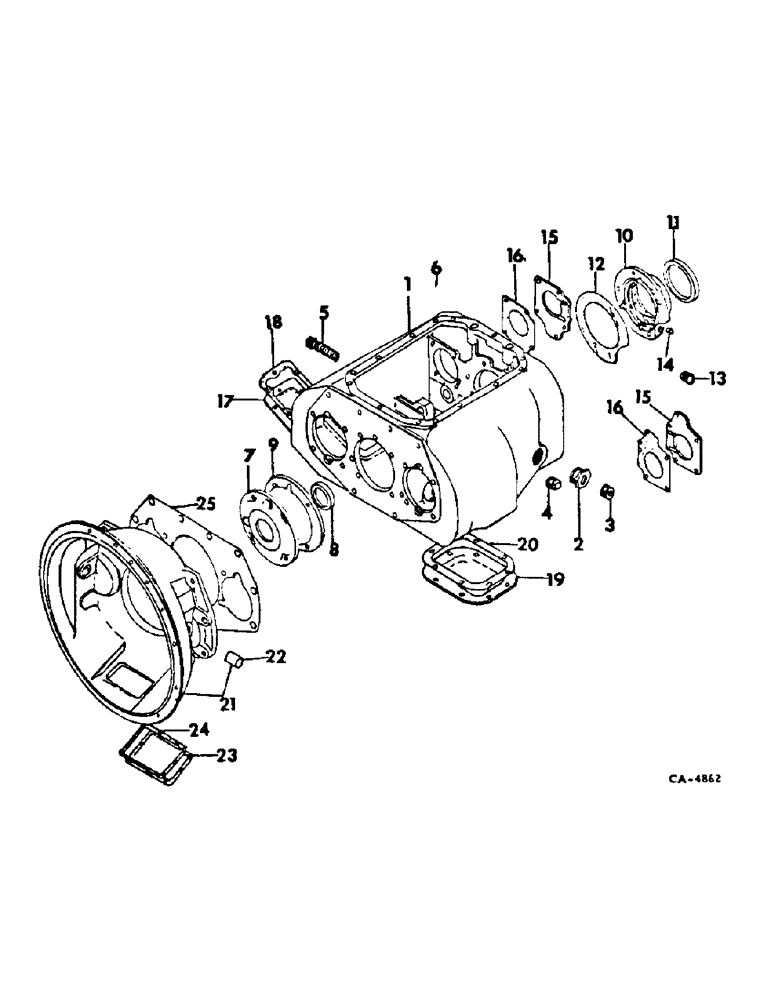

Запчасти Case IH 4786 (07-03) - DRIVE TRAIN, TRANSMISSION HOUSING AND CLUTCH HOUSING (04) - Drive Train

132685C91

TRANSMISSION

ASSY, complete

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 type 5

12шт.

146838C1

PLUG, expansion

1шт.

1

73165C91

CASE

ASSY, transmission, Includes ref nos 4 and 5

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

243321R1

PLUG

magnetic drain

2шт.

5

399642C1

PLUG

magnetic drain

1шт.

6

71758C1

PIN

dowel

2шт.

7

400220C12

CAP

RETAINER, main drive gear w/seal

1шт.

458371C1

BOLT,Hex, 3/8" - 16 x 1.125", Gr 5

SCREW, drive gear bearing cap

4шт.

8

401218C92

OIL SEAL

SEAL, drive gear front bearing oil, Used as part of 400220C11

1шт.

9

399614C1

GASKET

drive gear bearing cap

1шт.

10

485399C92

CAP

RETAINER, mainshaft rear bearing

1шт.

47939H

BUSHING, speedmeter

1шт.

11

401219C92

OIL SEAL

SEAL, mainshaft rear bearing oil

1шт.

12

399615C1

GASKET

mainshaft rear bearing cap

1шт.

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, mainshaft rear bearing short

4шт.

27407R1

BOLT,1/2" x 2 1/2", Gr 8

SCREW, mainshaft rear bearing long

2шт.

13

30443V

PLUG

speedometer hole

1шт.

14

NOT USED IN THIS APPLICATION

1шт.

15

71768C2

CAP

countershaft rear bearing

2шт.

453517C1

CAM,Flg, 3/8" x 0.938", Gr 5

SCREW, countershaft rear bearing cap

10шт.

16

399616C2

GASKET

countershaft rear bearing cap

2шт.

17

13156H

COVER

PTO aperture

1шт.

71769C1

FLANGE BOLT

SCREW, PTO aperture cover

6шт.

18

10705V

GASKET

PTO aperture cover

1шт.

19

332603C1

COVER

PTO aperture

1шт.

441366C1

SCREW, PTO aperture cover

8шт.

20

343368C1

GASKET

PTO aperture cover

1шт.

21

71759C92

HOUSING

clutch

1шт.

22

12-1471

BUSHING

clutch release shaft

2шт.

23

460882C1

COVER

clutch housing hand hole

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, 1/4 ext-tooth lock

8шт.

24

460851C1

GASKET

clutch housing cover

2шт.

25

399613C1

GASKET

clutch housing

1шт.

26475R1

BOLT, 5/8 x 1-3/4 phc p/t type 8 Locking, 5/8"-11 x 1 3/4", G8, Full Thd

10шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, clutch housing

4шт.
