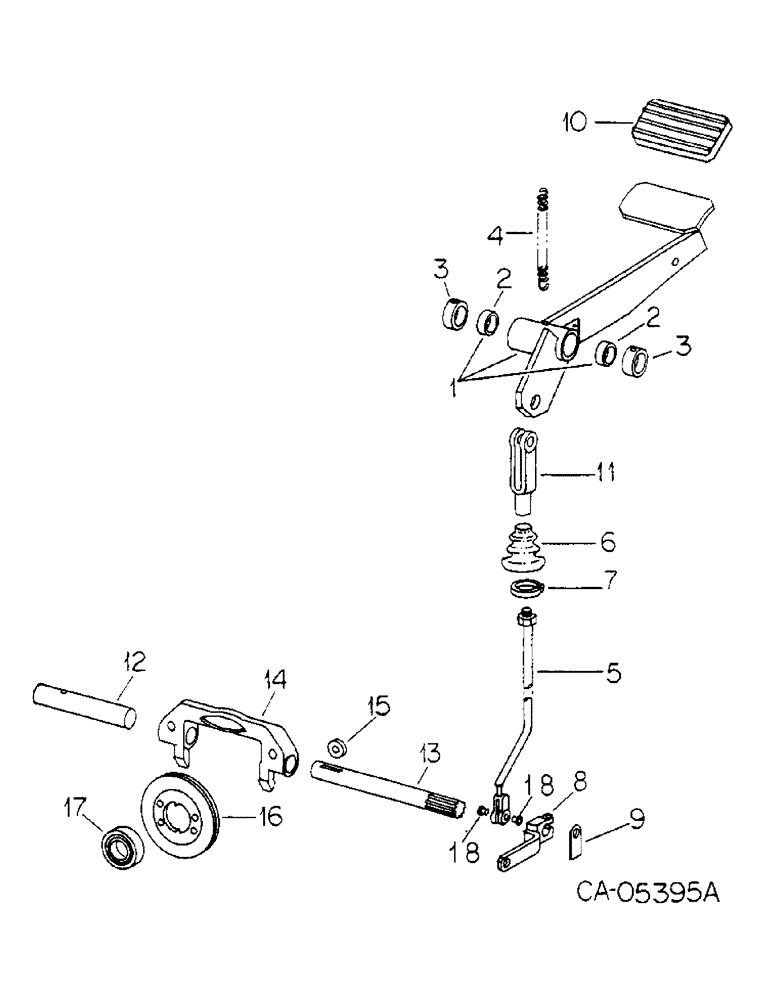

Запчасти Case IH 4786 (07-02) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train

1

127473C2

PEDAL

ASSY, clutch

1шт.

2

124658C1

BUSHING

clutch pedal back

2шт.

3

610513R1

COLLAR

COLLAR

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup pt set

2шт.

4

134581C1

SPRING

pedal return

1шт.

5

138820C1

ROD

ASSY, clutch

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-NF jam type

5шт.

Q1436

PIN,3/8" x 2 9/16"

3/8 x 2.562 pln hd type

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

134839C1

SPACER

clutch rod clevis

1шт.

6

119011C1

BOOT

INSULATOR, rubber, Boot

1шт.

7

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

1шт.

8

138830C1

LEVER

ASSY, clutch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

TAG, clutch adj. warning

1шт.

10

109656C1

BRAKE PAD

PAD, pedal

1шт.

11

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 C-Z adj rod end

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

12

697927R1

SHAFT

clutch release, Short

1шт.

13

68816C1

SHAFT

clutch release, Long

1шт.

14

13-79

YOKE

clutch release

1шт.

15

32796VA

WASHER

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

16

DISC ASSY, brake, Refer to clutch listing in this group

1шт.

17

129134C91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9375"

ASSY, clutch pilot

1шт.

18

536647R1

INSULATOR

BUSHING, insulator

1шт.
