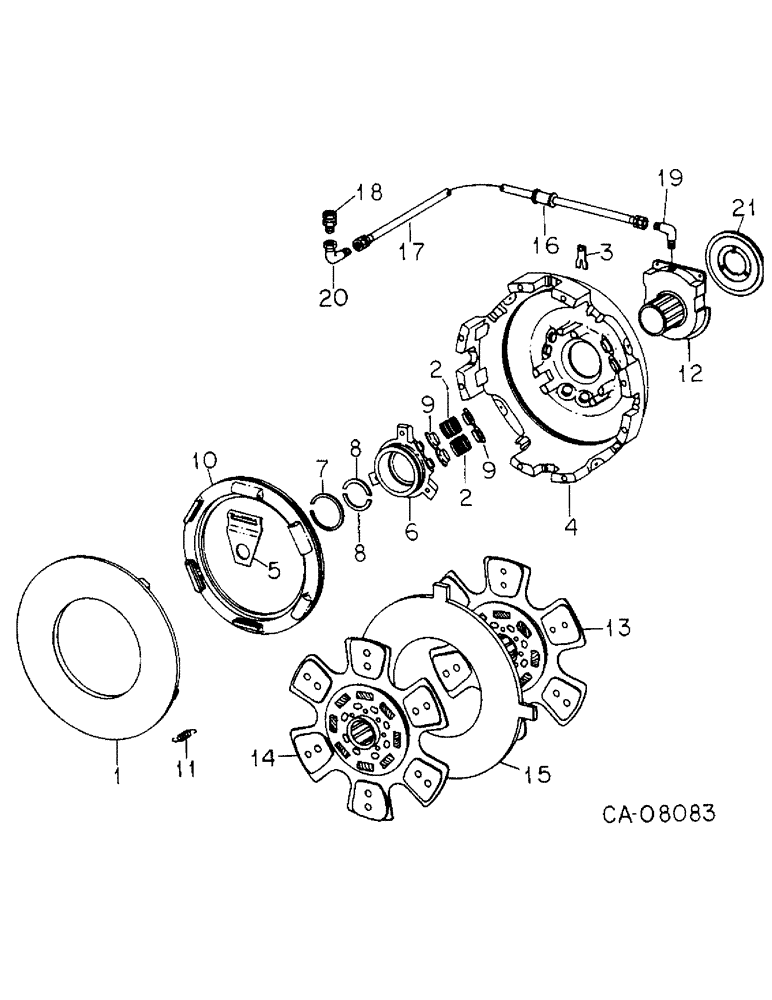

Запчасти Case IH 4786 (07-01) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1257904C91

CLUTCH

CLUTCH ASSY, Consists of ref. nos. 1 thru 15 and 21

1шт.

P/N 1257904c91 no longer contains item number 21 must be ordered seperate. csd 5/7/99

1шт.

1997782C2R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Kit - 15 in., (pot style), 2 in. hub diameter, 4 paddle

1шт.

1997782C2C

CORE-CLUTCH PLATE

Return Part Number Clutch Kit - 15 in.

1шт.

132540C91

COVER

COVER ASSY, pressure plate, Consists of ref. no. 1 thru 12

1шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

BOLT, 7/16 x 2-1/2 type 5

8шт.

1

444811C1

LARGE PLATE

PLATE, LARGE PLATE, clutch pressure

1шт.

2

399781C1

SPRING

SPRING, clutch pressure

6шт.

3

264474C1

STRIP

STRAP, lock

1шт.

443608

SUPPORT

SCREW, w/spring lock washer, 3/8-16 x 3/4 hex-hd mach

1шт.

4

75812C1

OIL SEAL

RING, flywheel

1шт.

5

134930C1

LEVER

LEVER, clutch

6шт.

6

75813C1

RETAINER

RETAINER, clutch release sleeve

1шт.

7

400495C1

RING

RING, snap

1шт.

8

411632C1

OIL SEAL

RING, clutch release sleeve

2шт.

9

399782C1

PIVOT

PIVOT, clutch spring

6шт.

10

134931C1

OIL SEAL

RING, adjusting

1шт.

11

444809C1

VALVE SPRING

SPRING, clutch return

4шт.

12

1997782C2R

REMAN-CLUTCH PLATE

BEARING AND SLEEVE ASSY RELEASE

1шт.

185250H1

SPARE PART FITTING, 1/8-27 PTF str lub

1шт.

13

134892C91

DISC

DISC ASSY, front clutch driven

1шт.

14

134893C91

DISC

DISC ASSY, rear clutch driven

1шт.

15

318990C1

CLUTCH PLATE

PLATE, intermediate clutch

1шт.

16

138960C1

GROMMET

GROMMET, lube hose

1шт.

17

138961C1

HOSE

HOSE, clutch BRG. lube

1шт.

18

138962C1

FITTING

FITTING, lube adapter

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lube 90 degree, Serial Range: -2553

1шт.

185250H1

SPARE PART FITTING, lube short str lub, Start Serial: 2554

1шт.

19

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

ELBOW, clutch BRG lube

1шт.

20

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ELBOW, 7/16-20 37 degree hyd

1шт.

21

797700C1

DISC

DISC ASSY, brake

1шт.
