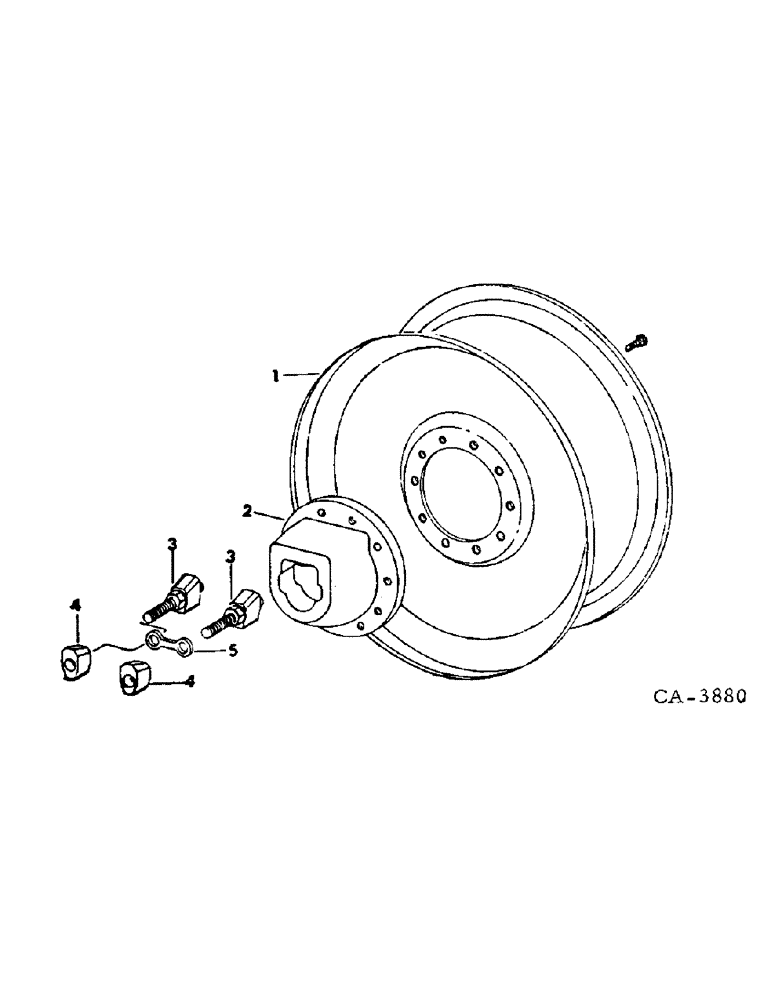

Запчасти Case IH 4786 (15-1) - WHEELS AND TRACTION, FRONT AND REAR WHEELS Wheels & Traction

1

110060C1

RIM

WHEEL ASSY, disc w/DW21-32 rim, For 24.5-32 12 ply tire

1шт.

1

109856C1

RIM

WHEEL ASSY, disc w/DW27-32 rim, For 30.5-32 10 ply tire

1шт.

1

105114C1

WHEEL ASSY.

WHEEL ASSY, disc w/DW18L-38 rim, For 20.8-38 8 ply tire

1шт.

1

116632C1

RIM

WHEEL ASSY, disc w/DW20-30 rim, For 23.1-30 8 ply tire

1шт.

1

116630C1

RIM

WHEEL ASSY, disc w/DW16L-38 rim, For 18.4-38 8 ply tire

1шт.

1

124803C1

RIM

WHEEL ASSY, disc w/DW20-34 rim, For 23.1-34 8 ply tire

1шт.

114-802

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 5

SCREW, 7/8-14 x 2-1/2 hex-hd cap, 10 per wheel

1шт.

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

1-3/4 x .935 x 5/32 hardened, 10 per wheel

1шт.

2

67337C1

HUB

dual wheel wedge lock, 1 per wheel

1шт.

3

67475C1

WEDGE

ASSY, wheel, 2 per wheel

1шт.

4

67477C1

WEDGE

wheel inner, 2 per wheel

1шт.

5

67478C1

LINK

wedge, 1 per wheel

1шт.

385718R2

EXTENSION

wrench

1шт.

67479C1

OPEN END WRENCH

WRENCH, 7/8 socket, 12 pt

1шт.

535409R1

STRIP

wrench grip

1шт.
