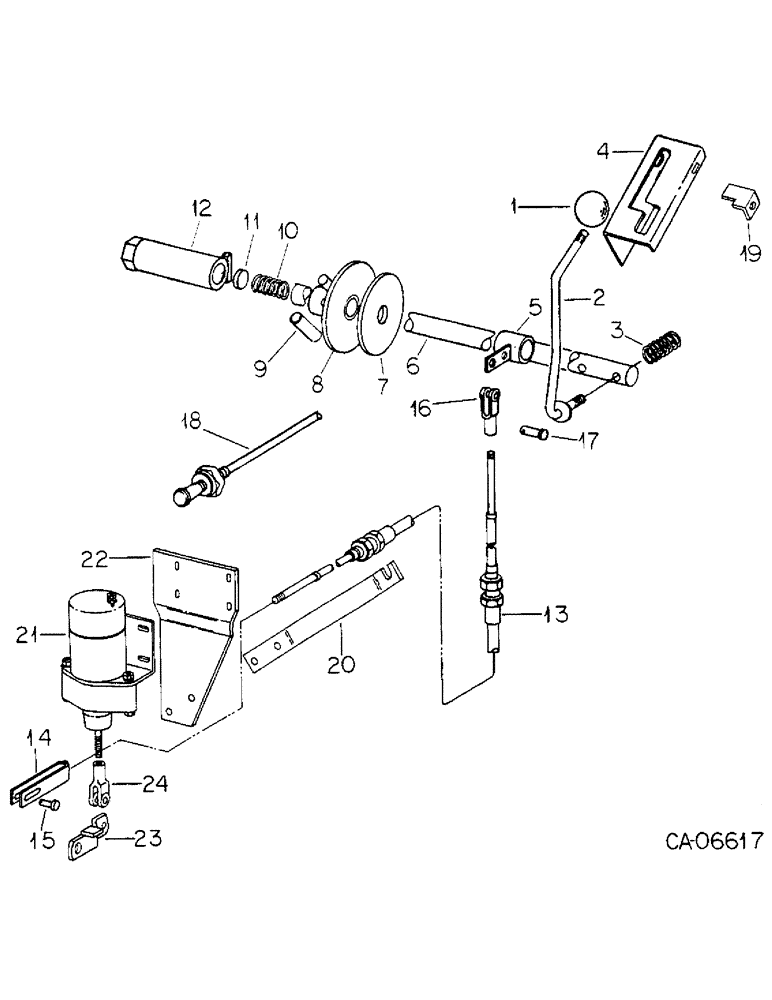

Запчасти Case IH 4786 (12-4) - POWER, ENGINE SPEED CONTROLS Power

1

397931R2

GRIP

KNOB, throttle

1шт.

1

397931R2GV

SPRING

Value, Knob

1шт.

1250289C1

FASTENER

throttle knob

1шт.

2

118958C1

HANDLE

ROD ASSY, throttle handle

1шт.

129474C1

WASHER

throttle handle

1шт.

3

69425C1

SPRING

throttle handle

1шт.

NLS

NO LONGER SERVICED

15/32 x 59/64 x .051 znd

1шт.

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT, 7/16-20 cad lock

1шт.

4

127548C1

SUPPORT

throttle guide

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

3шт.

561277R1

SPACER,5/8" Tube x 1/2"

.407 x .625 x .50 long

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

5

127555C2

HUB ASSY.

HUB ASSY, throttle control

1шт.

77730C1

SET SCREW

SCREW, 1/4-20 x .375 w/nylon patch

1шт.

6

127698C2

PIN

throttle shaft

1шт.

7

69424C1

LARGE PLATE

PLATE, throttle friction

1шт.

8

114205C1

LARGE PLATE

PLATE ASSY, friction

1шт.

9

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

10

69426C1

SPRING

throttle friction

1шт.

11

114200C1

PUNCH

DISC, spring

1шт.

12

114203C1

BUSHING

ASSY, throttle shaft

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

1шт.

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

BOLT, 5/8-11 UNC-2A

1шт.

119004C1

BOLT

U-BOLT

1шт.

446363

WASHER,5/16"

.3751 x .875 x .064

2шт.

120376

NUT,5/16"-18, G5

2шт.

13

127579C1

CABLE PULLING GRIP

CABLE, throttle

1шт.

14

130986C1

CLEVIS

ASSY, throttle

1шт.

130987C1

SPRING

throttle return

1шт.

15

21889R1

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

1шт.

16

110322

CLEVIS, 10-32 C-Z adj rod end

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

17

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x .580 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

18

116679C1

CABLE

fuel shut-off

1шт.

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER, 3/8 znd int-ext tooth lock

1шт.

120369

NUT,3/8"-24, G5

1шт.

19

127580C1

STOP

ASSY, adj throttle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

20

129229C2

SUPPORT

throttle cable, Anchor

1шт.

21

131029C92

SWITCH

SOLENOID ASSY, decelerator, Replaces 130988C1, Consists of

1шт.

77893C1

BODY ASSY, solenoid switch

1шт.

77896C1

PLUNGER ASSY W/PAD

1шт.

121616C1

INSULATOR

1шт.

121617C2

PIN, solenoid plunger

1шт.

116383

CLEVIS

1/4-28

1шт.

78390C1

GASKET, solenoid body

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

22

130983C1

SUPPORT

solenoid bracket

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

23

131400C3

LEVER

ASSY, throttle solenoid

1шт.

131360C1

WASHER

BUSHING, lever

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

24

116383

CLEVIS

1/4-28 std

1шт.

53055D

CLEVIS PIN,1/4" x 1"

PIN, 1/4 x 1.000 pln clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.
