Запчасти Case IH 4786 (12-2) - POWER, AIR CLEANER AND EXHAUST CONNECTIONS Power

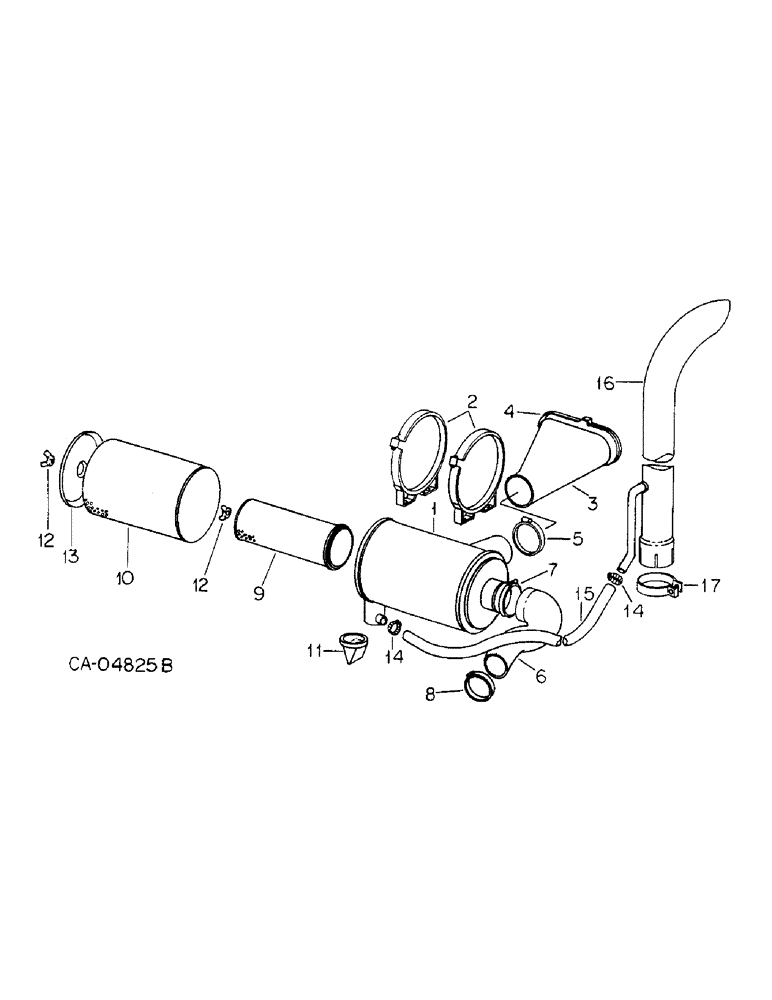

Схема запчастей Case IH 4786 - (12-2) - POWER, AIR CLEANER AND EXHAUST CONNECTIONS Power
8
14
13
17
3
12
12
4
5
14
1
2
9
11
6
10
7
15
16

Артикул

Название

Примечание

Количество

1

104965C92

CLEANER

ASSY, air, Includes ref. nos. 9, 10, 11, 12 and 13, Serial Range: -2500

1шт.

1

146557C91

CLEANER

ASSY, air, Consists of ref nos. 9, 10, 12 and 13, Start Serial: 2501

1шт.

2

152539H1

BAND

air cleaner mounting

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex.

4шт.

3

71799C1

INTAKE AIR HOSE

AIR INTAKE, Air Cleaner Intake

1шт.

4

21894R1

HOSE CLAMP,#140, 8.38/9.25 Type F Worm

CLAMP, intake hose, Front

1шт.

5

24768R1

CLAMP, intake hose, Rear

1шт.

6

104967C3

INTAKE AIR HOSE,152.40 mm ID x 183.70 mm

HOSE, air cleaner outlet

1шт.

7

127339C1

HOSE CLAMP,6.25/7.125 HD Worm, W/liner

CLAMP, outlet hose, Front

1шт.

8

130714C1

CLAMP,5.25/6.125 HD Worm, W/liner

outlet hose rear

1шт.

9

627976C1

AIR FILTER

ELEMENT, safety

1шт.

10

627975C2

ELEMENT

filter

1шт.

11

383734R2

VALVE

unloader, Used w/104965C92

1шт.

12

412078C1

WING NUT

NUT, wing

3шт.

13

71924C1

COVER

air cleaner end

1шт.

14

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose, Start Serial: 2501

2шт.

15

146582C1

HOSE, aspirator, Start Serial: 2501

1шт.

16

147187C1

PIPE

exhaust w/aspirator, Start Serial: 2501

1шт.

17

650988C1

CLAMP,130mm

exhaust pipe, Start Serial: 2501

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

2шт.

Выбрано товаров: 25
