(12-1) - POWER, EXHAUST SYSTEM, TRACTORS WITH SERIAL NO. 2500 AND BELOW

Запчасти Case IH 4786 (12-1) - POWER, EXHAUST SYSTEM, TRACTORS WITH SERIAL NO. 2500 AND BELOW Power

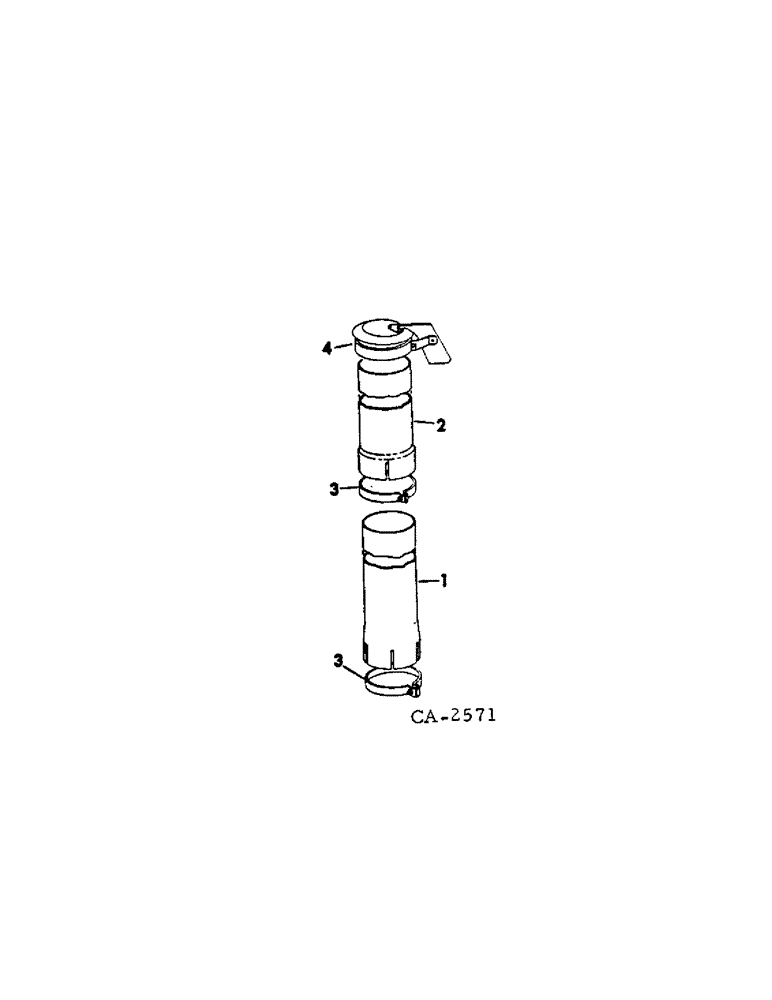

Схема запчастей Case IH 4786 - (12-1) - POWER, EXHAUST SYSTEM, TRACTORS WITH SERIAL NO. 2500 AND BELOW Power
2
3
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

105165C1

PIPE

exhaust

1шт.

2

NOT USED THIS APPLICATION

1шт.

3

650987C1

CLAMP

exhaust pipe

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

71496C3

CAP ASSY.

CAP ASSY, exhaust

1шт.
