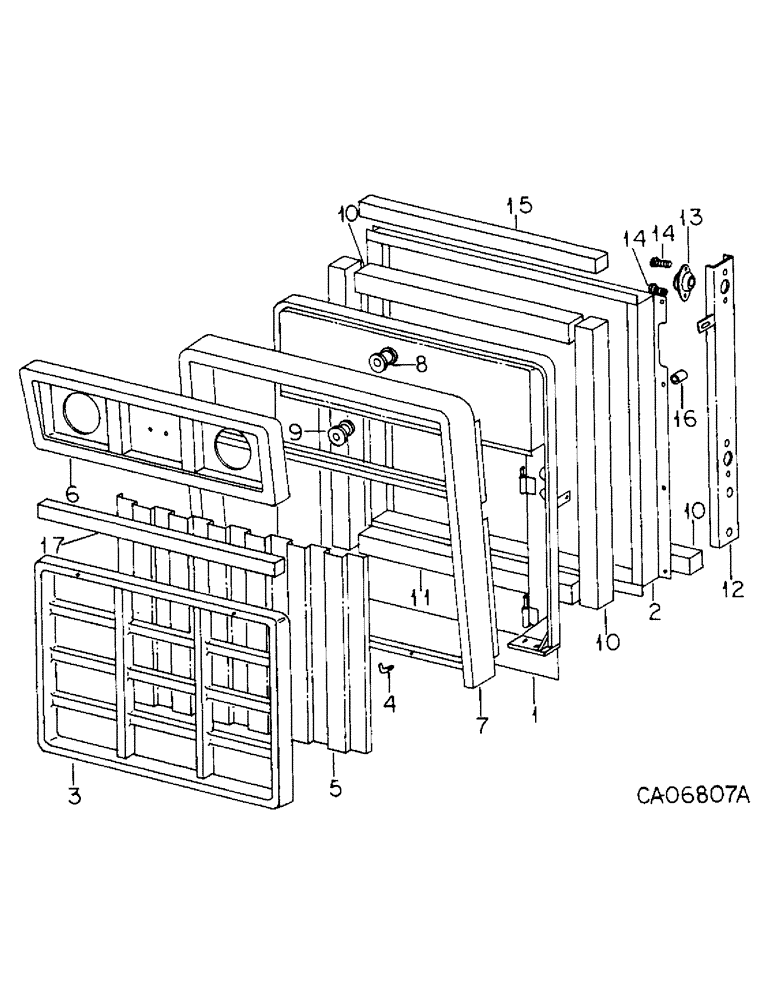

Запчасти Case IH 4786 (06-4) - COOLING, GRILLE, SUPPORT, SHUTTER AND SCREEN Cooling

1

104971C3

SHIELD

ASSY, chaff

1шт.

786618C1

NUT

5/16-18 caged

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2 type 5

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

4шт.

70137C1

NUT

SERT, 5/16-18

8шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

8шт.

178550

WASHER, 3/8 ext-int PHC tooth lock

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

2

104981C1

SPACER

ASSY, chaff shield

1шт.

327393R1

GROMMET

shaft shield spacer

2шт.

3

68569C1

GRILLE

ASSY

1шт.

4

68570C1

BOLT,5/16" - 18 x 3.78"

grille mtg bottom

2шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 x 4 type 5

2шт.

69368C1

WASHER

grille rubber

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120376

NUT,5/16"-18, G5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

68571C1

GRILLE

SCREEN, grille

1шт.

6

69356C2

SUPPORT

headlight

1шт.

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW, 1/4-14 x 1 H/HD tap

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

69357C1

FUNNEL

FRAME ASSY, grille

1шт.

8

NOT USED THIS APPLICATION

1шт.

9

70291C1

GROMMET,1" ID x 1 3/8" Groove Dia

large

2шт.

10

GASKET, foam, Use 28 in. from a 4 ft. length marked 73215C1

3шт.

11

GASKET, foam, Use 31.1 in. from a 4 ft. length marked 73215C1

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

8шт.

12

116794C1

SUPPORT ASSY.

SUPPORT ASSY, radiator LH

1шт.

12

116793C1

SUPPORT ASSY.

SUPPORT ASSY, radiator RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

4шт.

13

118860C1

INSULATOR

PLATE ASSY, mounting

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

14

354260R1

SPACER,1/8" Pipe x 7/16"

.269 x .405 x .438

8шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

15

GASKET, foam, use 28.0 in. from 4 ft. length marked 73217C1

1шт.

16

NOT REQUIRED THIS APPLICATION

1шт.

17

GASKET, foam, Use 36 in. from 4 ft length marked 73215C1

1шт.
