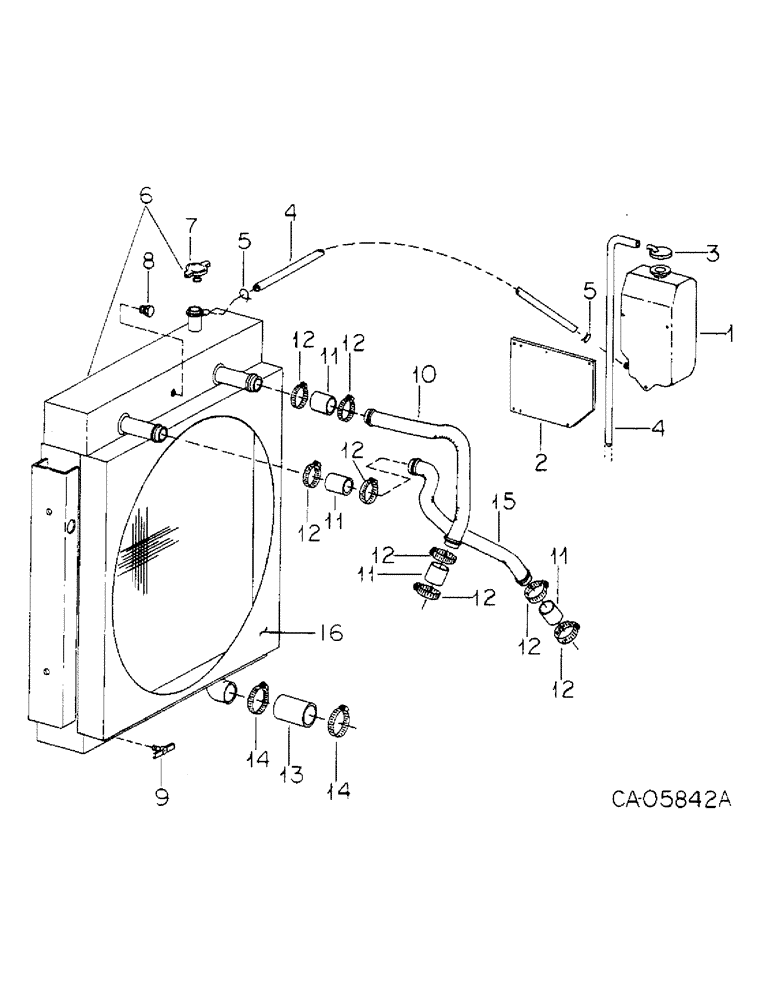

Запчасти Case IH 4786 (06-1) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

437703C1

TANK

reservoir

1шт.

2

132804C3

LARGE PLATE

PLATE, tank reservoir

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

7шт.

120392

WASHER,1/4", SAE

1/4 x 5/8 x .051 znd

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

3

437702C1

CAP

radiator coolant reservoir

1шт.

4

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir 0.31" ID x 34.00"

1шт.

5

70152C1

HOSE CLAMP

CLAMP, hose

3шт.

6

121945C1

RADIATOR

ASSY, Consists of ref nos 7 & 16

1шт.

70291C1

GROMMET,1" ID x 1 3/8" Groove Dia

radiator

2шт.

7

130704C1

CAP

ASSY, radiator pressure

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

103647

VALVE

COCK, 1/4 NPT radiator drain

1шт.

10

132753C1

TUBE

radiator upper, RH

1шт.

11

HOSE, tube to radiator and tube to elbow, Use 3 in. from a 36 in. length of hose marked, 407006R1

1шт.

12

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, 2-1/4 OD hose

8шт.

13

HOSE, radiator outlet, Use 7 in. from a 36 in. length of hose marked, 664053C1

1шт.

14

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP, 3-1/2 OD hose

2шт.

15

132754C2

TUBE

radiator upper, LH

1шт.

142165C1

FLUID, caulking compound 11 oz., For sealing radiator 121945C1 & chaff shield spacer 104981C1

1шт.

16

146502C1

SHROUD

radiator fan

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

10шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.
