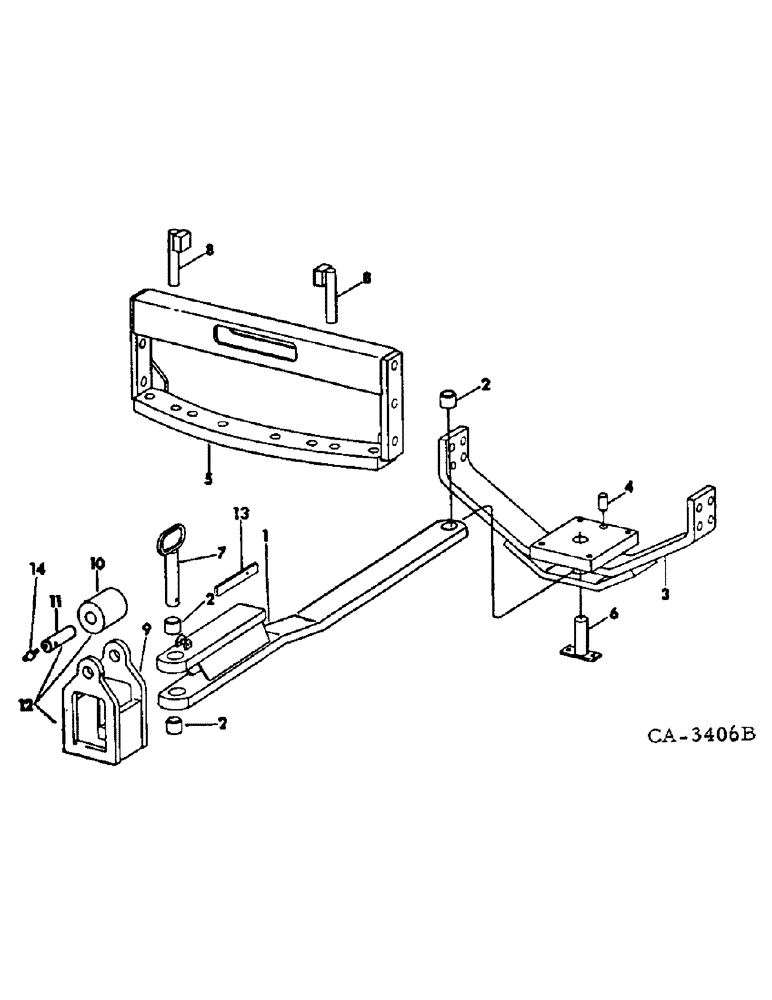

Запчасти Case IH 4786 (09-3) - FRAME, DRAWBAR ASSY (12) - FRAME

1

68586C91

DRAWBAR

ASSY, Consists of ref. no 2

1шт.

2

68587C1

BUSHING

3шт.

3

68588C1

BRACE

SUPPORT ASSY, drawbar

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

4

68589C1

PIN

1 x 1-7/8 dowel drawbar

1шт.

5

68590C1

HANGER

ASSY, drawbar

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

68591C1

AXLE PIN

PIN ASSY, drawbar front

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

2шт.

7

71238C1

PIN

ASSY, drawbar pull

1шт.

8

68593C1

PIN

ASSY, drawbar stop

2шт.

9

68595C1

FORK

YOKE ASSY

1шт.

10

68596C1

DRAWBAR

ROLLER

1шт.

11

68597C1

PIN

roller pivot

1шт.

21329R1

BOLT,1/2" x 4 1/2", Gr 8

1/2 x 4-1/2 type 8

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad lock

1шт.

12

NOT AVAILABLE THIS APPLICATION

1шт.

13

621006C1

PIN

ASSY, link, Used to retain drawbar pin assy 71238C1

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.
