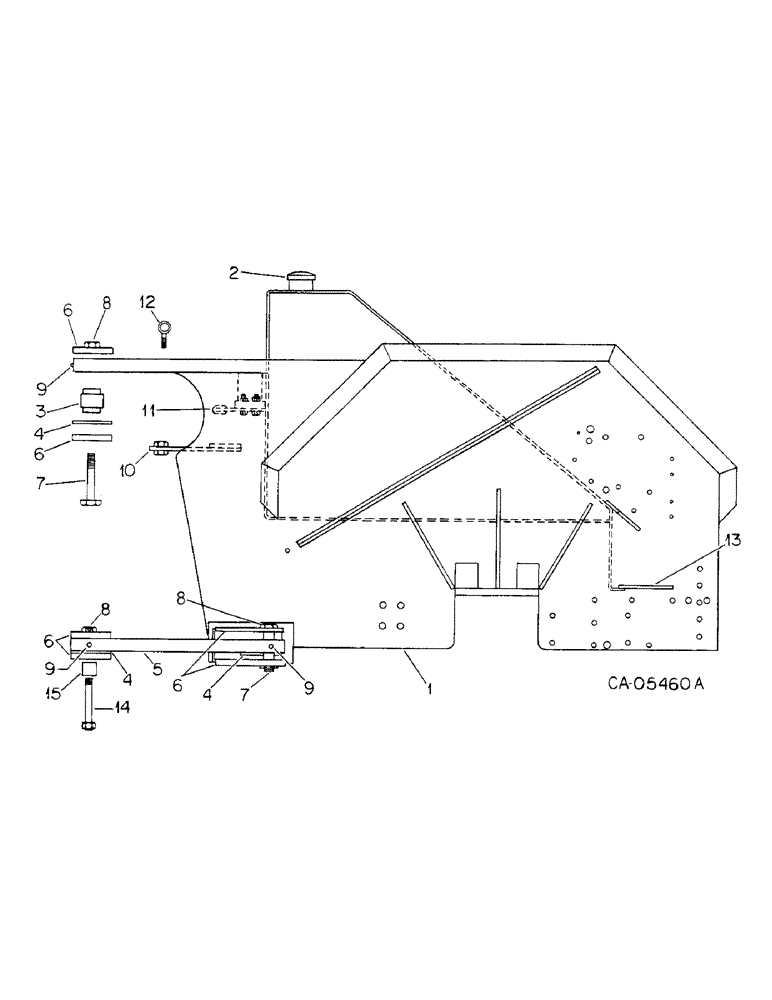

Запчасти Case IH 4786 (09-2) - FRAME, REAR FRAME (12) - FRAME

1

142083C91

FUNNEL

FRAME ASSY, rear w/product graphic, Composed of

1шт.

FRAME (NSS)

1шт.

107663C1

ELECTRICAL GAUGE

GAGE

1шт.

369154R1

GASKET

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

124506C1

DECAL

PRODUCT GRAPHIC, caution inst

1шт.

2

224839C91

CAP

W/GASKET, fuel tank filler, Replaces 361910R91

1шт.

224840C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

cap

1шт.

3

1268752C1

SPHERICAL BEARING

hinge and link, Replaces 68598C3 by also ordering plug 444613

3шт.

4

68599C1

RETAINER

hinge and link brg

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

5

68600C1

LINK

rear frame center

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

68602C1

BOLT (SPREADER),6.50"

BOLT, hinge and link king pin

2шт.

8

68603C1

NUT

king pin bolt

3шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

3шт.

9

FOR444613

PLUG

1/8-27 znp h/hd auto pipe

3шт.

10

104909C1

LINK

ASSY, transfer case rear

1шт.

71180C1

BOLT,3/4" x 2 1/2"

SCREW, 3/4-10 x 3 znd hex-hd cap drilled

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 znd slotted hex

2шт.

11

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

12

142090C1

RING

ASSY, rear hose, Replaces 104959C1

1шт.

13

68606C1

ASSEMBLY

GRATE ASSY

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

31694H

GROMMET

large

2шт.

123548H

GROMMET

small

1шт.

14

68602C1

BOLT (SPREADER),6.50"

BOLT, hinge & link king pin, Serial Range: -2500

1шт.

14

138088C1

BOLT,1 3/4" - 12 x 358mm, W/ Nut

BOLT, hinge & link king pin, Start Serial: 2501

1шт.

15

1250176C1

SPACER

BUSHING, hinge pin bolt spacer, w/o articulation pivot drawbar, Start Serial: 2501

1шт.
