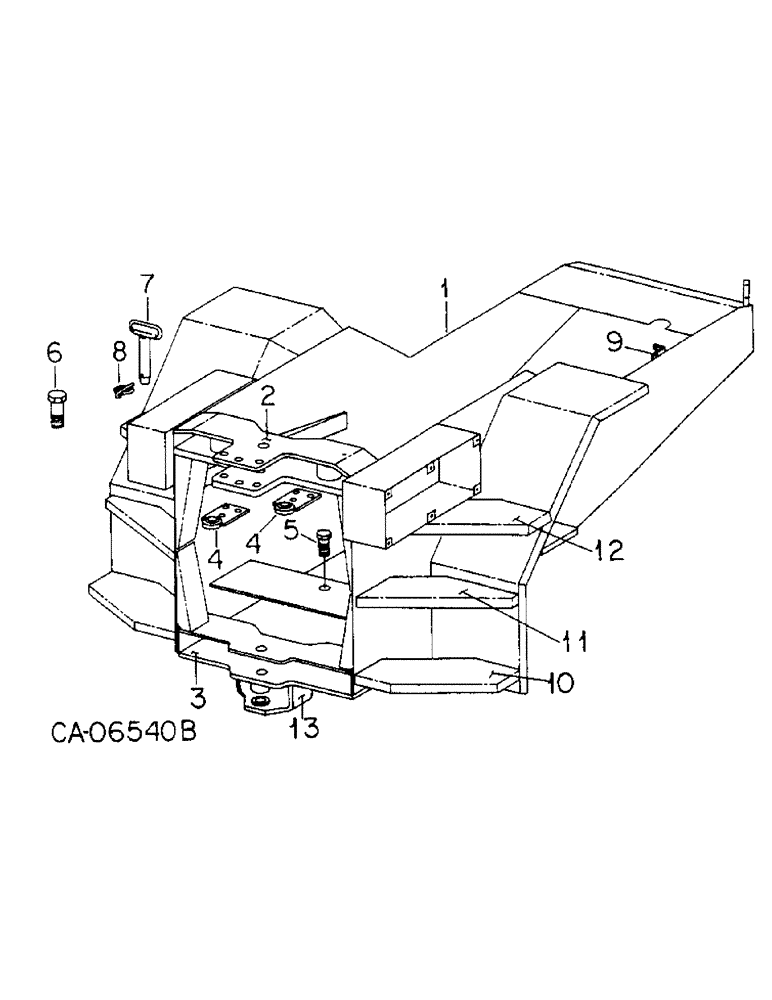

Запчасти Case IH 4786 (09-1) - FRAME, FRONT FRAME (12) - FRAME

1

142081C91

FRAME ASSY

front, Tractors w/serial no. 2500 and below, Consists of ref. nos. 2 and 3

1шт.

1

142277C91

FUNNEL

FRAME ASSY, front w/product graphic, Tractor equipped w/articulation pivot drawbar5, Start Serial: 2501

1шт.

124848C1

DECAL

PRODUCT GRAPHIC, caution inst.

1шт.

2

129049C1

LARGE PLATE

PLATE ASSY, top hinge

1шт.

3

129050C1

POWER ARM

LINK ASSY, lower hinge

1шт.

4

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

5

463154R2

BOLT

BOLT, lower transfer case mount

1шт.

6

70188C1

BOLT (SPREADER),1"-14 x 5.62"

BOLT, top transfer case mt

1шт.

272338

NUT

1-NF slt-thick type 5

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

7

104962C1

PIN

ASSY, lock

1шт.

8

392181R91

PIN

ASSY

1шт.

9

NOT USED WITH APPLICATION

1шт.

10

129286C1

STEP

bottom LH

1шт.

10

129308C1

STEP

bottom RH

1шт.

11

129287C1

STEP

middle LH

1шт.

11

129309C1

STEP

middle RH

1шт.

12

129288C1

STEP

top LH

1шт.

12

129310C1

STEP

top RH

1шт.

13

138075C1

LARGE PLATE

PLATE ASSY, drawbar frt pivot

1шт.
