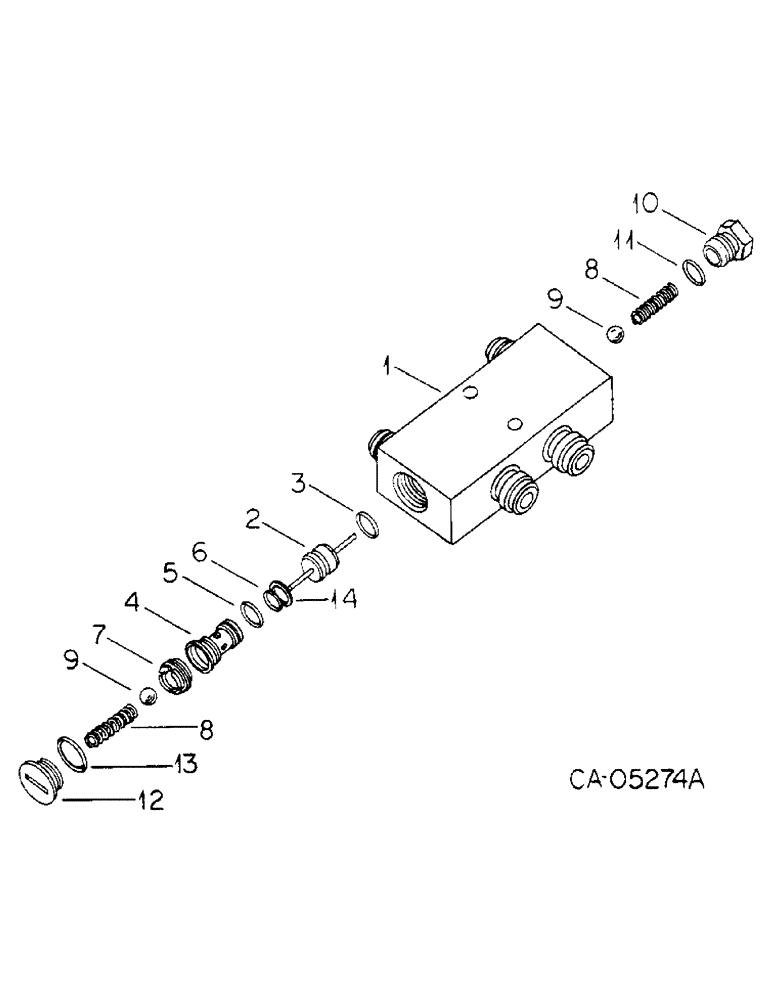

Запчасти Case IH 4786 (10-26) - HYDRAULICS, ALTERNATING CHECK VALVE (07) - HYDRAULICS

142864C95

VALVE

ASSY, alternating check, Replaces 138167C91

1шт.

1

BLOCK ASSY, check valve

1шт.

Not serviced separately, order check valve assy.

1шт.

2

PISTON ASSY, alternating check

1шт.

Not serviced separately, order check valve assy.

1шт.

3

O-RING, 5/8 x 13/16 x 3/32, Piston

1шт.

Not serviced separately, order check valve assy.

1шт.

4

RETAINER ASSY, check valve ball

1шт.

Not serviced separately, order check valve assy.

1шт.

5

O-RING, 3/4 x 7/8 x 1/16, Ball retainer large

1шт.

6

O-RING, 11/16 x 13/16 x 1/16, Ball retainer small

1шт.

Not serviced separately, order check valve assy.

1шт.

7

NUT, check valve ball retainer

1шт.

Not serviced separately, order check valve assy.

1шт.

8

SPRING, check valve

2шт.

Not serviced separately, order check valve assy.

1шт.

9

BALL, 1/2 dia. cr-stl

2шт.

Not serviced separately, order check valve assy.

1шт.

10

PLUG, centering spring

1шт.

Not serviced separately, order check valve assy.

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

12

PLUG, check valve

1шт.

Not serviced separately, order check valve assy.

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

1шт.

14

SEAL, teflon

1шт.

Not serviced separately, order check valve assy.

1шт.
