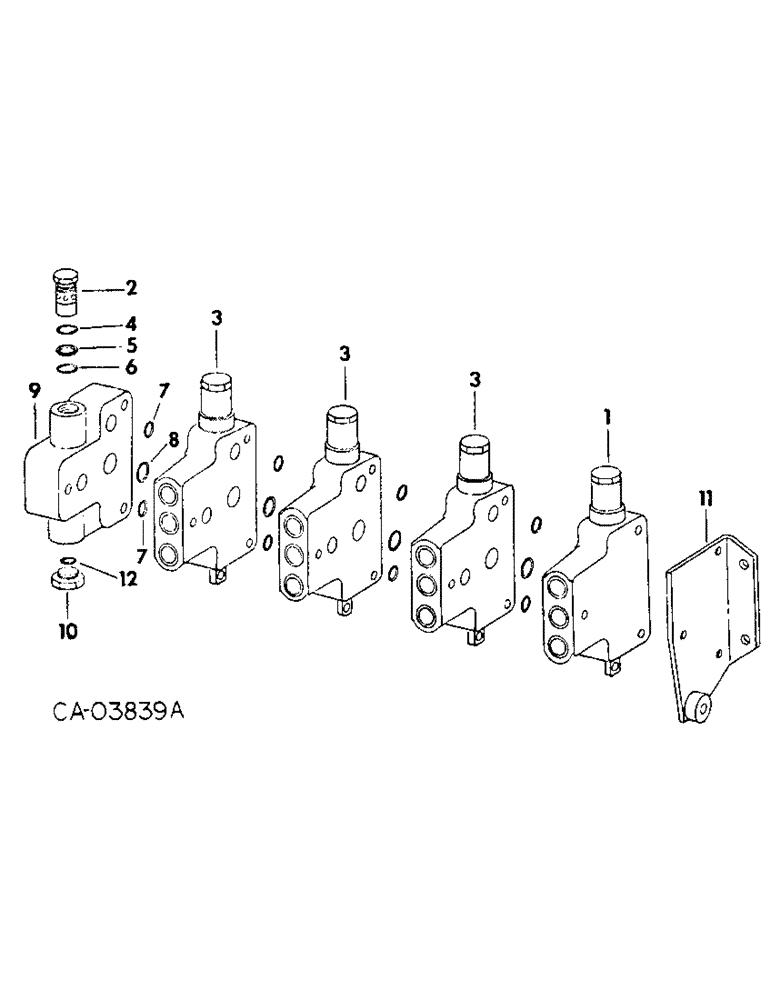

Запчасти Case IH 4786 (10-19) - HYDRAULICS, VALVE BANK ASSEMBLY (07) - HYDRAULICS

1

529911R93

LOCK VALVE

VALVE ASSY, hydraulic control, One closed end, For components see list of parts under details of hydraulic control valve

1шт.

2

388208R93

VALVE

ASSY, 2000 PSI pilot relief

1шт.

3

529910R93

LOCK VALVE

VALVE ASSY, hydraulic control, Open on both ends, For components see list of parts under details of hydraulic control valve, 1 used w/two valve bank assy, 2 used w/three valve bank assy, 3 used w/ four valve bank assy

1шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, Pilot relief valve

1шт.

5

378985R2

BACK-UP RING

relief valve back-up

1шт.

6

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, Pilot relief valve

1шт.

102635

NUT,3/8"-16, G5

3шт.

527476R1

WASHER

3шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, two valve bank assy

4шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32,three valve bank assy

6шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, four valve bank assy

8шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, two valve bank assy

2шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, three valve bank assy

3шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, four valve bank assy

4шт.

9

391217R1

COVER, valve end

1шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

SCREW, 3/8-16 x 7 hex-hd cap type 8, Two valve bank assy

3шт.

25947R1

BOLT,3/8" x 9", Gr 8

SCREW, 3/8-16 x 9 hex-hd cap type 8, Three valve bank assy

3шт.

26961R1

BOLT

3/8-16 x 11 hex-hd cap type 8, Four valve bank assy

3шт.

10

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 znd str thd o-ring boss, Valve cover

1шт.

11

67930C1

BRACKET

ASSY, valve mounting

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube fitting

1шт.
