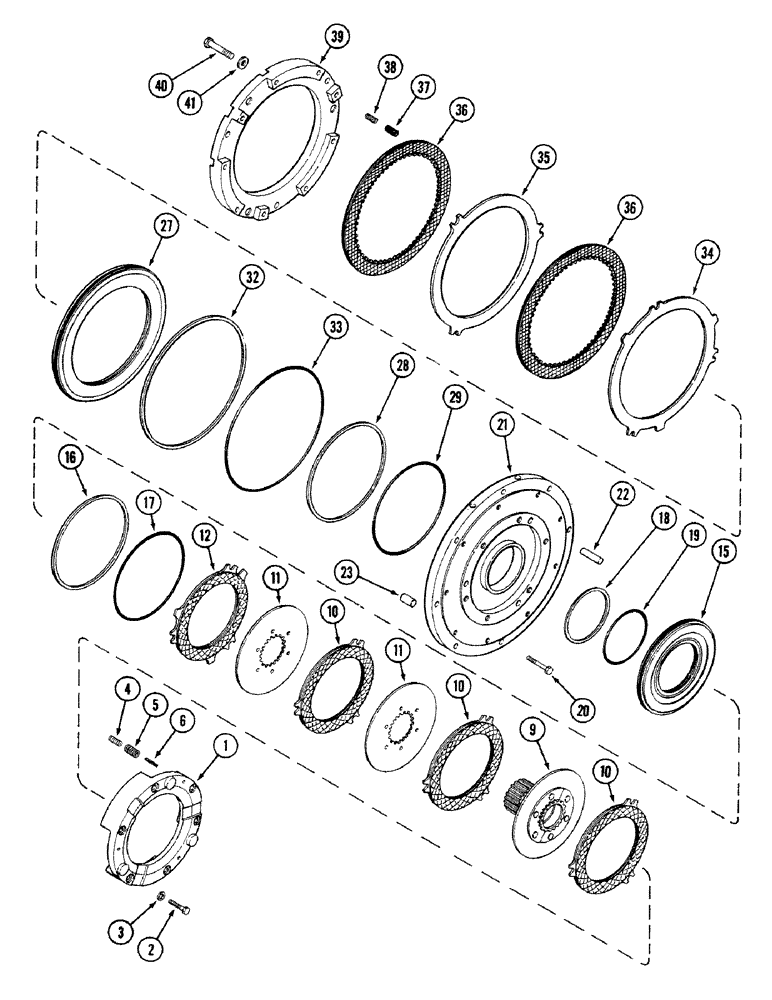

Запчасти Case IH 4694 (6-164) - TRANSMISSION CLUTCH ASSEMBLY, (C1) AND (C4) CLUTCHES, TRANSMISSION SERIAL NO. 16258468 AND AFTER (06) - POWER TRAIN

1

A156921

PLATE

- reaction, (C1) clutch

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Grade 8)

6шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

7шт.

4

A142613

SPRING

- return, 23/64 (9 MM) diameter x 1-1/4 inch (32 MM) free length

3шт.

5

A142612

SPRING

- return, 9/16 (14 MM) diameter x 1-1/4 inch (32 MM) free length

3шт.

6

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

9

A168203

PLATE

GEAR ASSEMBLY - sun, (C1) clutch (Includes clutch plate)

1шт.

10

A168483

PLATE

- friction, (C1) clutch

3шт.

11

A182507

PLATE

- steel, (C1) clutch

2шт.

12

A168484

PLATE

- friction, with tab, (C1) clutch

1шт.

15

A146670

PISTON

- (C1) clutch

1шт.

16

A146682

RING

- external seal 8-1/4 inch (210 MM) ID

1шт.

See Figure 6-170 for seal kit.

1шт.

17

A150753

O-RING,7.84" ID x 0.107"

- external seal, 1-1/4 inch (197 MM) ID

1шт.

See Figure 6-170 for seal kit.

1шт.

18

A146683

RING

- internal seal, 4-1/2 inch (108 MM) OD

1шт.

See Figure 6-170 for seal kit.

1шт.

19

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 5 inch (127 MM) OD

1шт.

See Figure 6-170 for seal kit.

1шт.

20

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

8шт.

A179343

CARRIER

ASSEMBLY - piston, (C1) and (C4) clutch, Includes: Ref. 21

1шт.

21

A148971

CARRIER

- piston, (C1) and (C4) clutch

1шт.

22

A75102

PIN,12.45mm OD x 50.8mm L

- clutch plate, 1/2 x 2 inch (13 x 51 MM)

3шт.

23

A65555

PIN

- clutch plate, 1/2 x 1-37/64 inch (913 x 40 MM)

3шт.

27

A146671

PISTON

- (C4) clutch

1шт.

28

A146681

SEAL

- internal seal, 9 inch (229 MM) (OD

1шт.

See Figure 6-170 for seal kit.

1шт.

29

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, 9-1/4 inch (235 MM) OD

1шт.

See Figure 6-170 for seal kit.

1шт.

32

A146680

RING

- external seal, 12-1/2 inch (318 MM) ID

1шт.

See Figure 6-170 for seal kit.

1шт.

33

A150751

O-RING,12.09" ID x 0.107"

- external seal, 11-3/4 inch (298 MM) ID

1шт.

See Figure 6-170 for seal kit.

1шт.

34

A58056

PLATE

- steel with tabs, (C4) clutch

1шт.

35

A75105

PLATE

- steel, (C4) clutch

1шт.

36

A67128

PLATE

- friction, (C4) clutch

2шт.

37

A62606

SPRING

- return, 9/16 (14 MM) diameter x 1-3/32 inch (28 MM) free length

3шт.

38

A142613

SPRING

- return, 23/64 (9 MM) diameter x 1-1/4 inch (32 MM) free length

3шт.

39

A156213

PLATE

- reaction, (C4) clutch

1шт.

40

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

41

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

9шт.

A168300

CLUTCH

ASSEMBLY - power shift and planetary (Complete Unit), Includes: parts on this figure and parts on Figures 6-160, 6-168, 6-172 and 6-176

1шт.
