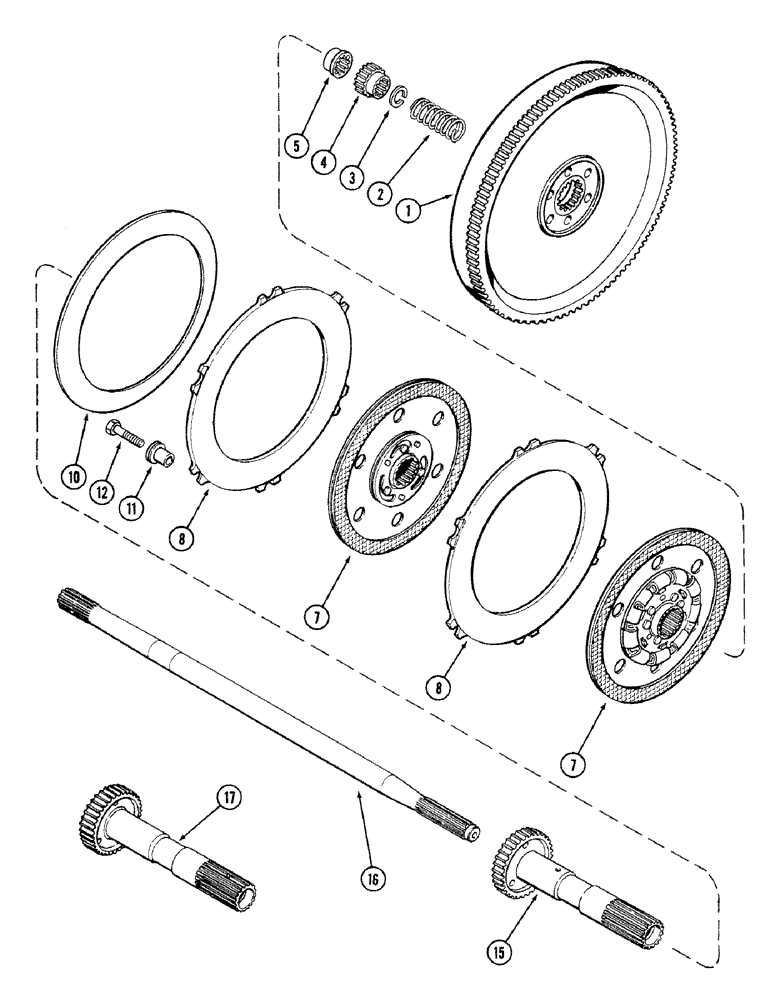

Запчасти Case IH 4694 (6-160) - TRANSMISSION CLUTCH ASSEMBLY, TORQUE LIMITER (06) - POWER TRAIN

1

REF

INSTRUCTION

FLYWHEEL ASSEMBLY - engine (See Figure 2-038)

1шт.

2

A65416

SPRING

SPRING - drive sleeve, PTO shaft

1шт.

3

A76480

RING

RING - snap, drive shaft

1шт.

4

A66610

SLEEVE

SLEEVE - pump drive shaft

1шт.

5

A76482

BUSHING,20T

BUSHING - pump drive shaft

1шт.

7

A157381

PLATE

PLATE - torque limiter, 11-7/8 inch (302 MM) diameter

2шт.

7

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate

2шт.

7

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.

8

A155859

PLATE

PLATE - pressure, with tabs

2шт.

10

A61000

SPRING

SPRING - Belleville (Replaces A64370)

1шт.

11

A155865

RETAINER

RETAINER - spring

6шт.

12

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

BOLT - hex, 1/2 NC x 2-1/2 inch (Grade 8)

6шт.

15

A148695

SHAFT

SHAFT - input gear

1шт.

Prior to transmission serial no. 16258468.

1шт.

16

A76488

SHAFT

SHAFT - PTO and pump drive

1шт.

17

A168992

SHAFT

SHAFT - input gear

1шт.

Transmission serial no. 16258468 and after.

1шт.

A168300

CLUTCH

CLUTCH ASSEMBLY - power shift (Complete Unit), Includes: Ref. 16 and 17 in this figure and parts listed on Figures 6-164, 6-168, 6-172 and 6-176

1шт.

Transmission serial no. 16258468 and after.

1шт.

A153170

CLUTCH

CLUTCH ASSEMBLY - power shift and planetary (Complete unit), Includes: Ref. 15 and 16 in this figure and parts on Figures 6-162, 6-166, 6-170 and 6-174

1шт.

Prior to transmission serial no. 16258468.

1шт.
