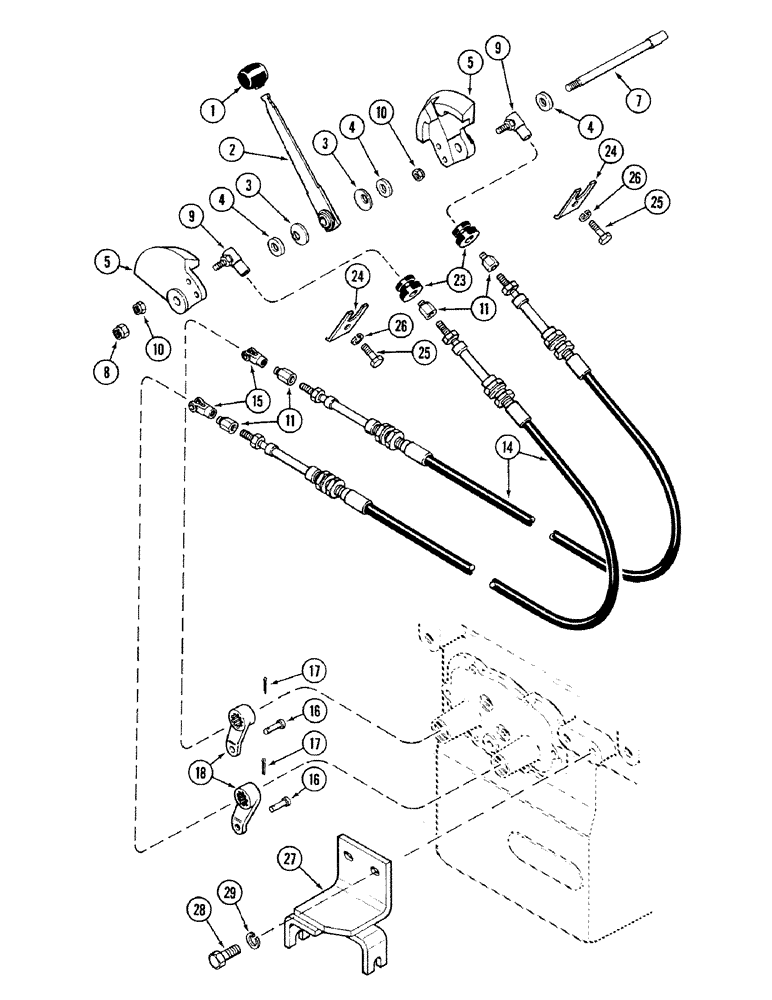

Запчасти Case IH 4694 (6-150) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A177436

KNOB

- hand lever (Replaces A167956)

1шт.

2

A137857

LEVER

- control

1шт.

3

A59662

WASHER

- beveled

2шт.

4

A60367

SPACER

- quadrant

3шт.

5

A143835

QUADRANT

ASSEMBLY - range shift

2шт.

7

A169040

SHAFT

- control lever and quadrant

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC

1шт.

9

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, Serial Range: cable-quadrant

2шт.

10

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC

2шт.

11

A185485

FITTING

ADAPTER - cable

4шт.

14

A176156

CABLE

- range control (Replaces A145335)

2шт.

15

T40057

YOKE

- control, Serial Range: cable-lever

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

18

A153022

LEVER

- outer, shift linkage

2шт.

23

A180137

GROMMET

- firewall, control cable (Replaces A152513)

2шт.

24

A152516

BRACKET

- grommet clamp

2шт.

25

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

A185559

BRACKET

BULKHEAD - control cable (Replaces A161220)

1шт.

28

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

29

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
