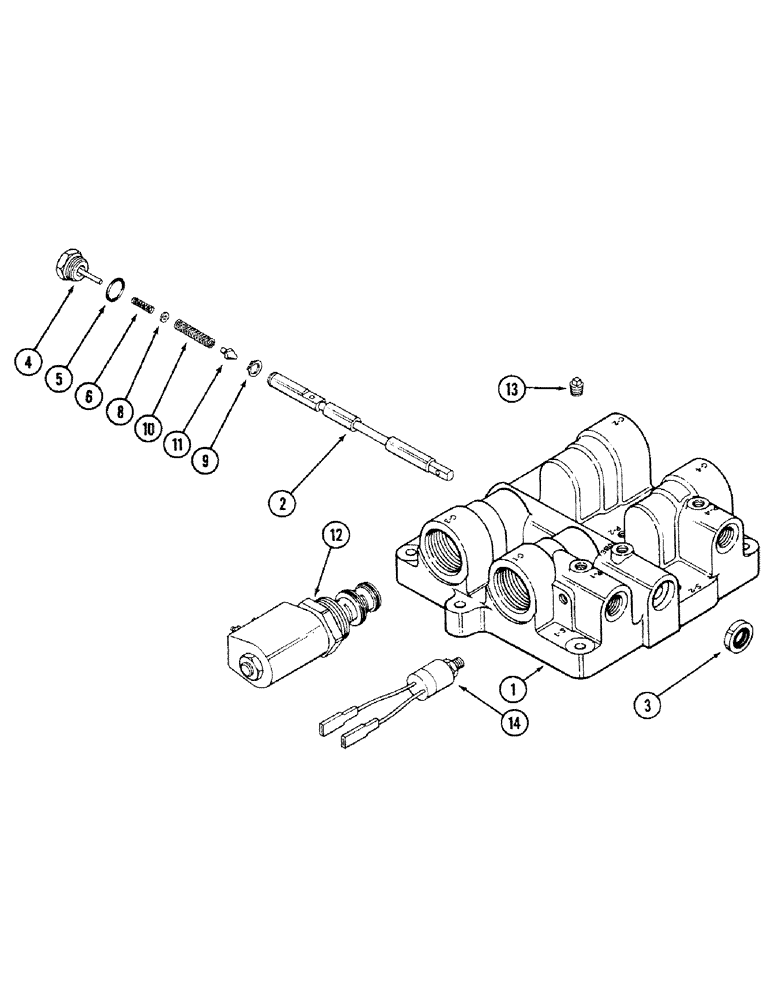

Запчасти Case IH 4694 (6-148) - HYDRAULIC MANIFOLD, ELECTRIC SHIFT (06) - POWER TRAIN

A157795

MANIFOLD

ASSEMBLY - electric shift, Includes: Ref. 1 - 14 and solenoid ground harness

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - electric shift (Reference no. A157775)

1шт.

2

A151914

SPOOL

- master clutch valve

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- valve spool

1шт.

4

A61985

PLUG

ASSEMBLY - modulator, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

6

A61988

SPRING

- clutch modulator

1шт.

8

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

9

G46176

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

1шт.

A60155

SPRING

POINT AND SPRING ASSEMBLY, Includes: Ref. 10 and 11

1шт.

10

A61990

SPRING

- primary, modulator (Order A60155)

1шт.

11

A61991

POINT

- modulator

1шт.

12

A160899

VALVE

SOLENOID ASSEMBLY - electric shift (See Figure 6-144)

4шт.

13

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - squre head, 1/8 inch PT

5шт.

14

A156555

SWITCH

- electric shift, 100 to 140 PSI (690 to 965 kPa)

3шт.

A157990

HARNESS

- solenoid ground (Not shown)

1шт.
