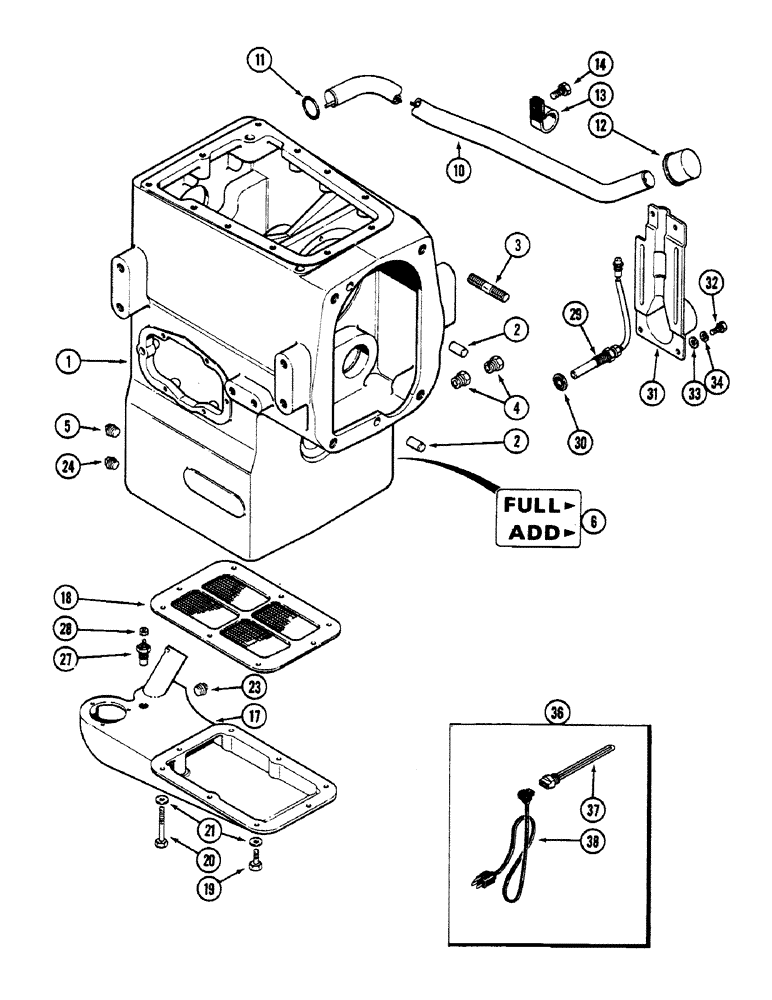

Запчасти Case IH 4694 (6-142) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A157248

HOUSING

- transmission

1шт.

Prior to transmission serial no. 16258468.

1шт.

1

A168420

HOUSING

- transmission

1шт.

Transmission serial no. 16258468 and after.

1шт.

2

A28269

PIN

- dowel, 3/4 x 1-1/4 inch (19 x 32 MM)

2шт.

3

A151866

STUD

- clutch housing, 7/8 NF x 4 inch

4шт.

4

A156111

GAUGE

- sight, oil level

2шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 inch PT

1шт.

6

321-2470

DECAL

- oil level

1шт.

10

A157267

TUBE

- filler, transmission oil

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- tube

1шт.

12

A27973

CAP

- breather

1шт.

13

49773

CLAMP

- tube

1шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

17

A153931

COVER

- bottom, transmission housing

1шт.

18

A140228

FILTER SCREEN

SCREEN - bottom

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

20

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

21

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, 3/4 inch (19 MM)

8шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- square head, drain, 1/2 inch PT

1шт.

24

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT (With no PTO)

1шт.

27

A154283

SWITCH

- sender, transmission oil temperature

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- hex, wire, no. 10-32 Keps

1шт.

29

A156902

SENSOR

- transmission speed

1шт.

30

A75995

SEAL

- thread, transmission speed sensor

1шт.

31

A164789

COVER ASSY

COVER - transmission speed sensor

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

33

145-525

WASHER - flat, 13/32 x 13/16 x 3/32 inch (10 x 21 x 2 MM)

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

A164503

HEATER ASSY.

HEATER KIT - transmission oil, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

38

A48171

HARNESS

CORD - heater element, 60 inch (1524 MM)

1шт.
