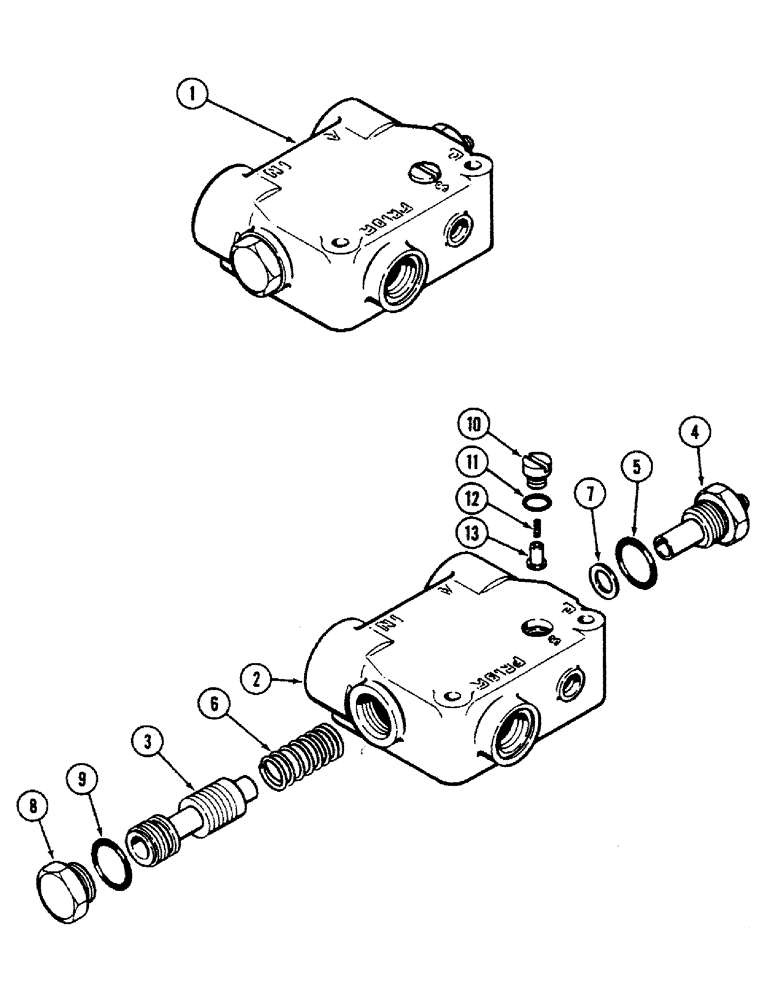

Запчасти Case IH 4694 (5-134) - REAR STEERING PRIORITY VALVE (05) - STEERING

AR145582

REMAN-HYD VALVE

VALVE ASSEMBLY - priority, flow control, remanufactured

1шт.

AC145582

CORE-VALVE HYD

RETURN NUMBER - use this part no. to return valve core for credit

1шт.

1

A145582

VALVE

ASSEMBLY - priority, flow control, new, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A145582)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145582)

1шт.

4

A47475

VALVE

ASSEMBLY - relief, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 13/16 ID x 3/32 inch width (21 ID x 2 MM width) (Order A47478)

1шт.

6

A47477

SPRING

- relief, 27/32 OD x 2 inch free length (21 x 51 MM)

1шт.

7

A47476

SHIM,.010" Thk

Relief spring (0.254 mm) .010" Thk

1шт.

7

H162974

SHIM,.015" Thk

Relief spring (0.323 mm) .015" Thk

1шт.

7

H746172

SHIM,.030" Thk

Relief spring (0.762 mm) .030" Thk

1шт.

7

F8236

SHIM

- relief spring, 0.065 inch (1.593 MM)

1шт.

8

A47429

PLUG

ASSEMBLY - spool, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 13/16 ID x 3/32 inch width (21 x 2 MM width) (Order A47478)

1шт.

10

H229203

PLUG

- poppet spring

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - poppet plug (Order A47478)

1шт.

12

673625R1

SPRING

- check poppet, 5/32 OD x 1/2 inch free length (4 x 13 MM)

1шт.

13

F36081

VALVE POPPET

POPPET - check

1шт.

A47478

KIT

- repair (Includes ref 5, 9 and 11)

1шт.
